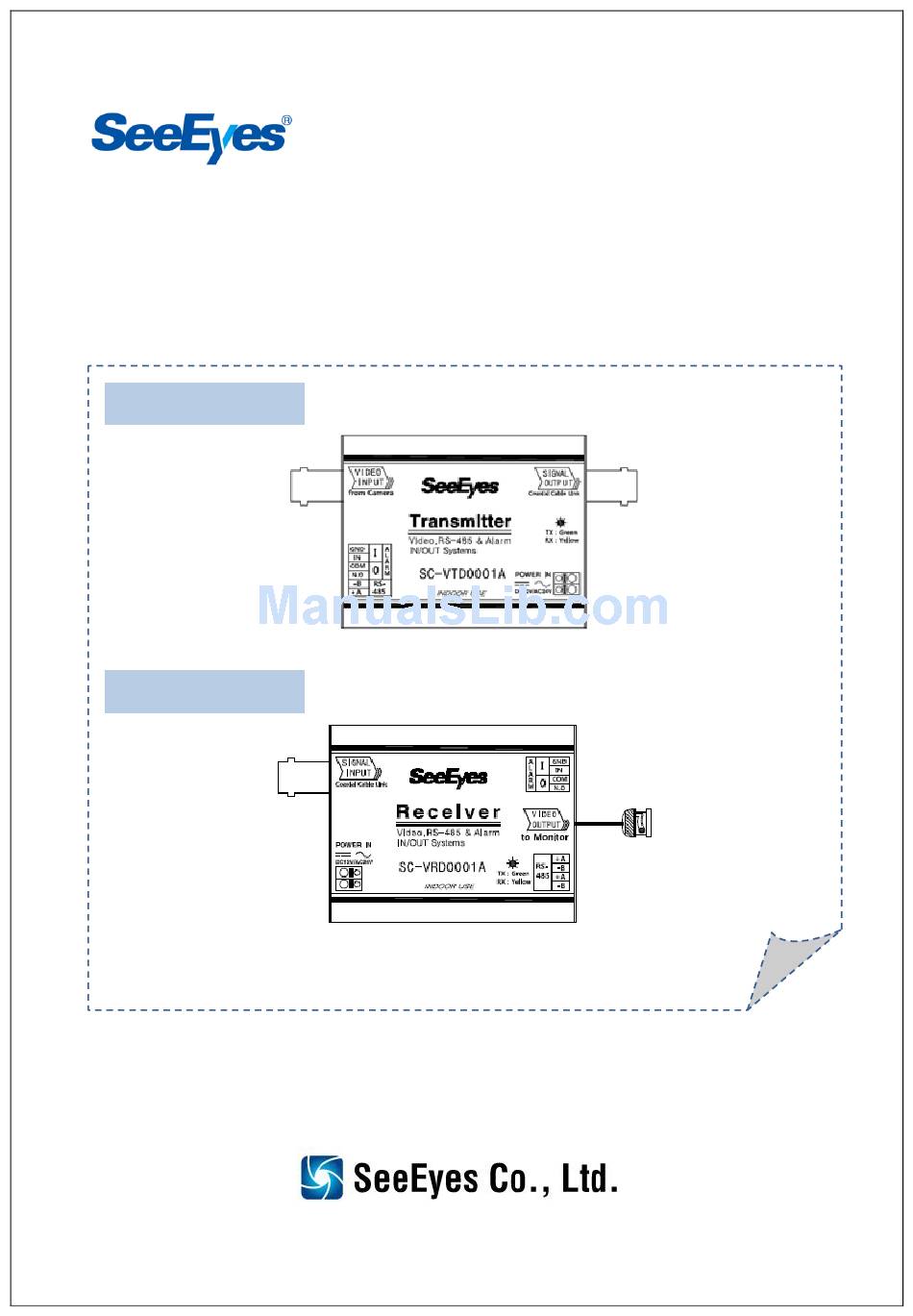

- Page 1 VIDEO-DATA TRANSMISSION OVER SINGLE COAX CABLE SC-VCD0001A (SC-VTD0001A + SC-VRD0001A) User's Manual SC-VTD0001A SC-VRD0001A...
- Page 2 Precaution and Safety Guidelines Thank you for purchasing our product. Please read this manual carefully and fully understand the portions of the installation and operation instructions prior to installing and using the product. Should you have any part of them not understandable or if you have any problem during your installation or in using it, please contact us.
-
Page 3: Connection Diagram
1. Overview It is the new & easy way to install video surveillance system with the various benefits such as the long distance transmission, interference isolation, CCTV video signal + RS-485 data transmission over the typical coaxial cable. 2. Features “Video + Data”... - Page 4 5. How to Connect and LED Indicators 5.1 Connection Port & LED Indicator of SC-VTD0001A Please connect the SC-VTD0001A, transmitter, to the correspondent devices as follows. ① Video In ⑤Video ②RS-485 ⑥ LED Indicator ③ Alarm ⑦ Adapter (power input) ④...
- Page 5 Connection Port & LED Indicator of SC-VRD0001A Please connect the SC-VRD0001A, receiver, to the correspondent devices as follows ④ ① ⑤ ② ⑥ ③ ⑦ ① Video Input: connect to the transmitter via the coaxial cable ②...
-
Page 6: Specifications
6. Specifications MODEL SC-VTD0001A (Transmitter) Video IN CVBS 1.0Vp-p, 75Ω Term. Transmission Bandwidth 8MHz Data LED Tx: Green/ Rx: Yellow Transmission Distance Max. 1 km (with RG-6) Video IN: BNC-F Video OUT: BNC-F Connection Port DATA: RS-485/ Half Duplex, T. Block Alarm In/Out: Input 1CH/ Output 1CH Power... -
Page 7: Warranty Certificate
8. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide 12 months warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period One (1) year from the date of purchase Name Purchaser Address...
