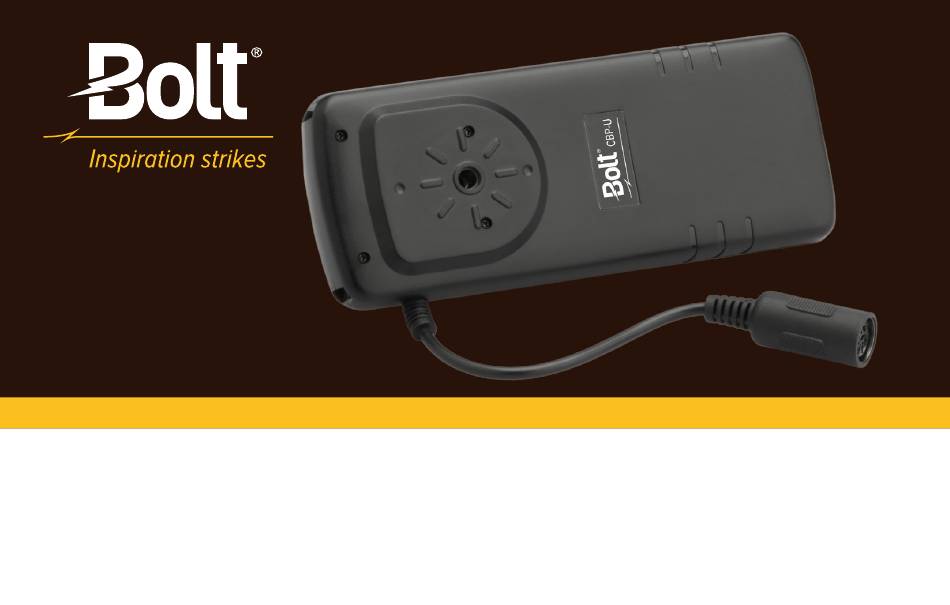

- Page 1 UNIVERSAL COMPACT BATTERY PACK For Hot-Shoe Flashes User Manual...
- Page 2 Thank you for choosing Bolt. The Bolt Universal Compact Battery Pack increases your flash count and boosts the recycle speed of your flash. It offers a compact design with universal attachment to the most popular flash brands and operates with a range of AA batteries, making it easy and convenient to use.
- Page 3 Battery Warnings • Always follow the warnings and instructions printed • High temperatures can cause some battery types to on the batteries to avoid activities that could cause drain more quickly. the batteries to leak corrosive liquid, generate heat, or explode. •...
- Page 4 Overview Compact Battery Pack Shoulder strap holes Mounting screw passthrough Flash connection cable Flash cable connector Status LED Battery compartment CBP -U / Unive rsal Comp act Batte ry Pack • Do not attem pt to disas semb le or repa ir this prod uct yours Battery compartment cover Doin g so can prod uce...
- Page 5 Soft Case Cable strap Bottom snap closure Battery strap Belt strap Top touch-fastener support Flash Power Cords (Sold Separately) CBP-UC: Canon CBP-UN: Nikon CBP-US: Sony Overview...
-
Page 6: Battery Installation
Battery Installation The versatile Universal Compact Battery Pack can be used with three AA battery types: • Alkaline (1.5 V) • Lithium (1.5 V) • Nickel-metal hydride (NiMH) (1.2 V) Using eight batteries will enable faster flash recycle times. To install batteries, unplug the battery pack from your flash unit and follow these steps: 1. - Page 7 2. Insert four or eight batteries in the open battery bays, making sure the polarity is in the right orientation, and that each set of four batteries is installed as shown. 3. Slide the cover back over the battery compartment until secure. Important! Replace all batteries at the same time.
- Page 8 Connecting to Your Flash Align the flash cable connector with the separate flash power cord to connect them. Then plug the other end of the flash power cord into your flash. Make sure the connector is correctly aligned with the pins and alignment grooves on the power port.
- Page 9 Important! • The connectors should easily attach. Forcing a connector can damage both your flash and the Compact Battery Pack connector. • Batteries must be installed in the flash before you connect it to the Universal Compact Battery Pack. Most flash units require batteries to be installed in order to operate.
- Page 10 Mounting and Carrying Your Compact Battery Pack The Compact Battery Pack comes with a soft case and mounting screw that make it convenient and unobtrusive to use. Using the soft case Wear the Compact Battery Pack on your belt for better distribution of weight. Make sure the pack is correctly oriented in the soft case, so the status LEDs are visible through the small openings at the top.
- Page 11 1. Insert the mounting screw into the passthrough of the battery pack. Rotate clockwise until it comes through the other side. 2. Place the rubber washer over the mounting screw. 3. Insert the mounting screw into your camera’s tripod socket and rotate until the pack is firmly attached to the camera.
-
Page 12: Troubleshooting
Troubleshooting Problem Solution The Compact Battery Pack has fresh Most flash units require AA batteries for the display and functions to operate. batteries installed and is connected to a Make sure you have AA batteries installed in the flash unit. flash unit, but the indicator light does not turn on. -
Page 13: Specifications
Dimensions (W × H × D): 6.9 × 2.8 × 1.1 in. (17.7 × 7.1 × 2.8 cm) Weight: 5.5 oz. (156 g) without batteries Testing Information Power Cord CBP-UC CBP-UN CBP-US Flash Unit Tested Canon 600EX-RT Nikon SB-900 Sony HVL-F58AM Fastest Recycle Time with 4 ×... -
Page 14: One-Year Limited Warranty
One-Year Limited Warranty This Bolt product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. - Page 15 To obtain warranty coverage, contact the Bolt Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Bolt along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
