Crown
AC140
User Manual (1-Pack)
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CROWN AC140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InWin CROWN AC140

Summary of Contents for InWin CROWN AC140

  • Page 1 Crown AC140 User Manual (1-Pack) English...

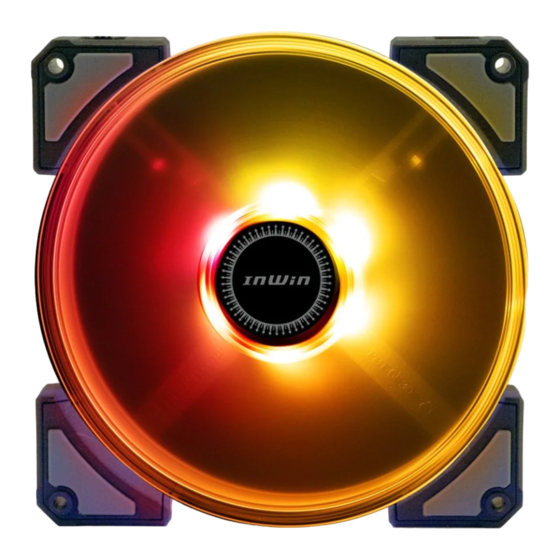

  • Page 2 Product Story InWin’ s first 140mm case fan, CROWN AC140 inherits the technical marvels of InWin’ s previous models. Saturated, addressable RGB lighting effects and our patented modular design makes this beautiful static pressure fan simple to install. CROWN AC140 possesses innovative features to...

  • Page 3: Package Contents

    Package Contents 1. CROWN AC140 Fan x 1 2. Screws x 4 3. Addressable RGB LED Y-Cable (Connect Motherboard to Fan) 800mm x 1 4. 6-6 Pin Long Connecting Wire (Connect Fan to Fan) 1000mm x 1 5. 6-6 Pin Short Connecting Wire (Connect Fan to Fan) 100mm x 1 6.

  • Page 4: Installation

    Installation 1. Please make sure the power is off. 2. Install the fans in your PC case, and screw it in the designated areas. 3. Use Addressable RGB Y-Cable to connect the fan and the motherboard. Please use ADD 3-Pin connector to an ADD RGB header, and 4-pin fan connector to a fan header on the motherboard.

  • Page 5: Troubleshooting

    5. If you are adding more CROWN fans, please start from step 4 to chain with the other fans. (*When connecting more than 5 fans, please use another Addressable RGB Y-Cable to connect the 6 or more fans.) Troubleshooting If your fan does not operate properly, please follow the instructions below: 1.
  • Page 6 3. Please do not put anything in the impeller. 4. Please do not modify the wire or the connector provided by InWin. 5. Please do not touch the fan blades when the fan is in operation.

  • Page 7: Specifications

    Specifications Product Name CROWN AC140 Part Number Single Pack - AC140FAN-1PK Twin Pack - AC140FAN-2PK 140 x 140 x 25mm Fan Size Materials PBT, PC Rated Voltage DC 12V Rated Power 2.4W Rated Current 0.2A DC 5V ADD RGB Rated Voltage ADD RGB Rated Power 1.5W...

This manual is also suitable for:

Ac140fan-1pkAc140fan-2pk
