- Page 1 User Manual...

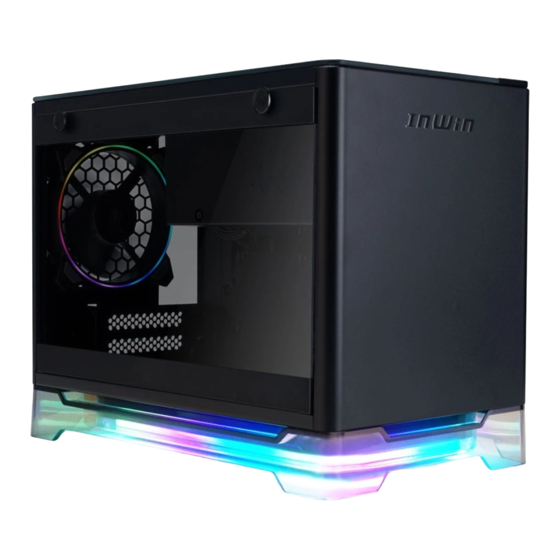

- Page 2 An InWin 750W, 80 PLUS Gold PSU is prebuilt to fulfill the power consumption of the latest graphics card. The A1 Prime black version comes with two Sirius Loop addressable RGB fans, while the white version comes with two Sirius Pure addressable RGB fans.
-
Page 3: Specifications
* Number of fans pre-installed may vary based on different regions. PSII: Intel ATX12V V2.52 Power Supply Compatibility InWin 750W 80 PLUS Gold PSU Pre-installed 343 x 210 x 231 mm Product Dimensions (L x W x H) 13.5" x 8.3" x 9.1"... - Page 4 Dimensions (L x W x H) 140 x 150 x 86mm Warranty 5 Years 20+4 Pin Motherboard 8-Pin CPU Connectors 8 (6+2) Pin PCI-E SATA * InWin products comply with RoHS regulation. * Specifications may vary based on different regions.
- Page 5 Specifications 120 mm 25 mm 120 mm 25 mm Sirius Loop ASL120 Sirius Pure ASP120 Model Sirius Loop ASL120 Sirius Pure ASP120 ASL120FAN-1PK ASP120FAN-1PK Model Number ASL120FAN-3PK ASP120FAN-3PK Colors Black White Fan Size Black Materials 120 x 120 x 25 mm Rated Voltage PC, PBT Rated Power...
-
Page 6: Package Contents
Package Contents A1 Prime Chassis ● InWin 750W 80PLUS Gold PSU ● Fans ASL120 x 2 (for Black version) / ● ASP120 x 2 (for White/Pink version) ARGB One-Click Controller v1.1 ● QR Code Card ● Accessories Bag ●... -
Page 7: Accessories Bag
Accessories Bag a. Hexagon Head Screws X 8 b. 2.5"HDD Screws X 10 c. Graphic Card Holder X 1 d. Anti-Vibration Rubber (Card Holder) x 1 e. Cable Ties X 5 f. Anti-Slip Strips X 4 g. ARGB One-Click Controller v1.1 x 1... - Page 8 Case Structure 1. Tempered Glass 2. Logo 3. SECC Front/ Side Panel 4. Power Button 5. HDD/Power LED indicator 6. USB 3.0 Ports 7. Audio Ports (Earphone and Microphone)
- Page 9 a. 2.5 Drive Bay b. Side Fan Mounting Area c. Rear Fan/ Radiator Mounting Area d. Bottom Fan Mounting Area e. Motherboard Mounting Area f . CPU Cooler Installation Cut-Out Hole g. PCI-E Expansion Slot h. Extra PCI-E Supporting Mounting Hole i.
-
Page 10: Motherboard Installation
Installation Guide Please follow the related chapters to assemble Opening the Chassis For the side panel, please pull the two tool-less tabs and lift up. Motherboard Installation Parts Required: Hexagon Head Screws Expansion Card Installation Parts Required: Hexagon Head Screws, Graphics Card Holder Anti-Vibration Rubber... - Page 11 Installation Guide I/O Wires Installation Switch/LED Connector Blue(P_LED) 1 2 Red (HDD) White(P_LED) 3 4 White (HDD) Brown(P_SW) 5 6 NC White(P_SW) 7 8 NC Key 9 10 NC HD Audio Header USB3.0 Header...
- Page 12 Installation Guide 2.5" Drive Bays Installation Parts Required: 2.5" HDD Screws Fan/ Liquid Cooling Radiator Installation...
- Page 13 Installation Guide Addressable RGB strip and Fans Cables Installation If your motherboard supports the addressable RGB effect, please follow the direction of sign and connect as followed: Bottom ARGB Strip Motherboard's ARGB 3-pin Header Fan 2 ARGB Y-Cable Fan 1 ARGB Y-Cable Motherboard's Fan 4-pin Header...
- Page 14 Installation Guide If your motherboard does not support an addressable header, please use the included ARGB One-Click Controller to connect to your PSU’s SATA cable and the case's ARGB Y-Cable in order to use the 14 different lighting effects. Fan 1 ARGB Y-Cable PSU's SATA cable Bottom ARGB Strip...
- Page 15 Installation Guide Completing Installation Parts Required: Cable Ties...
-
Page 16: Warranty
9. Please avoid unnecessary insertions and extractions to the addressable cable as it may damage the pins. ■ Warranty * For more detailed warranty information, please visit the InWin retail website at www.in-win.com. * The actual product is subject to change without prior notice. - Page 17 Copyright © 2021 In Win Development Inc. All Rights Reserved.
