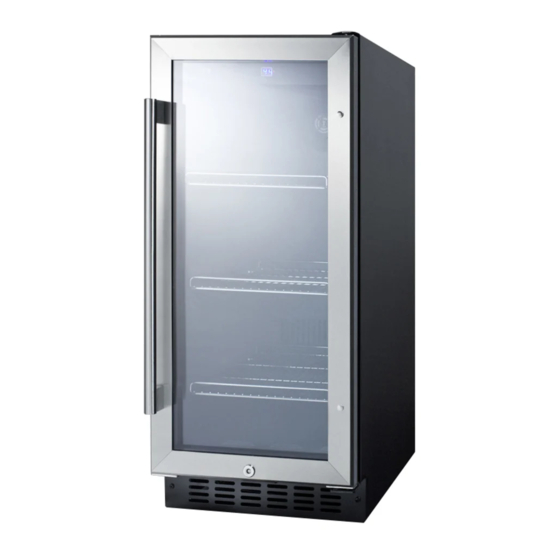

Summit ALBV15 Instruction Manual
  1. Manuals
  2. Brands
  3. Summit Manuals
  4. Merchandiser
  5. ALBV15
  6. Instruction manual

Summit ALBV15 Instruction Manual

Hide thumbs Also See for ALBV15:
Table of Contents

Advertisement

Quick Links

BEVERAGE MERCHANDISER
Model Nos.: ALBV15 / SCR1536B / SCR1536BG / SCR2464 /
SCR1005W / SCR1155W / SCR1400W / SCR1400WLH
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Model and Serial No. (on lower left
corner of inside cabinet) here:
Model:
_______________________________________
Serial No.: _____________________________
INSTRUCTION MANUAL
c
F
Felix Storch, Inc.
Summit Appliance Division
ISO 9001:2015 registered
770 Garrison Avenue
Bronx, NY10474
www.summitappliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALBV15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Summit ALBV15

Summary of Contents for Summit ALBV15

  • Page 1 BEVERAGE MERCHANDISER INSTRUCTION MANUAL Model Nos.: ALBV15 / SCR1536B / SCR1536BG / SCR2464 / SCR1005W / SCR1155W / SCR1400W / SCR1400WLH BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Felix Storch, Inc. Write Model and Serial No. (on lower left...

  • Page 2: Table Of Contents

    Installation of Your Appliance Electrical Connection Extension Cord Reversing the Door Swing of Your Appliance 9-10 Adjusting the Height of the Unit (Only for ALBV15) Adjusting the Kick-plate (Only for ALBV15) Installing the Stainless Steel Handle Operating Your Appliance 10-13...

  • Page 3: Appliance Safety

    APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others.
  • Page 4 parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes. In the event of any damage: - Avoid open flames and anything that creates a spark, - Disconnect from the electrical power line, - Air the room in which the appliance is located for several minutes and - Contact the Service Department for advice.

  • Page 5: Location Of Parts

    LOCATION OF PARTS MODEL ALBV15 Digital Control Panel Door Glass Shelves (3) Handle Security Lock Ventilation Grille Adjustable Legs Cabinet MODELS SCR1536B/SCR1536BG Digital Control Panel Door Shelves (3) Handle Security Lock Ventilation Grille Adjustable Legs Cabinet...
  • Page 6 MODEL SCR2464 Digital Control Panel Door Shelves (3) Handle Security Lock Ventilation Grille Adjustable Legs Cabinet MODEL SCR1005W Condenser Digital Control Panel Door Shelves (4) Handle Security Lock Adjustable Legs Cabinet...
  • Page 7 MODEL SCR1155W Digital Control Panel Door Shelves (4) Handle Security Lock Ventilation Grille Adjustable Legs Cabinet MODELS SCR1400W / SCR1400WLH* Digital Control Panel Door Shelves (6) Handle Security Lock Ventilation Grille Adjustable Legs Cabinet * NOTE: Model SCR1400WLH opens from the right, so handle is on that side.

  • Page 8: Installation Instructions

     Clean the interior surface with lukewarm water using a soft cloth.  Install the handle on the door. (See page 10.) INSTALLATION OF YOUR APPLIANCE  Models ALBV15, SCR1536B/BG, SCR2464, SCR1155W and SCR1400W/LH are designed for either built-in or free-standing installation, while model SCR1005W is suitable for free-standing installation only.

  • Page 9: Extension Cord

    115 volts and at least 10 amperes. REVERSING THE DOOR SWING OF YOUR APPLIANCE (ONLY for ALBV15 / SCR1536B/SCR1536BG/SCR2464) This unit has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side.

  • Page 10: Adjusting The Height Of The Unit (Only For Albv15)

    ADJUSTING THE HEIGHT OF THE UNIT (Only for ALBV15) The height of the ALBV15 can be increased by up to 3” by turning the adjustable legs. Once the desired height has been achieved, the gap between the kick-plate and the floor can be covered by lowering a hidden section of the kick-plate.

  • Page 11: Control Panel

    CONTROL PANEL ON/OFF Power To turn the appliance ON or OFF, touch the symbol and hold for 5 seconds. NOTE: Touching the POWER key once can switch off the audible alarm when the alarm is on. LIGHT Turns the inner light ON and OFF. Used to increase (warm) the set temperature by 1°C/1ºF.

  • Page 12: Sabbath Mode

    SABBATH MODE Sabbath mode is available for the observance of certain religious holidays. This mode turns off the displays, interior light and audible alarms and prevents them from turning on again. Normal cooling operations will still take place. To initiate Sabbath mode, touch the POWER and LIGHT keys at the same time for at least 5 seconds. The indicator light will flash four times and confirm the Sabbath mode is ON.

  • Page 13: Defrosting

    DEFROSTING  The unit defrosts automatically in normal operating conditions.  The evaporator behind the rear wall of the unit defrosts automatically. The condensate collects in the drainage channel behind the rear wall of the unit, and flows through the drainage hole into the drip tray by the compressor where it evaporates.

  • Page 14: Care And Maintenance

    CARE AND MAINTENANCE CLEANING YOUR BEVERAGE MERCHANDISER CAUTION: Failure to unplug the appliance during cleaning could result in electrical shock or other personal injury.  Turn off the power, unplug the appliance, and remove all items, including shelves.  Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of baking soda to a quart of water).

  • Page 15: Troubleshooting

    TROUBLESHOOTING You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. Troubleshooting Guide PROBLEM POSSIBLE CAUSE REMEDY  Appliance is not connected to a power ...
  • Page 16  The gasket is dirty.  Clean the door gasket.  The shelves are out of position.  Check the shelves and refit correctly.  “E0”indicates a communication error for  Call for service. 3-zone models.  “E1” or “E2” indicates that the air Display “E0”, temperature sensor has failed.

  • Page 17: Limited Warranty

    LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
