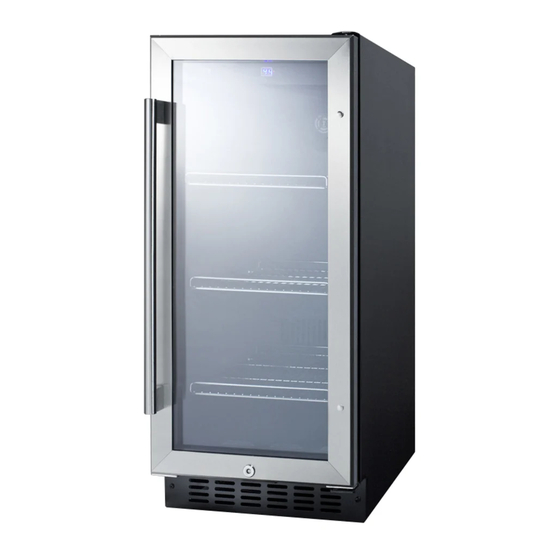

Summit SCR1536BG Instruction Manual

Beverage merchandiser
Hide thumbs Also See for SCR1536BG:
Table of Contents

Advertisement

Quick Links

Download this manual
BEVERAGE MERCHANDISER
Model Nos.: SCR1536B / SCR1536BG / SCR2464 /
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Write Serial No. (on lower left corner of
inside cabinet) here:
____________________________________________
INSTRUCTION MANUAL
SCR1005W / SCR1155W / SCR1400W
c
F
Felix Storch, Inc.
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCR1536BG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Summit SCR1536BG

Summary of Contents for Summit SCR1536BG

  • Page 1 BEVERAGE MERCHANDISER INSTRUCTION MANUAL Model Nos.: SCR1536B / SCR1536BG / SCR2464 / SCR1005W / SCR1155W / SCR1400W BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Serial No. (on lower left corner of Felix Storch, Inc.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Appliance Safety Important Safeguards Location of Parts Installation Instructions 8-10 Before Using Your Appliance Installation of Your Appliance Electrical Connection Extension Cord Reversing the Door Swing of Your Appliance 9-10 Installing the Stainless Steel Handle Operating Your Appliance 10-12 Control Panel 10-11...

  • Page 3: Appliance Safety

    APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. The symbol alerts you to potential hazards that can kill or injure you and others.
  • Page 4 parts of the cooling system are damaged. Leaking coolant can ignite and may damage the eyes. In the event of any damage: - Avoid open flames and anything that creates a spark, - Disconnect from the electrical power line, - Air the room in which the appliance is located for several minutes and - Contact the Service Department for advice.

  • Page 5: Location Of Parts

    LOCATION OF PARTS MODELS SCR1536B / SCR1536BG Digital Control Panel Door Shelves (3) Handle Security Lock Ventilation Grille Adjustable Legs Cabinet MODEL SCR2464 Digital Control Panel Door Shelves (3) Handle Security Lock Ventilation Grille Adjustable Legs Cabinet...
  • Page 6 MODEL SCR1005W Condenser Digital Control Panel Door Shelves (4) Handle Security Lock Adjustable Legs Cabinet MODEL SCR1155W Digital Control Panel Door Shelves (4) Handle Security Lock Ventilation Grille Adjustable Legs Cabinet...
  • Page 7 MODEL SCR1400W Digital Control Panel Door Shelves (6) Handle Security Lock Ventilation Grille Adjustable Legs Cabinet...

  • Page 8: Installation Instructions

    INSTALLATION INSTRUCTIONS BEFORE USING YOUR APPLIANCE • Remove the exterior and interior packing. • CAUTION: After unpacking you MUST allow this appliance to stand upright for at least 2 hours to allow the lubricant and refrigerant to drain back into the compressor and stabilize. Failure to do so may adversely affect performance and the lifetime of this unit.

  • Page 9: Extension Cord

    115 volts and at least 10 amperes. REVERSING THE DOOR SWING OF YOUR APPLIANCE (ONLY for SCR1536B / SCR1536BG / SCR2464) This unit has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side.

  • Page 10: Installing The Stainless Steel Handle

    5. Screw the alternative left top hinge 8, included in the fittings, on the left hand side of cabinet. (Fig. 3) 6. Relocate the door to the designated position. Then screw the bottom hinge assembly on the left designated position and tighten it after the door is leveled. (Fig. 1) 7.

  • Page 11: Interior Light

    ºF/ºC Selector Select the temperature display setting in Fahrenheit or Celsius degrees. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, press and hold the LIGHT key for 5 seconds. Setting the Temperature Control • You can set the temperature by touching the UP and DOWN symbols. When you push the two buttons for the first time, the LED readout will show the original temperature set previously.

  • Page 12: Temperature Alarm / Door Alarm

    TEMPERATURE ALARM / DOOR ALARM • An audible alarm sounds if the storage temperature is not cold enough. The temperature display flashes at the same time. • The cause of the temperature being too high may be: Warm items were placed inside Too much warm ambient air flowed in when rearranging and removing contents Power failure for some time The appliance is faulty.

  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE CLEANING YOUR BEVERAGE MERCHANDISER CAUTION: Failure to unplug the appliance during cleaning could result in electrical shock or other personal injury. • Turn off the power, unplug the appliance, and remove all items, including shelves. • Wash the inside surfaces with a solution of warm water and baking soda (about 2 tablespoons of baking soda to a quart of water).

  • Page 14: Troubleshooting

    TROUBLESHOOTING You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. Troubleshooting Guide PROBLEM POSSIBLE CAUSE REMEDY • Appliance is not connected to a power •...
  • Page 15 • The gasket is dirty. • Clean the door gasket. • The shelves are out of position. • Check the shelves and refit correctly. • “E0” indicates a communication error for • Call for service. 3 zone models. • “E1” or “E2” indicates that the air Display “E0”, temperature sensor has failed.

  • Page 16: Limited Warranty

    LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
