PalletPal Walkie
Owner's Manual
Model:
Serial Number:
__________________________
Date placed in
__________________________
service:
SOUTHWORTH PRODUCTS CORP.
P.O. Box 1380, Portland, ME 04104-1380
Telephone: 800-743-1000 • 207-878-0700
Fax: 207-797-4734
www.SouthworthProducts.com
December 22, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PalletPal Walkie and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Southworth PalletPal Walkie

Summary of Contents for Southworth PalletPal Walkie

  • Page 1 PalletPal Walkie Owner’s Manual Model: Serial Number: __________________________ Date placed in __________________________ service: SOUTHWORTH PRODUCTS CORP. P.O. Box 1380, Portland, ME 04104-1380 Telephone: 800-743-1000 • 207-878-0700 Fax: 207-797-4734 www.SouthworthProducts.com December 22, 2020...

  • Page 2: Table Of Contents

    Operation....................... 10 Application & Use ....................... 10 Loading & Unloading ......................10 Maintenance & Repair ...................11 Periodic Maintenance ......................11 6.1.1 Weekly ..........................11 6.1.2 Every Six Months ......................11 Troubleshooting ....................12 Warranty & Contact Information ................. 13 Southworth Products PalletPal Walkie Manual...
  • Page 3 This label (part # 10095524) is WARNING required by California Law. For Cancer and Reproductive Harm - more information visit: www.P65Warnings.ca.gov www.P65Warnings.ca.gov Southworth Products PalletPal Walkie Manual...

  • Page 4: Introduction

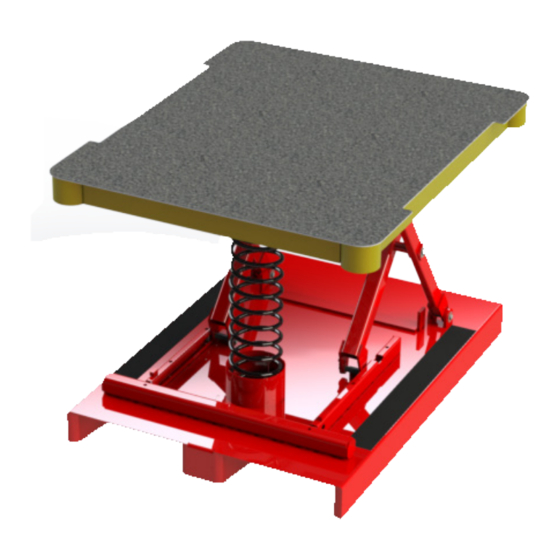

    1. Introduction The PalletPal Walkie is a passive spring actuated level loader making loading pallets faster, safer, and easier. This simple, automatic, load leveler uses a calibrated spring to lower the load as cases, boxes or cartons are added. No power supply is required. No modifications or special attachments are required, it fits all standard electric walkies and walkie riders.

  • Page 5: Responsibilities Of Operators

    Before Operations - The operator shall: 1. Read and understand the manufacturer’s operating instruction(s) and user’s safety rules or have them explained 2. Understand all labels, warnings, and instructions displayed on the machine or have them explained. Southworth Products PalletPal Walkie Manual...
  • Page 6 12. Problems or malfunctions - Any problem(s) or malfunction(s) that affect the safety of operations shall be repaired prior to the use of the machine. Southworth Products PalletPal Walkie Manual...

  • Page 7: Safety

    CAUTION Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE Indicates information considered important, but not hazard- related (e.g., messages relating to property damage). Southworth Products PalletPal Walkie Manual...

  • Page 8: Labeling

    OF PLATFORM SECTION A-A 5 FT ANTI SKID TAPE 10072618 2 LD DCL 2.00X3.00 SOUTHWORTH SERIAL ID BL 10079929 2 LD DCL 1.00X6.00 A DANGER TO AVOID BODIL 10089458 2 LD DCL 1.00X8.50 TO AVOID BODILY INJURY, 10089457 2 BK-LD DCL 2.00X18.00 SOUTHWORTH...

  • Page 9: Setup

    This machine is not designed to be lagged to the floor. Upon receipt of the Walkie there will be pins/bolts in the lower roller tracks to prevent the lift from collapsing during transit. Remove the pins/bolts and discard. Southworth Products PalletPal Walkie Manual...

  • Page 10: Operation

    The platform includes inset relief along the sides for improved operator footing and to ease the loading and unloading process. The base frame includes non-skid surface in these areas. Southworth Products PalletPal Walkie Manual...

  • Page 11: Maintenance & Repair

    LOWER ROLLER UPPE (BOTH SIDES) (BOT NOTE: SPRING HIDDEN FOR CLARITY CENTER PIVOT PIN (BOTH SIDES) UPPER HINGE PIN LOWER HINGE PIN (BOTH SIDES) (BOTH SIDES) LLER UPPER ROLLER (BOTH SIDES) NOTE: SPRING HIDDEN FOR CLARITY Southworth Products PalletPal Walkie Manual...

  • Page 12: Troubleshooting

    875 lb. on the Lift does not raise when platform. product is removed. Inspect the lift for damage or Mechanical binding debris that may cause binding of the leg set and/or rollers. Southworth Products PalletPal Walkie Manual...

  • Page 13: Warranty & Contact Information

    For specific warranty information, contact Southworth Products with the machine’s serial number. Any claim for breach of this warranty must be received in writing by Southworth within the warranty period. Warranties shall not cover failure or defective operation, caused by misuse, misapplication, negligence or accident, exceeding recommended capacities, or any alteration or repair of the item purchased which has not been authorized by Southworth.
