Southworth PalletPal 360 Air Owner's Manual

Level loader
Hide thumbs Also See for PalletPal 360 Air:
Table of Contents

Advertisement

Quick Links

Download this manual

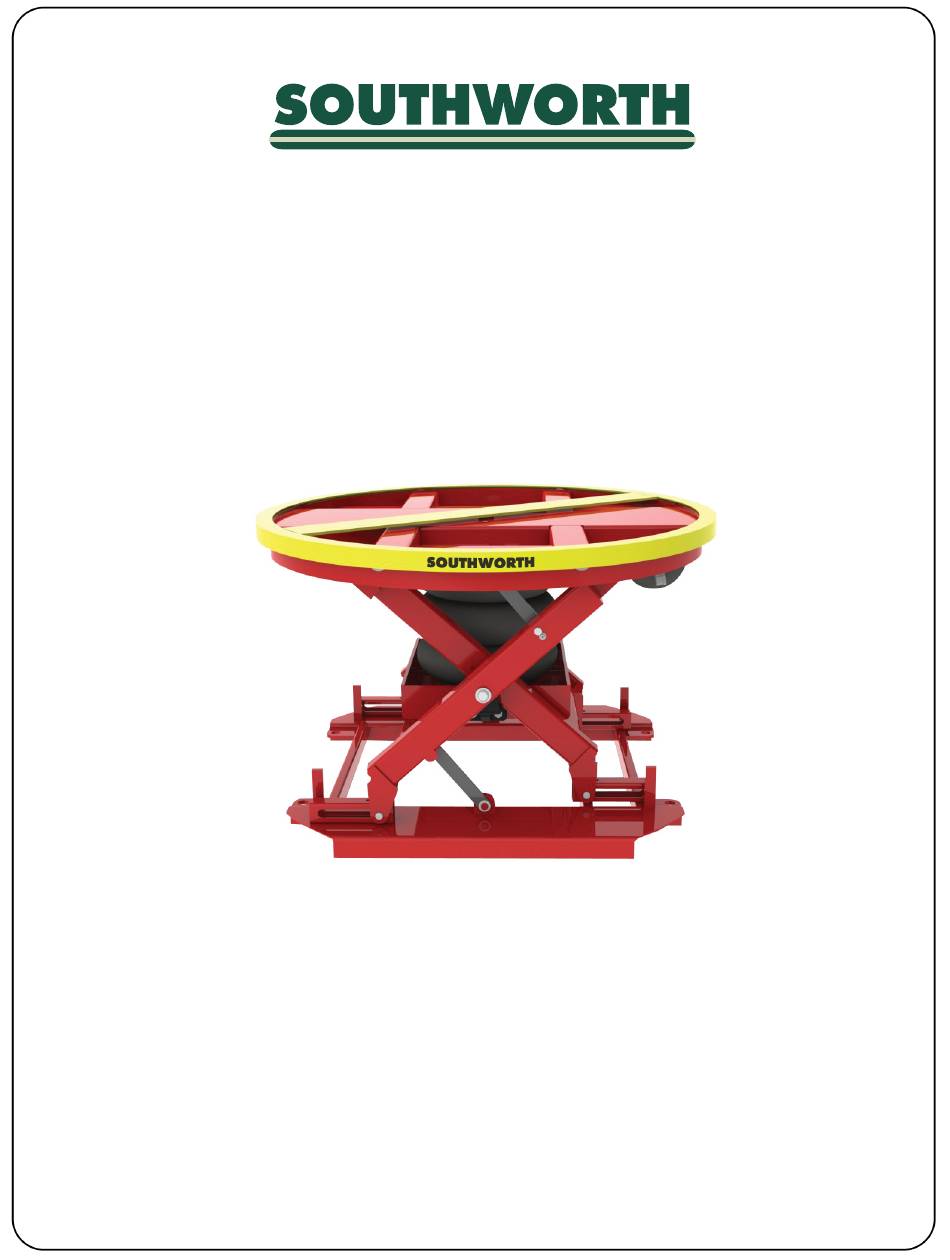

Owner's Manual
PalletPal
360 Air
TM
Level Loader
For products shipped after January 2014
Serial # ______________________________________________
Placed in Service ______________________________________
Southworth Products Corp
P.O. Box 1380 • Portland, Maine 04104-1380
Phone 800-743-1000 • 207-878-0700 Fax 207-797-4734
www.SouthworthProducts.com
service@SouthworthProducts.com
OCTOBER 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PalletPal 360 Air and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Southworth PalletPal 360 Air

Summary of Contents for Southworth PalletPal 360 Air

  • Page 1 Owner’s Manual PalletPal 360 Air Level Loader For products shipped after January 2014 Serial # ______________________________________________ Placed in Service ______________________________________ Southworth Products Corp P.O. Box 1380 • Portland, Maine 04104-1380 Phone 800-743-1000 • 207-878-0700 Fax 207-797-4734 www.SouthworthProducts.com service@SouthworthProducts.com OCTOBER 2017...
  • Page 2 This manual was current at the time of printing. To obtain the latest, most updated version, please contact Southworth's Customer Service Depart- www.SouthworthProducts.com ment or go to our website: under Parts & Service you will find a complete list of current owner’s manuals to print.

  • Page 3: Table Of Contents

    Operating Safely – Manual Use ............12 Loading with a Fork Lift ..............13 Unloading with a Fork Lift ..............13 Moving the PalletPal 360 Air ............13 MAINTENANCE/TROUBLESHOOTING ............14 Safe Servicing of Lift ................ 14 Maintenance ..................15 Troubleshooting Check List .............

  • Page 4: Introduction

    The unit may also be used for the reverse application. An empty pallet may be placed on the PalletPal 360 Air. The unit gradually lowers as boxes or parts are added. Again, this keeps the top of the load at the correct height. Complete pallets may be loaded or unloaded using a stacker or fork lift.

  • Page 5: Responsibility Of Owners And Users

    It is the responsibility of the user/purchaser to advise the manufacturer where deflection may be critical to the application. Repairs All repairs shall be made by qualified personnel in conformance with Southworth’s in- structions. Operators Only trained personnel and authorized personnel shall be permitted to operate the lift.

  • Page 6: Safety

    NOTICE is used to address practices not related to physical injury. SAFETY INSTRUCTIONS (or equivalent) signs indicate specific safety- related instructions or procedures. NOTE: DANGER, WARNING or CAUTION should not be considered for property damage accidents unless personal injury risk appropriate to these levels is involved. PALLETPAL 360 AIR...
  • Page 7 Please be sure that all of the labels are in place, and are visible to the machine operators. Never paint over the labels. If any of the labels are missing, please contact Southworth for replacements. Labels and precautionary markings on the machine help to protect your workers.

  • Page 8: Installation Instructions

    4. Choose the place where you want to set the unit. It is very important that the PalletPal 360 Air be located on a level, smooth and flat surface. Check the floor surface carefully and make sure that it is free of all loose debris and dirt.

  • Page 9: Operation Notes

    This can cause the pallet to stop turning suddenly, causing the load to shift. You may be injured, and the unit may be damaged. The boards or nails on the bottom of the pallet should not extend down more than 1/8 inch. PALLETPAL 360 AIR...

  • Page 10: Specifications

    Rotating ring, inner diameter 40-5/8 inches 1,030mm Ship weight 375 lbs 170kg Operating environment indoor indoor Operating temperature -0F to +120F -18° to 50° c OPERATING INSTRUCTIONS Labels and Precautionary Markings Figure 1. Label Location Drawing - #60041394 PALLETPAL 360 AIR...
  • Page 11  Item 10089457 ‚ ƒ Item 10089457 „ THIS DRAWING MUST BE AT REVISION: '-' Item 10089458 … Item 2990414 † SOUTHWORTH Decal 5900191 PALLETPAL 360 AIR...

  • Page 12: Loading Manually

    (continued) WARNING! Ensure that loading and unloading of the PalletPal 360 Air is done in even layers. Loading or unloading a load on one side may cause the load to tip over and you may be injured. This can also damage the unit. See Figure 4.

  • Page 13: Loading With A Fork Lift

    • Lower the load until the airbag on the PalletPal 360 Air is fully compressed. • Be sure the forks on the lift are clear of the inside of the pallet and ensure unit is carrying the weight - not the fork lift, see figure 5.

  • Page 14: Maintenance/Troubleshooting

    (or pow- ered) pallet jack to be positioned under the center of the base frame. Note that certain Southworth supplied and ap- proved portability kits installed on the PalletPal 360 Air allow the unit to be rolled around on smooth level surfaces when loaded.

  • Page 15: Maintenance

    Excessive “rumble” when One or more worn or broken Remove turntable, replace bearings. top rotating bearings under turntable. Wear on underside Normal condition caused by No repair necessary. of turntable. wear-hardening of metal. PALLETPAL 360 AIR...

  • Page 16: Figure 9 Recommended Spare Parts

    PALLETPAL 360 AIR...

  • Page 17: Ordering Replacement Parts

    Ordering Replacement Parts Southworth has carefully chosen the components in your unit to be the best available for the purpose. Replacement parts should be identical to the original equipment. Southworth will not be responsible for equipment failures resulting from the use of incorrect replacement parts or from unauthorized modifications to the unit.

  • Page 18: Warranty

    Labor is not included. This is buyer’s sole remedy. Except as stated herein, Southworth Products Corp will not be liable for any loss, injury or dam- age to persons or property, nor for direct, indirect, or consequential damage of any kind, resulting from failure or defective operation of said product.
