Southworth PalletPal 360 Owner's Manual

Load leveler
Hide thumbs Also See for PalletPal 360:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

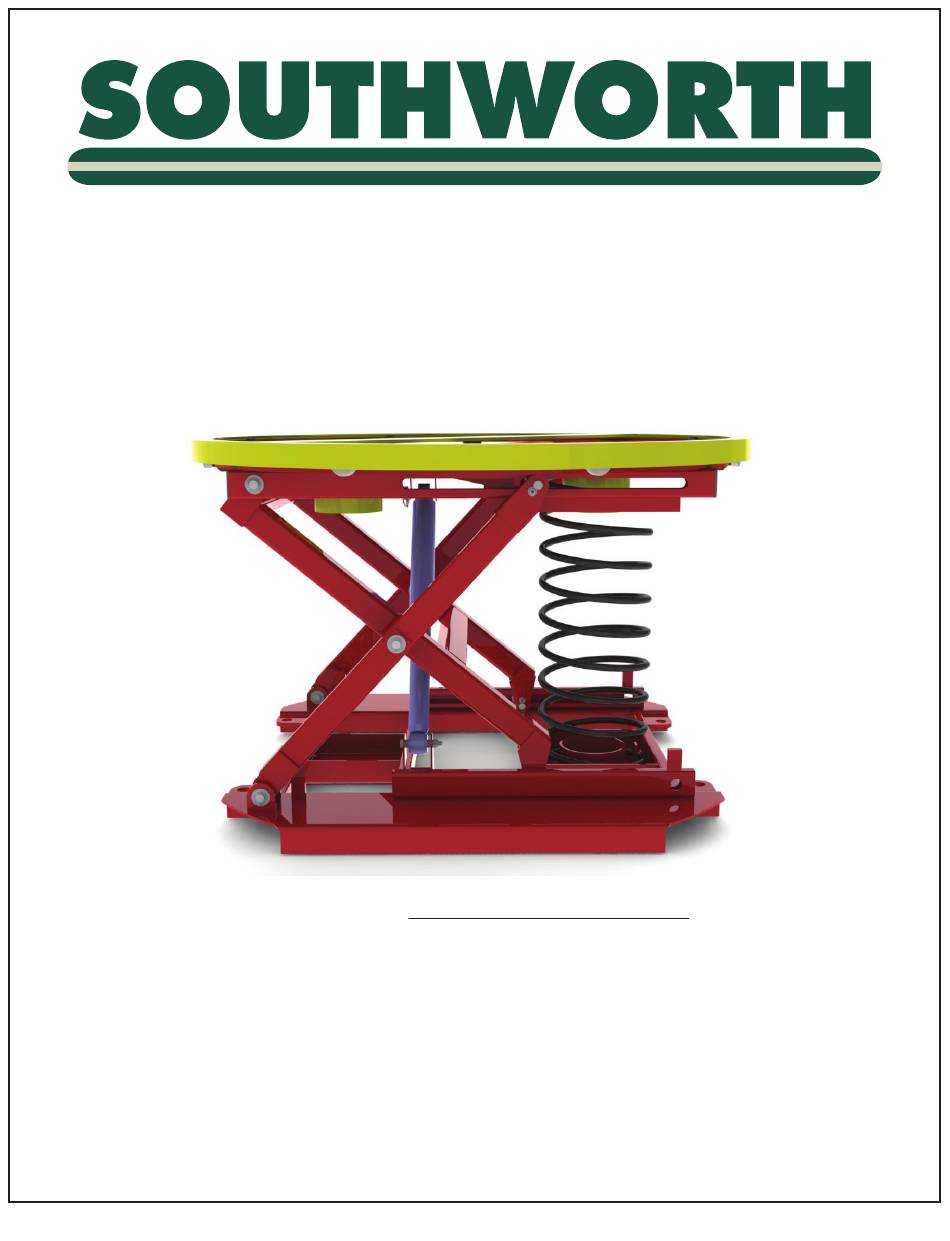

PalletPal 360 Load Leveler
Owner's Manual
Model:
Serial Number:
Date placed in
service:
SOUTHWORTH PRODUCTS CORP.
P.O. Box 1380, Portland, ME 04104-1380
Telephone: 800-743-1000 • 207-878-0700
__________________________
__________________________
Fax: 207-797-4734
www.SouthworthProducts.com
August 29 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PalletPal 360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Southworth PalletPal 360

Summary of Contents for Southworth PalletPal 360

  • Page 1 PalletPal 360 Load Leveler Owner’s Manual Model: Serial Number: __________________________ Date placed in __________________________ service: SOUTHWORTH PRODUCTS CORP. P.O. Box 1380, Portland, ME 04104-1380 Telephone: 800-743-1000 • 207-878-0700 Fax: 207-797-4734 www.SouthworthProducts.com August 29 2019...

  • Page 2: Table Of Contents

    Maintenance & Repair ..................17 Periodic Maintenance ......................17 6.1.1 Weekly ......................... 17 6.1.2 Every Six Months ......................17 Ordering Replacement Parts....................18 Troubleshooting ....................18 Components ......................19 Warranty & Contact Information ................. 20 Southworth Products PalletPal 360 Manual...
  • Page 3 This label (part # 10095524) is required by California law. For more information visit www.65Warnings.ca.gov. This label (part # 10095524) is required by California law. For more information visit www.P65Warnings.ca.gov. Southworth Products PalletPal 360 Manual...

  • Page 4: Introduction

    Southworth Products PalletPal 360 Manual...
  • Page 5 1. Bumps, floor obstructions and uneven surfaces 2. Overhead obstructions and electrical hazards 3. Presence of unauthorized persons 4. Other possible unsafe conditions as noted in the operating manual. Southworth Products PalletPal 360 Manual...
  • Page 6 12. Problems or malfunctions - Any problem(s) or malfunction(s) that affect the safety of operations shall be repaired prior to the use of the machine. Southworth Products PalletPal 360 Manual...

  • Page 7: Safety

    This machine has labeling to indicate potential hazards this machine may pose when operating and/or maintaining the machine. All labels must be legible. If any label is missing, damaged, or otherwise illegible contact the manufacturer for replacement labels. Southworth Products PalletPal 360 Manual...

  • Page 8: Label Placement Diagram

    Label Placement Diagram Southworth Products PalletPal 360 Manual...

  • Page 9: Set Up

    This machine is not designed to be lagged to the floor. Lagging the machine may lead to damage during operation. The PalletPal 360 is available in five possible spring configurations, or Ranges, with Range 0 having the lowest maximum capacity and Range 4 having the highest maximum capacity.
  • Page 10 6. Insert either end of the orange spring into the lower spring pocket on the roller end of the base frame. Ensure the alignment tab is inside of the spring. Alignment Southworth Products PalletPal 360 Manual...
  • Page 11 9. Remove the motion stabilizer pin. The spring should hold the platform elevated. 10. Press down on the platform until the two latches fall into place. The latches will fall in behind the roller pins. Southworth Products PalletPal 360 Manual...

  • Page 12: Range 0 & Machines With Bellows Skirts

    Range #3 Range #4 Hinge End Hinge End Hinge End Hinge End Purple Purple Gray spring spring spring Orange Orange Orange Orange spring and Gray spring spring springs Roller End Roller End Roller End Roller End Southworth Products PalletPal 360 Manual...

  • Page 13: Spring Selection

    Range 4 Orange, Gray, & 42-44 in. Purple Springs 1067-1118 mm 40-42 in. 1016-1067 mm 38-40 in. 965-1016 mm 36-38 in. 914-965 mm 34-36 in. 864-914 mm 32-34 in. 813-864 mm 30-32 in. 762-813 mm Southworth Products PalletPal 360 Manual...

  • Page 14: Installing & Removing Secondary Springs

    3. Lift up on the bayonet and clip-lock assembly until clear of the platform frame. Set assembly aside. 4. The springs can now be removed or added through the bayonet hole as needed. Southworth Products PalletPal 360 Manual...

  • Page 15: Removing The Main Spring

    7. With two people, Lift the platform slightly so the motion stabilizer pin can be removed from the roller track. Remove the pin and gently lower the platform down. 8. Re-install the motion stabilizer pin into the bracket to prevent it from being misplaced. Southworth Products PalletPal 360 Manual...

  • Page 16: Operation

    Do not drive the fork truck/stacker into the base frame or the machine may be damaged. Do not slide the pallet onto/off of the platform/rotator ring or the machine may be damaged. Southworth Products PalletPal 360 Manual...

  • Page 17: Transporting The Machine

    Repair or replace bearings as necessary. • Inspect base frame, platform, and leg set for wear or damage. 6.1.2. Every Six Months • Perform weekly maintenance • Apply PTFE lubricant to all pivot points, rollers, and bearings. Southworth Products PalletPal 360 Manual...

  • Page 18: Ordering Replacement Parts

    Ordering Replacement Parts Southworth has carefully chosen the components in your PalletPal to be the best available for the purpose. Replacement parts should be identical to the original equipment. Southworth will not be responsible for equipment failures resulting from the use of incorrect replacement parts or from unauthorized modifications of the machine.

  • Page 19: Components

    LOWER ROLLERS, PINS & BUSHINGS AND TRACKS CENTER PIN AND BUSHING MOUNTING HOLES FOR (BOTH SIDES) OPTIONAL LEVEL FEET MOTION STABILIZER FORK POCKETS (BOTH SIDES) MOUNTING HOLES FOR OPTIONAL PORTABILITY KITS UPPER MOTION STABILIZER PIN Southworth Products PalletPal 360 Manual...

  • Page 20: Warranty & Contact Information

    For specific warranty information, contact Southworth Products with the machine’s serial number. Any claim for breach of this warranty must be received in writing by Southworth within the warranty period. Warranties shall not cover failure or defective operation, caused by misuse, misapplication, negligence or accident, exceeding recommended capacities, or any alteration or repair of the item purchased which has not been authorized by Southworth.
