CLL05-68 Owner's Manual
Portable DC Powered Mortuary Lift
Model:
Serial Number:
Date placed in
service:
SOUTHWORTH PRODUCTS CORP.
P.O. Box 1380, Portland, ME 04104-1380
Telephone: 800-743-1000 • 207-878-0700
__________________________
__________________________
Fax: 207-797-4734
www.SouthworthProducts.com
February 19, 2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Southworth CLL05-68
Summary of Contents for Southworth CLL05-68

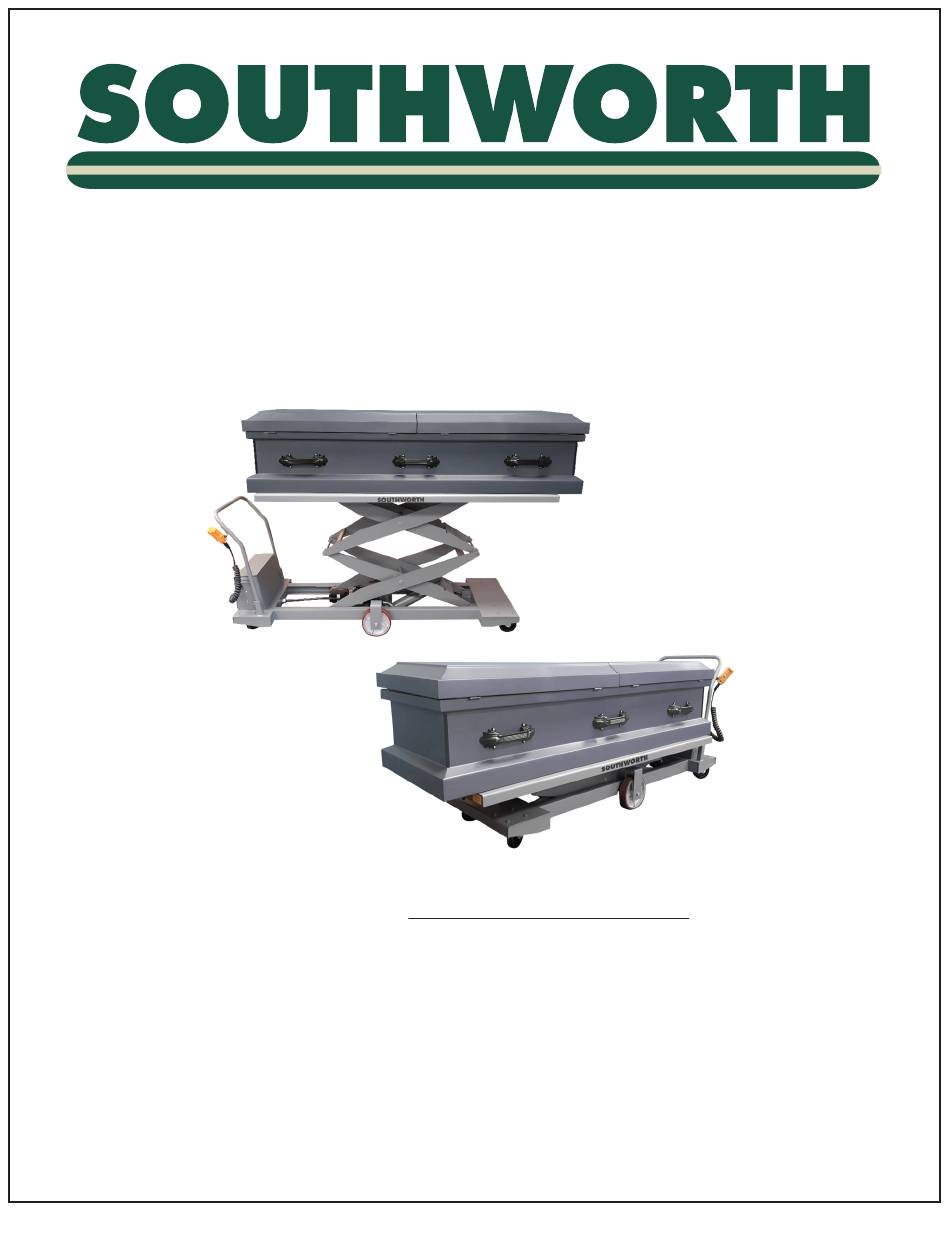

- Page 1 CLL05-68 Owner’s Manual Portable DC Powered Mortuary Lift Model: Serial Number: __________________________ Date placed in __________________________ service: SOUTHWORTH PRODUCTS CORP. P.O. Box 1380, Portland, ME 04104-1380 Telephone: 800-743-1000 • 207-878-0700 Fax: 207-797-4734 www.SouthworthProducts.com February 19, 2021...
-
Page 2: Table Of Contents
Wiring Schematic ........................ 20 Electrical Arrangement ....................... 21 Battery Charging ......................... 22 Hydraulics ......................23 10.1 Hydraulic Fluid ........................23 10.2 Hydraulic Schematic ......................23 10.3 Hydraulic Arrangement ....................24 Warranty & Contact Information ............... 25 Southworth Products Mortuary Lift Manual... - Page 3 This label (part # 10095524) is WARNING required by California Law. For Cancer and Reproductive Harm - more information visit: www.P65Warnings.ca.gov www.P65Warnings.ca.gov Southworth Products Mortuary Lift Manual...
-
Page 4: Introduction
3. Retrained, if necessary, based on the owners/user’s observation and evaluation of the operator. Modifications and additions shall not be performed without the manufacturer’s prior written approval. Where such authorization is granted, capacity, operation, and maintenance instruction plates, tags, or decals shall be changed accordingly. Southworth Products Mortuary Lift Manual... -
Page 5: Responsibilities Of Operators
Before Operations - The operator shall: 1. Read and understand the manufacturer’s operating instruction(s) and user’s safety rules or have them explained. 2. Understand all labels, warnings, and instructions displayed on the machine or have them explained. Southworth Products Mortuary Lift Manual... - Page 6 13. Problems or malfunctions - Any problem(s) or malfunction(s) that affect the safety of operations shall be repaired prior to the use of the machine. Southworth Products Mortuary Lift Manual...
-
Page 7: Safety
CAUTION Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE Indicates information considered important, but not hazard- related (e.g., messages relating to property damage). Southworth Products Mortuary Lift Manual... -
Page 8: Machine Specifications
3. Machine Specifications Model: Mortuary Lift (CLL05-68) Overall Length: 86 1/8” 30” (Standard Platform) Overall Width: 24 3/4” (Roller/Ball Transfer Platform Platform Length: 74” 30” (Standard Platform) Platform Width: 24” (Roller/Ball Transfer Platform) 14 3/8” (Standard Platform) Lowered Height: 16 3/4” (Roller/Ball Transfer Platform) 82 3/8”... - Page 9 HEIGHT 68" 68" VERTICAL VERTICAL TRAVEL TRAVEL 35 5/8" 35 5/8" 16 3/4" 16 3/4" LOWERED LOWERED HEIGHT HEIGHT 16 1/4" 16 1/4" 20 7/8" 20 7/8" END LOAD ROLLER TOP SIDE LOAD ROLLER TOP Southworth Products Mortuary Lift Manual...
-
Page 10: Labeling
2991783 LD DCL 3.50X5.00 LOWER LIFT BEFORE TRANS 2981615 LD DCL 2.75X5.50 TO AVOID PERSONAL IN 10006267 BK-LD DCL 1.00X9.00 SOUTHWORTH 2998429 LD DCL 1.00X6.00 A DANGER TO AVOID BODIL 10089458 BK-LD DCL 1.25X2.75 CAPACITY 500 LBS 2998433 LD DCL 1.00X8.50 TO AVOID BODILY INJURY,... -
Page 11: Setup
SET SCREW (BOTH SIDES) 4. Plug the battery charger in and allow the battery to fully charge before continuing. See section 9.3 Battery Charging. 5. Ensure breather plug has been installed. See section 10.3 Hydraulic Arrangement. Southworth Products Mortuary Lift Manual... -
Page 12: Testing
10. Lower the lift approximately one foot, then release the button. The motor should turn off and the lift should come to a stop and hold its position. 11. Lower the lift to the fully lowered position. Southworth Products Mortuary Lift Manual... -
Page 13: Operation
To engage the floor lock, press down on the lever until floor lock locks into the extended position. Lift up on the lever to disengage the floor lock. FLOOR LOCK FLOOR LOCK ENGAGED DISENGAGED Southworth Products Mortuary Lift Manual... -
Page 14: Raising And Lowering
Plug the battery charger in when the lift is not in use. The battery charger supplied with this lift will not over-charge the battery, as such, the battery charger can be left plugged in whenever the lift is not in use. See section 9.3 Battery Charging. Southworth Products Mortuary Lift Manual... -
Page 15: Maintenance & Repair
Do not enter beneath the raised lift. All maintenance to be performed with the lift in the lowered position. See section 7.1 Securing the Lift for Maintenance. Southworth Products Mortuary Lift Manual... -
Page 16: Securing The Lift For Maintenance
Platform weight: Approximately 162 lb. 5. Lift the maintenance bar up and lower the platform onto the maintenance bar. LIFT MUST BE IN FULLY LOWERED POSITION HINGE PLATFORM PLATFORM UP RAISE MAINTENANCE DEVICE PLATFORM LOWERED ONTO MAINTENANCE DEVICE Southworth Products Mortuary Lift Manual... -
Page 17: Lifts Roller Transfer Platforms
Take care not to damage the roller when removing it and store it in a safe location during maintenance. END LOAD ROLLER TRANSFER PLATFORM SIDE LOAD ROLLER TRANSFER PLATFORM SPRING LOADED HEX SPRING LOADED HEX AXLE (BOTH ENDS OF AXLE (BOTH SIDES) EACH ROLLER) Southworth Products Mortuary Lift Manual... -
Page 18: Periodic Maintenance
Inspect all casters. Ensure casters roll smoothly and rubber is not damaged. Repair or replace as necessary. Ensure casters mounting hardware is tight. • Ensure battery terminals are clean and all connections are tight. • Inspect platform rollers. Ensure rollers roll smoothly. (Roller/ball transfer tops only) Southworth Products Mortuary Lift Manual... -
Page 19: Troubleshooting
See section 10.1 Hydraulic Lift raises/lowers Fluid. slowly Battery voltage is low Charge the battery, then test again. Inspect all hoses and fittings for leaks. Lift drifts down Hydraulic fluid leak Repair/replace components as necessary. Southworth Products Mortuary Lift Manual... -
Page 20: Electrical
12 VDC AGM Sealed Lead Acid Battery Nominal voltage: 12 VDC Battery Nominal capacity @ 20 hour rate: 55 Amp-Hours Group Size: 24 Motor 1/3 HP @ 3450 RPM (12 VDC) intermittent duty Wiring Schematic Southworth Products Mortuary Lift Manual... -
Page 21: Electrical Arrangement
Electrical Arrangement MOTOR POSITIVE TERMINAL NEGATIVE BATTERY CHARGER TERMINAL UP/DOWN SOLENOIDS Southworth Products Mortuary Lift Manual... -
Page 22: Battery Charging
The green light indicates your battery is ready to use. STATUS LEDS IN LINE FUSE HOLDER FUSE: BUSSMAN AGX-10 (OR EQUIVALENT) 3/8” RING TERMINALS 115 VAC POWER CORD Southworth Products Mortuary Lift Manual... -
Page 23: Hydraulics
The hydraulic fluid reservoir is to be full (approximately 3/4” below the fill plug) only when the lift is in the fully lowered position. The hydraulic fluid should be transparent with no burnt or rancid smell. 10.2 Hydraulic Schematic Southworth Products Mortuary Lift Manual... -
Page 24: Hydraulic Arrangement
10.3 Hydraulic Arrangement HPU PUMP HPU MOTOR DOUBLE ACTING CYLINDER HYDRAULIC FLUID RESERVOIR FILL PORT/BREATHER FIXED DOWN SPEED FLOW CONTROL Southworth Products Mortuary Lift Manual... -
Page 25: Warranty & Contact Information
For specific warranty information, contact Southworth Products with the machine’s serial number. Any claim for breach of this warranty must be received in writing by Southworth within the warranty period. Warranties shall not cover failure or defective operation, caused by misuse, misapplication, negligence or accident, exceeding recommended capacities, or any alteration or repair of the item purchased which has not been authorized by Southworth.
