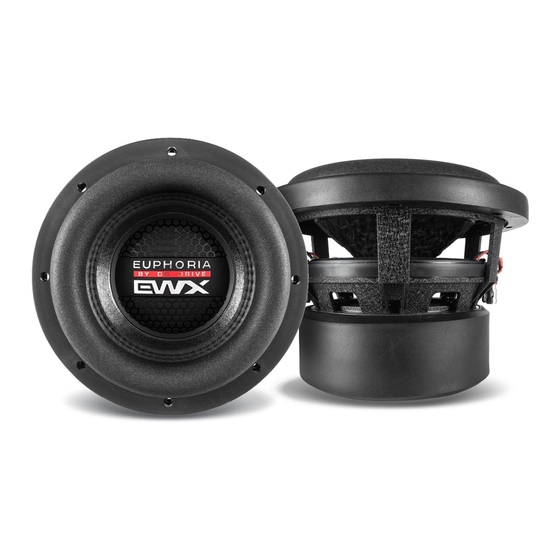

EWX8D4 : EWX10D4
EWX12D4 : EWX15D4
USER MANUAL
Installation Instructions | Owners Manual
Due to continuous improvement of the product, specifications are subject to change without notice.
DB Research L.L.P.
302 Hanmore Industrial Parkway Harlingen, TX 78550
Phone (877) 787-0101 : Fax (956) 421-4513 : www.DBDrive.net
TM
Advertisement
Related Manuals for DB Drive Euphoria EWX8D4
Summary of Contents for DB Drive Euphoria EWX8D4
- Page 1 EWX8D4 : EWX10D4 EWX12D4 : EWX15D4 USER MANUAL Installation Instructions | Owners Manual Due to continuous improvement of the product, specifications are subject to change without notice. DB Research L.L.P. 302 Hanmore Industrial Parkway Harlingen, TX 78550 Phone (877) 787-0101 : Fax (956) 421-4513 : www.DBDrive.net...
- Page 2 Congratulations on your purchase of a DB Drive state-of-the-art subwoofer. Your selection of a DB Drive car audio product indicates a true appreciation of fine musical reproduction. Whether adding to an existing system or including your DB Drive subwoofer in a new system, you are certain to notice immediate performance benefits.
- Page 3 PRODUCT SPECIFICATIONS TS SPECS EWX8D4 EWX10D4 EWX12D4 EWX15D4 Resonant Frequency (fs) 41.9 Hz 36.7 Hz 35.8 Hz 47.2 Hz DC Resistance (Re) 6.4 Ω 7.2Ω 7.2 Ω 7.2 Ω Mechanical (Qms) 6.30 6.43 6. 1 0 7. 1 1 Electromagnetic (Qes) 0.78 0.81 0.95...
- Page 4 RECOMMENDED ENCLOSURES Sealed Ported 8.66” / 220 mm EWX8D4 Sealed 0.5 cuft. Vented 0.94 cuft Round vent 3” long x 18” long 8 square inches of surface area x 20” long Tuned @ 38Hz 7.32” / 186 mm 10.87” / 276 mm EWX10D4 Sealed 1.27 cuft.
