Safety Information - Wavetek XP Series User Manual

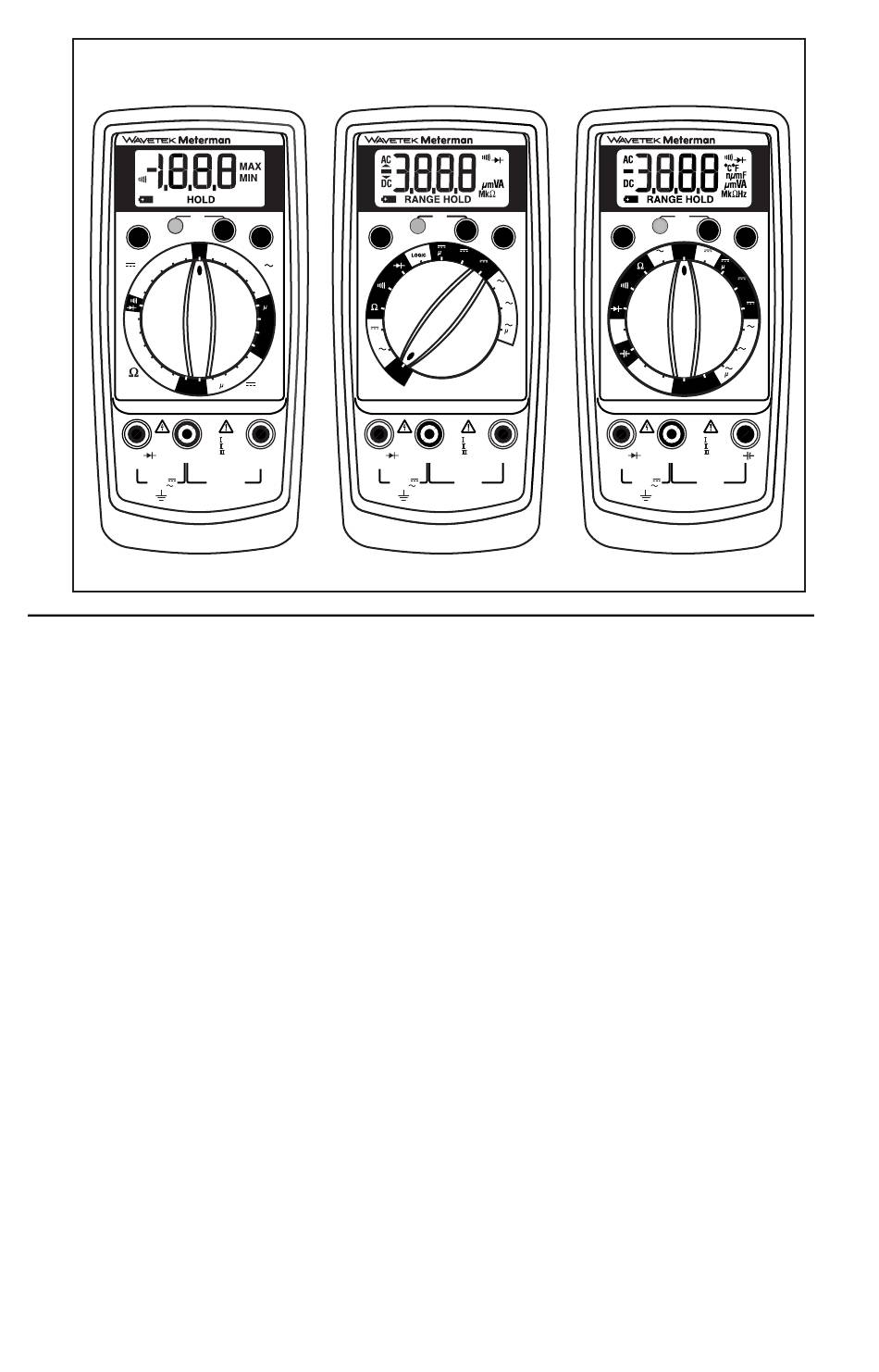

5XP
NON
MIN MAX
CONTACT
VOLTAGE
OFF
750
200
20
V
2
200
m
20M
2M
200k
20k
2k
200
1.5V 9V
BATT
Ω
V COM
BATT 9V
MAX
1000V
750V
• The XP Series Digital Multimeters conform to EN61010-1, Rev-2; CAT I 1000 V,
CAT II 600 V, CAT III 300 V, class 2 and pollution deg.2; CSA 22.2 -1010-1. It is
recommended for use with local level power distribution, appliances, portable
equipment, etc., where only smaller transient overvoltages may occur, and not
for primary supply lines, overhead lines, and cable systems.
• Do not exceed the maximum overload limits per function (see specifications)
nor the limits marked on the instrument itself. Never apply more than
1000 V dc/750 V ac rms between the test lead and earth ground.
• Inspect the DMM, test leads and accessories before every use. Do not use any
damaged part.
• Never ground yourself when taking measurements. Do not touch exposed
circuit elements or test probe tips.
• Do not operate the instrument in an explosive atmosphere.
• Exercise extreme caution when: measuring voltage >20 V // current >10 mA //
AC power line with inductive loads // AC power line during electrical storms //
current, when the fuse blows in a circuit with open circuit voltage >1000 V //
servicing CRT equipment.
• Always measure current in series with the load – NEVER ACROSS a voltage
source. Check fuse first. Never replace a fuse with one of a different rating.
• Remove test leads before opening the case.
5XP
HOLD RANGE
1000
200
20
V
2
200
m
200
2m
20m V
200
m
200m
20m
2m
200
A
CAT 1000V
CAT 600V
Ω
CAT 300V
mA
BATT 1.5V LOGIC
200mA MAX
FUSED

Safety Information

15XP
15XP
NON
HOLD
CONTACT
VOLTAGE
A
mA
A
A
mA
A
V
OFF
auto-off
CAT 1000V
CAT 600V
CAT 300V
V COM A
MAX
1000V 2A MAX
750V FUSED
2
35XP
35XP
NON
RANGE HOLD
CONTACT
VOLTAGE
OFF
V
V
A A
mA mA
2A A
HZ
A
mA
400
A
˚C
1000 400
1832
˚F auto-off
CAT 1000V
CAT 600V
Ω
CAT 300V
V COM A
Hz Temp
MAX
1000V 2A MAX
750V FUSED
