Summary of Contents for Wavetek XP Series

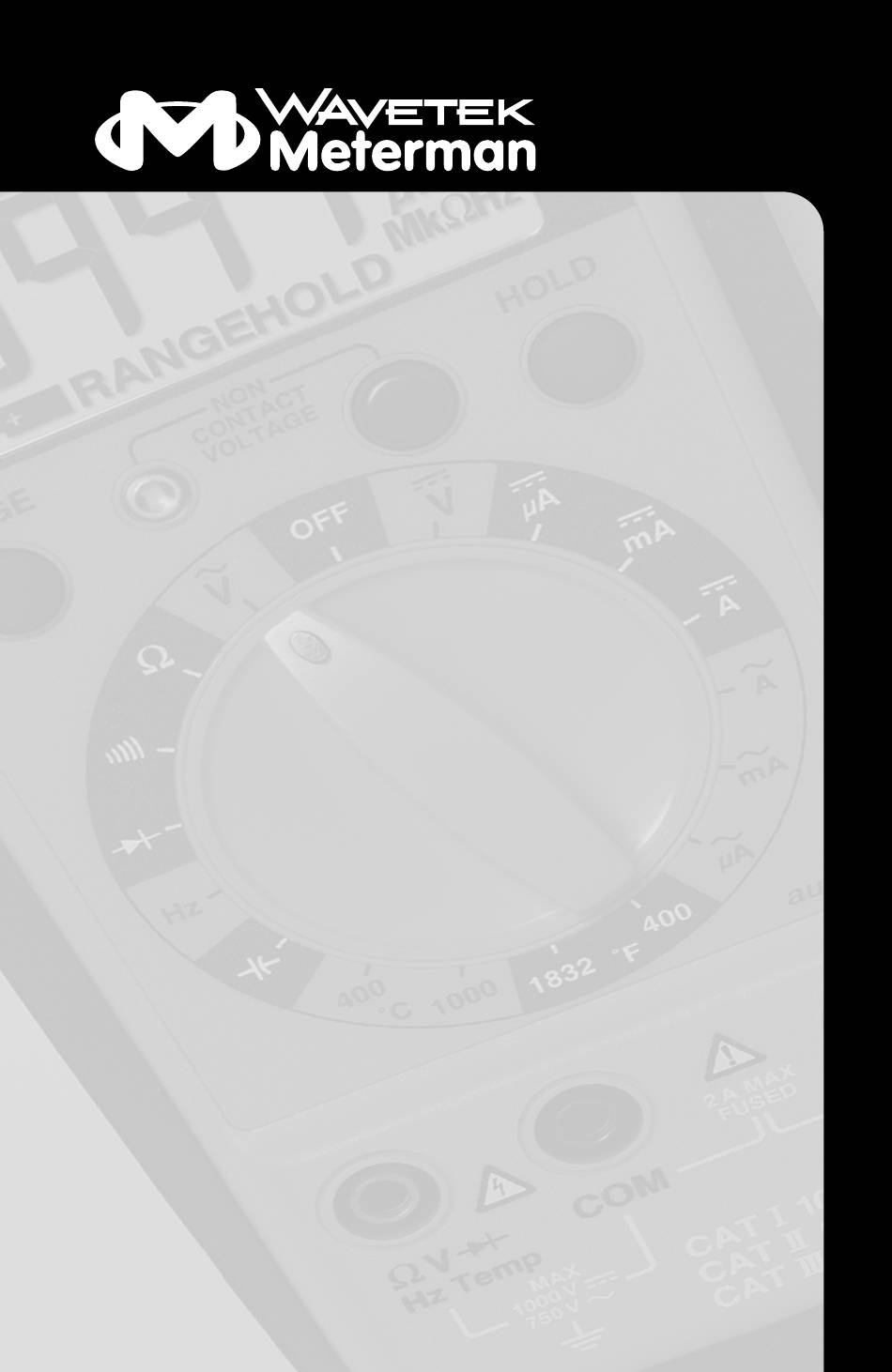

- Page 1 15XP ® 35XP ® Compact Digital Multimeter Users Manual • Manual de uso • Mode d'emploi • Bedienungshandbuch • Manuale d'Uso...
- Page 2 35XP RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP...
-
Page 3: Table Of Contents
XP Series Digital Multimeters Contents Safety Information ..................2 Symbols Used in this Manual ............... 3 Making Measurements..................3 Verify Instrument Operation ................. 3 Range Selection................... 3 Correcting an Overload ( 0o or -0o ) Indication ......... 3 Measuring DC Voltage ........See Figure ...... -
Page 4: Safety Information
FUSED Safety Information • The XP Series Digital Multimeters conform to EN61010-1, Rev-2; CAT I 1000 V, CAT II 600 V, CAT III 300 V, class 2 and pollution deg.2; CSA 22.2 -1010-1. It is recommended for use with local level power distribution, appliances, portable equipment, etc., where only smaller transient overvoltages may occur, and not... -
Page 5: Symbols Used In This Manual
Symbols Used in this Manual Battery Refer to the manual Double insulated Dangerous Voltage Direct Current Earth Ground Alternating Current Audible tone Fuse Canadian Standards Association Complies with EU directives Non-contact Voltage Making Measurements Verify Instrument Operation Before attempting to make a measurement, verify that the instrument is operational and the battery is good. -
Page 6: Measuring Ac Voltage
Measuring AC Voltage See Figure 1. Set the Function Switch to V . 2. Select the desired RANGE (5XP only). 3. Connect the test leads: Red to E , Black to COM. 4. Connect the test probes to the circuit test points. 5. -
Page 7: Measuring Resistance
Measuring Resistance See Figure Ω 1. Set the Function Switch to 2. Select the desired RANGE (5XP only). 3. Connect the test leads: Red to E , Black to COM. 4. Turn off power to the circuit being measured. Never measure resistance across a voltage source or on a powered circuit. -
Page 8: Measuring Temperature (35Xp Only)
Measuring Temperature (35XP only) See Figure 1. Set the function Switch to appropriate °C or °F range. 2. Connect the K-type thermocouple to a TEMP adapter (XR-TA). Match the polarity of the adapter to the polarity of the thermocouple. 3. Connect the TEMP adapter to the E and COM inputs. Note: The 35XP is compatible with all K-type thermocouples. -
Page 9: Testing Logic Levels (15Xp Only)
Testing Logic Levels (15XP only) See Figure -13- The 15XP tests logic levels for TTL logic. The meter displays 0o plus a ∧ for a high-level (true) condition. The meter beeps and displays an 0o and a ∨ for a low-level (false) condition. -
Page 10: Product Maintenance
(Meterman FP300) WARRANTY The XP Series of Digital Multimeters are warranted against any defects of material or workmanship within a period of one (1) year following the date of purchase of the multimeter by the original purchaser or original user. Any multimeter claimed to... -
Page 11: Repair
Repair All test tools returned for warranty or non-warranty repair or for calibration should be accompanied by the following: your name, company’s name, address, telephone number, and proof of purchase. Additionally, please include a brief description of the problem or the service requested and include the test leads with the meter. Non-warranty repair or replacement charges should be remitted in the form of a check, a money order, credit card with expiration date, or a purchase order made payable to Meterman Test Tools. -
Page 12: Specifications
Specifications Display: Replacement Parts 5XP and 15XP: 3 ½ digit liquid crystal TL36 Test Lead Set display (LCD) with a maximum reading of TL245 Test Lead Set 1999. FP200 Fuse – 2 A / 1000 V (15XP and 35XP: 3 ¾ digit liquid crystal display 35XP) (LCD) with a maximum reading of 3999. - Page 13 BATTERY TEST AC CURRENT (45 Hz to 500 Hz) Ranges: 200 µA, 2000 µA, 20 mA, 200 mA, Ranges: 1.5 V, 9 V Accuracy: ± (3.5% rdg + 2 dgts) Accuracy: ±(1.5% rdg + 5 dgts) on 200 µA NON-CONTACT VOLTAGE INDICATOR to 200 mA ranges ±(2.5% rdg + 5 dgts) on Sense voltage 70 V to 600 VAC (50 Hz to 2 A range...
- Page 14 TEMPERATURE 35XP Electrical Specifications Ranges: -20°C to 1000°C, -4°F to 1832°F (at 23°C ± 5°C, < 75% R.H.) Accuracy: ± (2.0% rdg +4°C) -20°C to 10°C DC VOLTS ± (1.0% rdg + 3°C)10°C to 200°C Ranges: 400 mV, 4 V, 40 V, 400 V, 1000 V ±...
- Page 15 35XP RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED...
- Page 16 35XP RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED...
- Page 17 35XP RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED...
- Page 18 35XP RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED 35XP RANGE HOLD CONTACT VOLTAGE ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED...
- Page 20 35XP RANGE HOLD ˚C 1000 1832 ˚F auto-off 1000V 600V Ω 300V Hz Temp 1000V 2A MAX 750V FUSED BATT MIN MAX HOLD CONTACT VOLTAGE 1000 200k 200m 1.5V 9V BATT 1000V 600V Ω 300V BATT 9V BATT 1.5V 1000V 200mA MAX 750V FUSED...
- Page 22 European customers please contact your distributor. Visit www.metermantesttools.com for • Catalog • Application notes • Product specifications • Product manuals PN 2095408 October 2003 © Wavetek Meterman Test Tools. All rights reserved. Printed in Taiwan. Please Recycle...
