3 Mounting

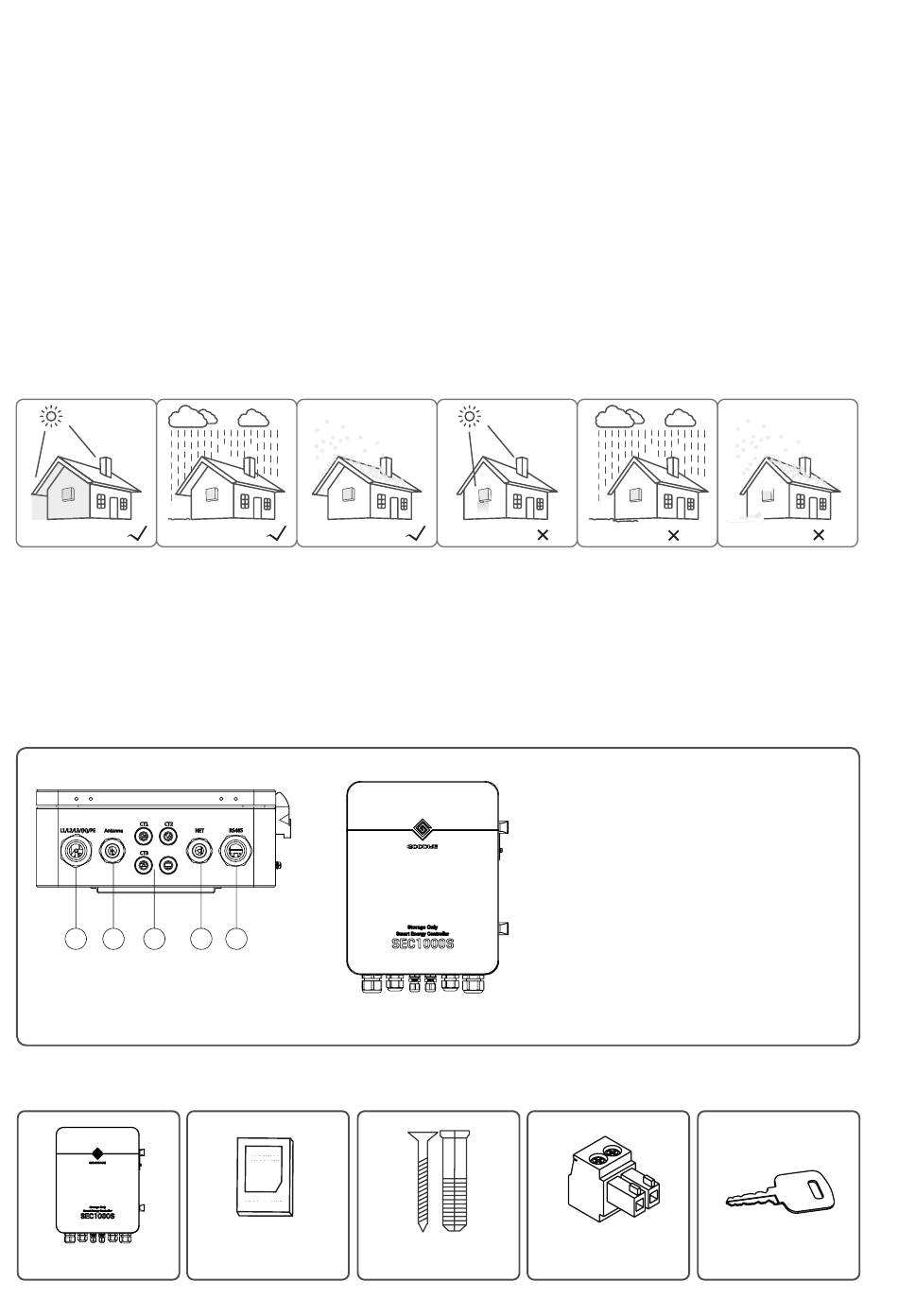

3.1 Mounting Instruction

• SEC1000S must be installed where there is no significant shaking, shock vibration and no direct
rain or snow.
• SEC1000S shall be installed at eye level for easy operation and maintenance.
• SEC1000S shoud not be installed near inflammable and explosive items.Any strong electro-
magnetic equipment should be kept away from installation site.
• SEC1000S shall be installed at a location free from explosive hazardous media and free from gas
and dust sufficient to corrode metals and destroy insulation.
• SEC1000S parameters and warning signs must be clearly visible after installation.
• SEC1000S should be installed without sunshine, rain and snow.
No sunlight
3.2 Overview and Packaging
After opening the package,confirm if it is consitent with specification of SEC1000S you purchased.
3.2.1 SEC1000S Overview
1 2 3
3.2.2 Package
SEC1000S×1
No rain No snow
4 5
User manual×1
Sunlight
Figure3.2.1
Expansion screw×3
Rain
1.AC voltage input port(L1/L2/L3/N/PE)
Note: SEC1000S supports the three-phase
four-wire grid structure only, which means
the Neutral wire is necessary.
2.GPRS antenna output port ( Antenna)
3.AC voltage output port(external CT)
4.LAN network port (NET)
5.Communication port of the
inverter(RS485)
2 Pin terminal×4
Snow
Key×4
