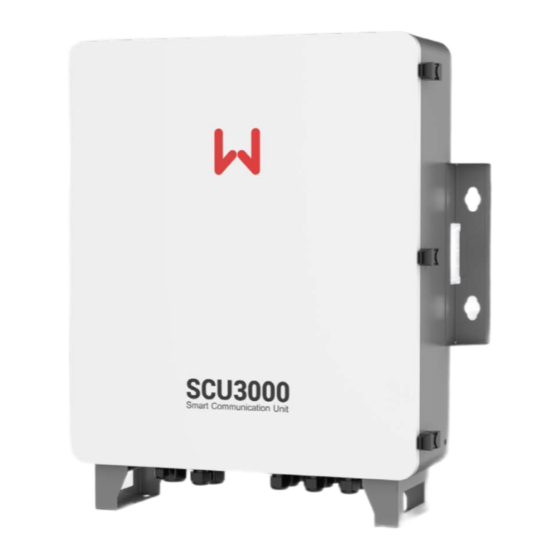

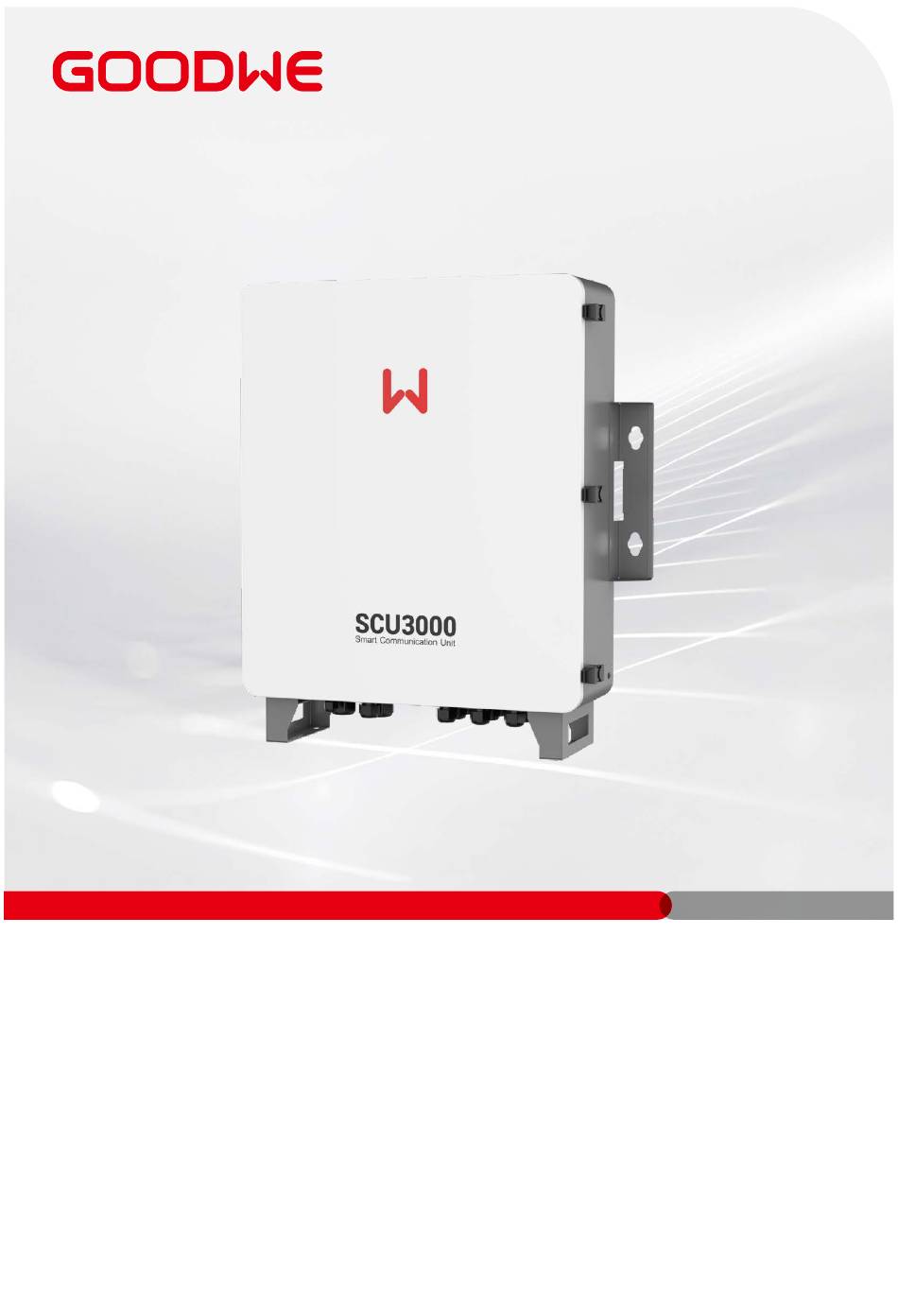

- Page 1 Quick Installation Guide Smart Communication Unit (SCU3000 SCU3000A) V1.1-2023-07-28...
-
Page 2: Safety Disclaimer
• Strictly follow the installation, operation, and configuration instructions in this guide and user manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, please visit https://en.goodwe.com/ warranty Safety Disclaimer WARNING •... -
Page 3: Cable Requirements
Cable Requirements Cable Silkscreen Cable Specification • Outdoor single core copper cable, withstand Three-phase AC voltage > 1000V L1, L2, L3 cable • Conductor cross-sectional area: 2.5mm -4mm (12AWG-10AWG) • Outdoor copper cable, withstand voltage > 300V Single-phase AC L, N •... -
Page 4: Eu Declaration Of Conformity
EU Declaration of Conformity GoodWe Technologies Co., Ltd. hereby declares that the equipment without wireless communication modules sold in the European market meets the requirements of the following directives: • Electromagnetic compatibility Directive 2014/30/EU (EMC) • Electrical Apparatus Low Voltage Directive 2014/35/EU (LVD) •... -
Page 5: Product Introduction
Product Introduction Parts Cabinet door Lock Mounting plate Grounding point Fixing hole Ventilation valve Cable routing hole Fixing hole... - Page 6 (Optional) PLC CCO Switch EzLogger module Fiber optic splice Power adapter Reserved installation place closure (FOSC) Grounding point for RS485 communication RS485 communica- Single-phase input switch terminal tion Three-phase input (Optional) Three- Surge protection module switch phase input switch Surge protection (Optional) Surge Grounding bar for module...
- Page 7 Dimensions 226mm 723mm (8.90in.) (28.46in.) 201mm 600mm (7.91in.) (23.62in.) 660mm (25.98in.) 488mm (19.21in.)
-
Page 8: Installation
Installation x 16 N=Quantity depends on Smart Communication Unit model. Space Requirements Children No Touch 200mm 200mm (7.87in.) (7.87in.) 200mm (7.87in.) 200mm (7.87in.) 200mm (7.87in.) 500mm (19.69in.) - Page 9 Mounting on the Wall D: 70mm φ: 5mm (2.76in.) (0.59in.) 30mm (1.18in.)
- Page 10 Mounting around the Pole 660mm (25.98in.) 180mm (7.09in.) 42N·m Mounting on the Bases Vertically φ: 15mm (0.59in.) D: 70mm (2.76in.) 42N·m...
- Page 11 Opening the Cabinet Door...
-
Page 12: Electrical Connection
Electrical Connection Waterproof Connectors Silkscreen Cable through waterproof connectors Max dimension of cable PE cable 18mm (0.71in.) AC INPUT Single-phase AC cable DO signal cable 23mm (0.91in.) DI signal cable AI signal cable and PT signal cable PLC1/PLC2 Three-phase AC cable 25.4mm (1in.) RS485 communication cable / Ethernet RS485/ETH... - Page 13 PE Cable Outside L=L1+(1-2)mm 3N·m (Optional) PE Cable Inside L=L1+(1-2)mm 5N·m...
- Page 14 Three-Phase AC Input Cable 190mm~210mm (7.48in.~8.27in.) 3-3.5N·m Multi-core cable ≤600m (9.84ft) (1968.50ft) MV Station Inverter Single-core cable ≤500m (9.84ft) (1640.4ft) ≤1m MV Station Inverter (3.28ft)
- Page 15 Single-Phase Power Cable 170mm~190mm (6.69in.~7.48in.) 0.8-0.85N·m RS485 Cable Port Silkscreen Port Definition Port Silkcreen Port Definition RS485-1A RS485-5A RS485-1 RS485-5 RS485-1B RS485-5B RS485-2A RS485-6A RS485-2 RS485-6 RS485-2B RS485-6B RS485-3A RS485-7A RS485-3 RS485-7 RS485-3B RS485-7B RS485-4A RS485-8A RS485-4 RS485-8 RS485-4B RS485-8B 6.5mm 25mm 1.6N·m...
- Page 16 Optical Fiber The connection and fusion of the optical fiber shall be carried out by professionals. Fiber Optic Splice Closure -12 ports RX_2 TX_2 RX_1 TX_1 Fiber Optic Splice Closure -24 ports RX_2 TX_2 RX_1 TX_1 DO/DI/AI/PT100/PT1000 Cable The equipment reserves "DO", "DI", "AI", "ETH" and "PT100/ PT1000" waterproof connectors to route the corresponding signal cables.
-
Page 17: Power On And Off
Power On and Off • Only use Switch 2 and 4 when the equipment is in PLC communication. • Only use the switches within the red dotted line when the equipment is in PLC communica- tion and connected to a double split transformer. Power ON Power OFF Turn on... - Page 18 Closing the Cabinet Door Commissioning via WEB Please refer to EzLogger3000U User Manual for configurations. For more detailed instructions, scan the QR codes below. EzLogger3000U SCU3000 & SCU3000A User Manual User Manual...
- Page 19 Official Website GoodWe Technologies Co., Ltd. No. 90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com 340-00949-01 Local Contacts service@goodwe.com...
