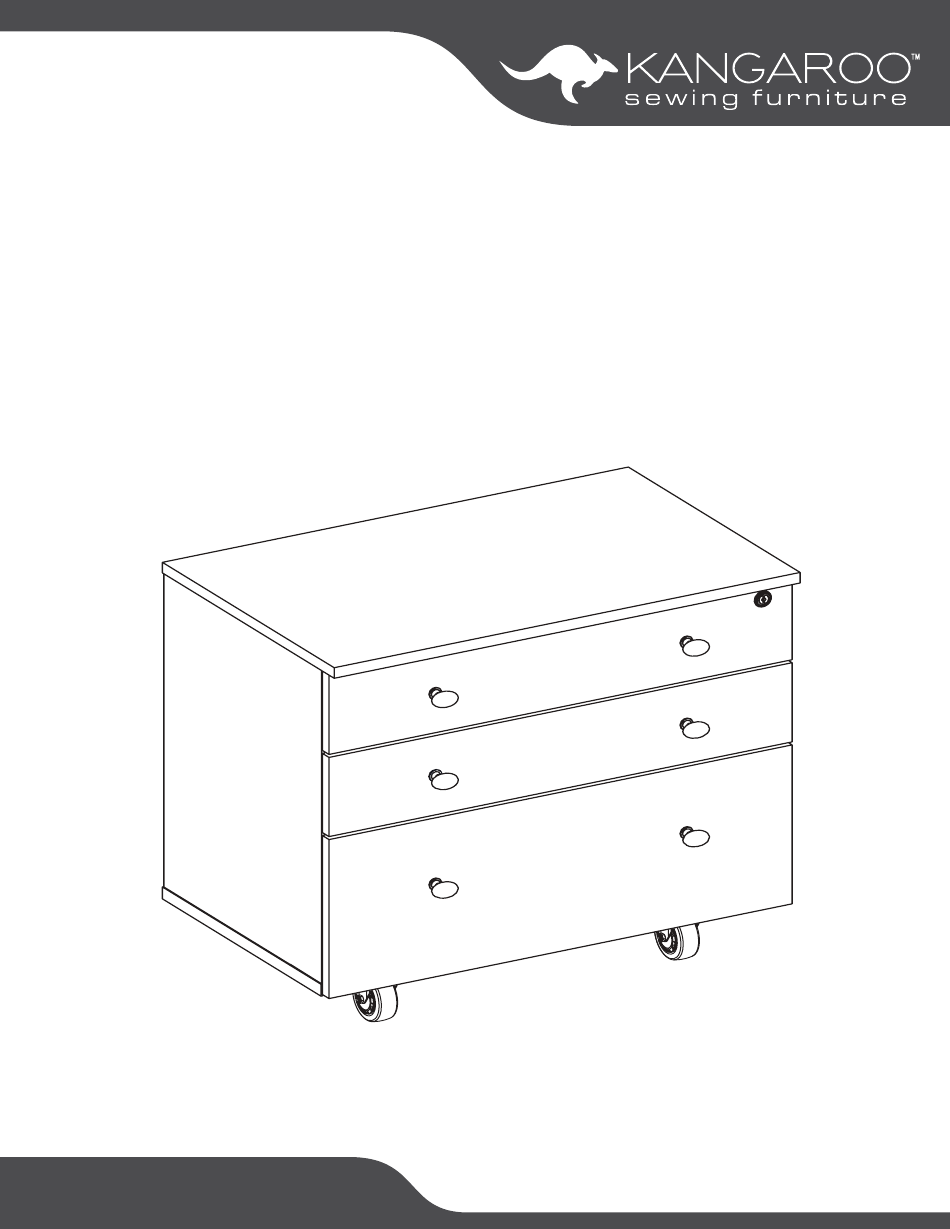

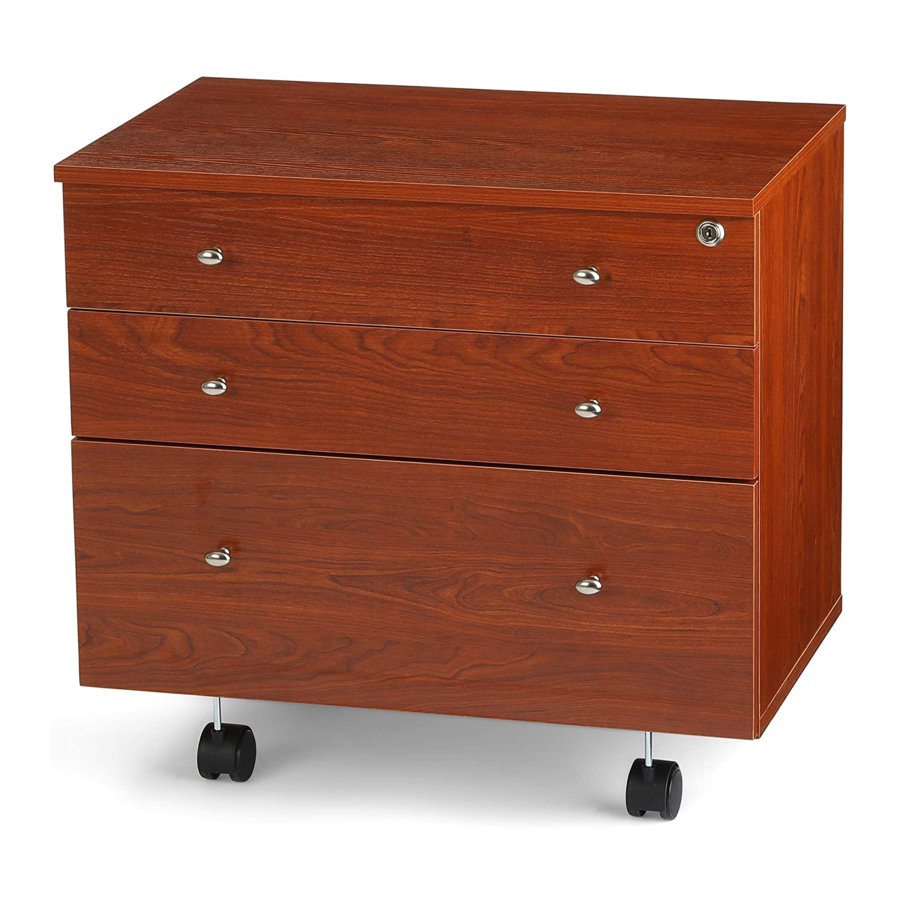

- Page 1 ASSEMBLY INSTRUCTIONS J o ey I I ITEM NO.: K7805 Teak K7811 Ash White SEW IN COMFORT. SEW LONGER.™...
-
Page 2: General A Ssembly Guidelines
Your cabinet normally requires a minimum amount of maintenance; however, it is worth noting the following for regular cleaning: To remove marks and enhance the surface, wipe with a gentle all-purpose cleanser. DO NOT use ammonia-based, harsh chemicals or abrasive cleaning agents. Wipe dry immediately. Joey II Assembly Instructions... -
Page 3: Item Description
1 of 1 Large Right Drawer Side 1 of 1 Small Drawer Front 1 of 1 Large Drawer Back 1 of 1 Small Locking Drawer Front 1 of 1 Small Left Drawer Side 1 of 1 Joey II Assembly Instructions... -
Page 4: Par Ts List: Hardware
8x30 Dowel Pin x20 4x20 Fix Bolt x6 Cam Cover 8x16 Fix Bolt x16 Allen Wrench x1 3.5x14 Screw 3.5x35 Screw Plate Caster x2 Locking Plate Caster x2 Knob x6 Lock x1 Pre-installed parts Drawer Runners Joey II Assembly Instructions... - Page 5 Par t 1: Cabinet Shell We can’t wait to get your brand new Joey II Storage Cabinet up and running. Please contact our Customer Service Team at 1-800-533-7347, ext. 1 during normal business hours with any assembly related questions. Attach t1 Plate Casters to front underside of Panel G using b1 Fix Bolts.
- Page 6 Attach c1 Cam Bolts to Panel X Attach c1 Cam Bolts to Panel Z Insert d1 Dowels into edges of Panel X Insert d1 Dowels into edges of Panel Z Insert d1 Dowels into edges of Panel D Joey II Assembly Instructions...
- Page 7 Tighten cam locks and apply c2 Cam Covers. Make sure the casters are locked and turn the cabi- net over onto its wheels. NOTE: You may need a friend to help you, but it is not required. Joey II Assembly Instructions...
- Page 8 Cam Cover 6x35 Cam Bolt Insert c1 Cam Bolts into Panel A. Lower Panel A, inserting cam bolts on Panel A onto cams on Panels X, D and Z. Tighten cam locks and apply c2 Cam Covers. Joey II Assembly Instructions...
- Page 9 Attach L Lock to Panel LL with s1 Screws. Be sure to install the lock mechanism exactly as shown. Press the trim kit around the lock mechanism on the front side of Panel LL as shown. Insert d1 Dowels into the edges of Panels K1 and K2. Joey II Assembly Instructions...
- Page 10 Par t 2: Drawers Remove the end screws on drawer runners on Panels L1 and L2 and tilt. This will allow you to access pilot holes to attach the drawer back. Joey II Assembly Instructions...
- Page 11 Panels L1 and L2. Attach side Panels L1 and L2 to front Panel LL. Tighten cams and apply c2 Cam Covers. Attach back Panel L3 using s3 Screws. Realign drawer runners and replace screws. Joey II Assembly Instructions...
- Page 12 Panels L1 and L2. Attach side Panels L1 and L2 to front Panel L. Tighten cams and apply c2 Cam Covers. Attach back Panel L3 using s3 Screws. Realign drawer runners and replace screws. Joey II Assembly Instructions...
- Page 13 Attach side Panels K1 and K2 to Slide drawer bottom Panel L4 into front Panel K. Tighten cams and the grooves on Panels K1 and K2. apply c2 Cam Covers. Attach back Panel K3 using s3 Screws. Joey II Assembly Instructions...
- Page 14 Be sure that the silver ball bearing pieces are positioned all the way to the front of the rails. TIP: Gently open and close the drawers a few times to engage the Soft Close mechanism. Joey II Assembly Instructions...
-
Page 15: Limited Lifetime Warranty
Kangaroo Sewing Furniture is designed for residential use only. ARROW SHALL HAVE NO LIABILITY for ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND and all such damages are EXCLUDED FROM THIS Warranty, such as loss of use, disassembly, transportation, labor, or damage to property on or near the product. - Page 16 Accessories to Complete Your Sewing Studio Custom Insert Arrow Sewing Chairs Enhance your sewing experience with a custom Arrow’s #1 Rated Height Adjustable Sewing Chair acrylic sewing insert! Custom acrylic sewing is a must have accessory for your dream sewing inserts are designed to fill the gap between your room! Cute, comfortable and convenient - our sewing machine and sewing cabinet’s lift opening...
