Level-Up
5th Wheel
®
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Level-Up 5th Wheel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lippert Components Level-Up 5th Wheel

Summary of Contents for Lippert Components Level-Up 5th Wheel

  • Page 1 Level-Up 5th Wheel ® OWNER'S MANUAL...

  • Page 2: Table Of Contents

    12V DC motor Hydraulic fluid reservoir tank Control valve manifold D. Solenoid valve System Controls Touch pad can be operated in manual mode or fully automatic mode. Contact Lippert Components, Inc. to obtain replacement parts. Page 2 Rev: 09.15.20 CCD-0001531...

  • Page 3: Additional Information Sources

    The Level-Up LCD 5th Wheel Leveling System is designed as a leveling system only and should not be used for any reason to provide service under the trailer, e.g. changing tires or servicing the leveling system. Lippert Components Inc. recommends trained professionals be employed to change the tires or perform other services on the 5th Wheel.

  • Page 4: Preparation

    Preparation A fluid leak within a highly pressurized hydraulic system can cause serious skin-penetrating injuries. Wear appropriate Personal Protective Equipment (PPE), such as long sleeves, gloves, protective eyewear or a full face shield, when performing service or maintenance to the 5th Wheel. The “CAUTION”...

  • Page 5: Unhitching Instructions

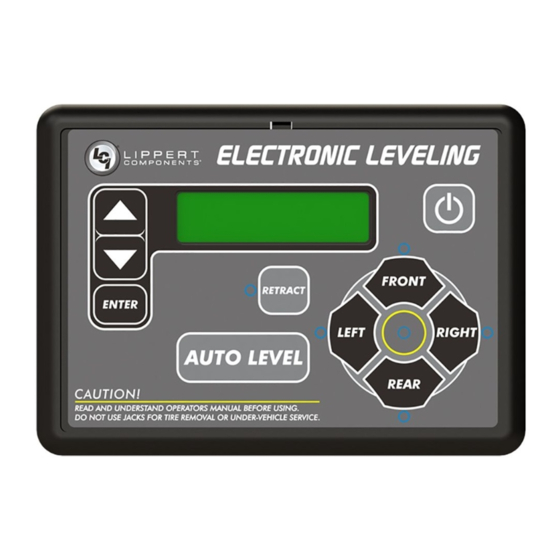

    Unhitching Instructions Press Power button , (Fig. 1K) to turn system on. The LCD screen (Fig. 1E) lights up. The LCD will display “NOT LEVEL; Jacks: UP” (Fig. 1E). Orange arrow lights (Fig. 1L) may come on, indicating the current disposition of the trailer. Press FRONT button (Fig.

  • Page 6: Auto Level Sequence

    Auto Level Sequence Note: Prior to unhitching from the tow vehicle, make sure trailer is parked on a level surface and the tires are chocked. After unhitching from tow vehicle, press AUTO LEVEL (Fig. 1F). Note: Pressing any button during an Auto Level sequence will abort the auto leveling cycle. Note: In order for the hitch recognition feature to function, the auto level sequence MUST be started with the front of the trailer above level.

  • Page 7: Manual Override

    Error Codes LCD Message What's Happening? What Should Be Done? Check and secure controller placement. Controller not properly secured. "EXCESS ANGLE" Relocate the 5th Wheel. Excessive angle reached during auto operation. Check and secure controller placement. Controller not properly secured. "EXCESSIVE ANGLE"...
  • Page 8 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Protective Label Fig. 6 Page 8 Rev: 09.15.20 CCD-0001531...

  • Page 9: Zero Point Calibration

    Zero Point Calibration The "Zero Point" is the programmed point to which the 5th Wheel will return whenever the auto-level feature is used. The Zero Point is preset at the factory and should never have to be reset. However, if necessary, Zero Point can be reset.

  • Page 10: Maintenance-General

    Automatic transmission fluid (ATF) with Dexron®III or Mercon® V or a blend of both is recommended by Lippert Components, Inc. For a listof approved fluid specifications, see TI-188. To obtain this Technical Information sheet on-line, go to http https://lci-support-lci4a3lcd. Then click on the Technical Information sheets tab.

  • Page 11: Wiring Diagram - 6-Point Level Up

    Wiring Diagram - 6-Point Level Up Controller LCD Touchpad Pressure Switch Rear Sensor Landing Gear Fuse Road Side Valve Dual Polarity Solenoid Curb Side Valve 50-100 amp Protection per RVIA Standards and OEM Requirements. Power Unit Battery Page 11 Rev: 09.15.20 CCD-0001531...

  • Page 12: Plumbing Diagram - 6-Point Level Up

    Plumbing Diagram - 6-Point Level Up Orange Landing Gear Black Valve Power Unit Pressure Switch Valve Extend Valve Block Leveling Mid Jack Retract Valve Block Leveling Mid Jack Leveling Jack Leveling Jack Page 12 Rev: 09.15.20 CCD-0001531...

  • Page 13: Notes

    Notes Page 13 Rev: 09.15.20 CCD-0001531...
  • Page 14 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (LCI). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided.  Any unauthorized use shall void any applicable warranty. ...
