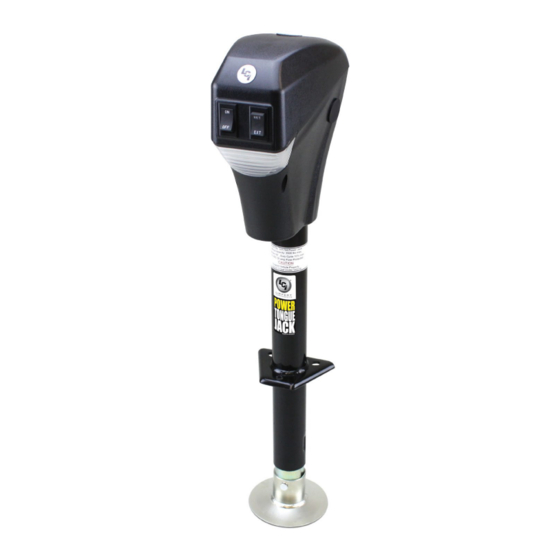

- Page 1 P���� T����� J��� INSTALL MANUAL Page 1 Rev: 09.29.2015 Power Tongue Jack Install Manual...
- Page 2 Safety and System Information Safety Information The “WARNING” symbol above is a sign that an installation procedure has a safety risk involved and may cause death or serious injury if not performed safely and within the parameters set forth in this manual. Always wear eye protection when performing this installation procedure.
- Page 3 The coach MUST be supported per OEM specifications before working underneath. Failure to do so may result in death or serious injury. Installation Carefully slide the jack leg (Fig. 2A) through the hole in the coupler (Fig. 2B) on the travel trailer “A” frame (Fig.
- Page 4 Secure the Power Tongue Jack to the coupler plate with three (3) 3⁄8" - 16x1; Serrated Flange Grade 5 Zinc coated bolts (Fig. 4). Fig. 4 Connect the red power wire from the Power Tongue Jack housing to a grounded 12V power supply on the travel trailer.
- Page 5 Notes Page 5 Rev: 09.29.2015 Power Tongue Jack Install Manual...
- Page 6 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
