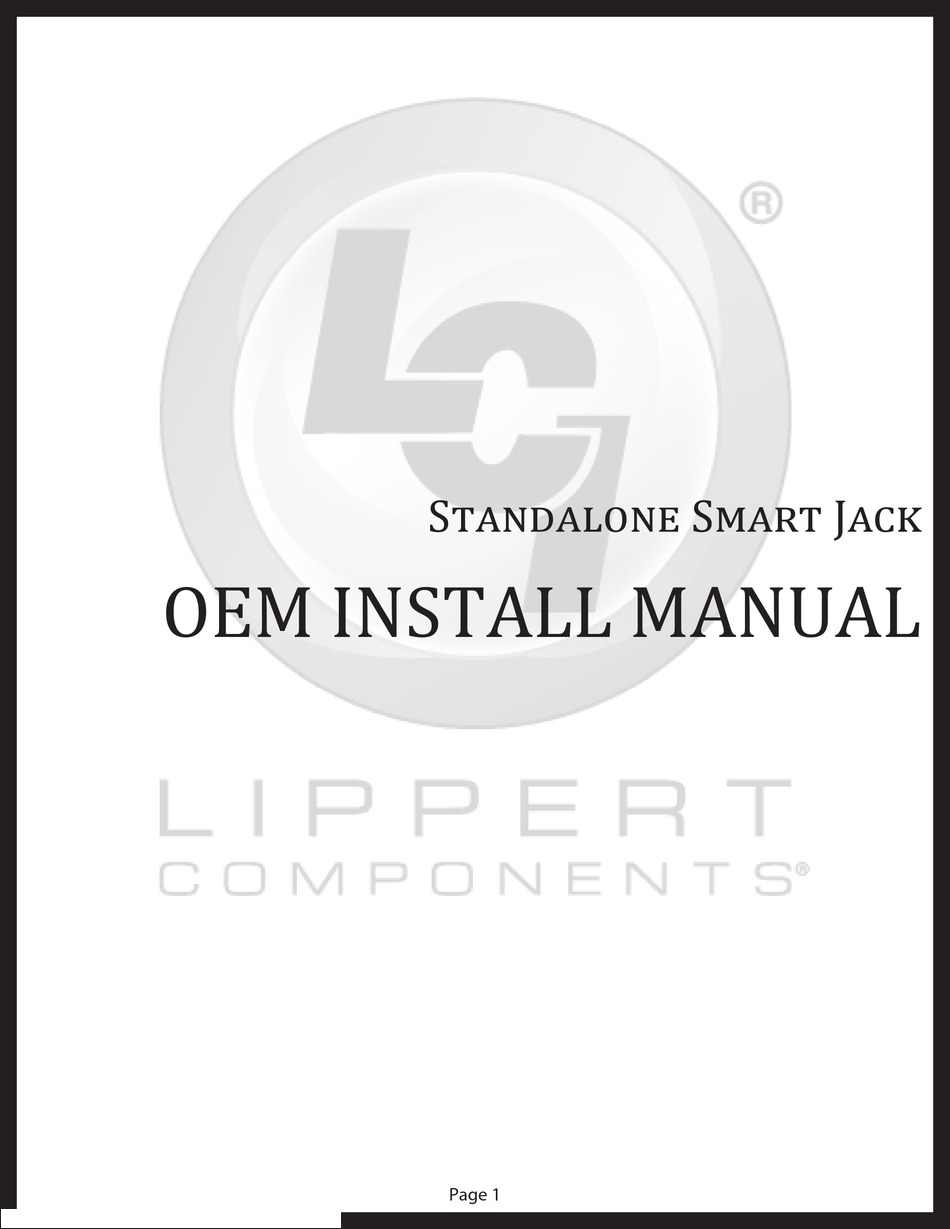

- Page 1 Standalone Smart Jack OEM INSTALL MANUAL Page 1 Rev: 09.23.2016 Standalone Smart Jack OEM Install Manual...
- Page 2 Internal controls allowing operation with the touch pad buttons located on the Smart Jack. This includes hitch height memory. Resources Required • Cordless or Electric Drill or Screw Gun • Appropriate Drive Bits • 1/2" Socket Page 2 Rev: 09.23.2016 Standalone Smart Jack OEM Install Manual...
- Page 3 Failure to do so may result in death or serious injury. Carefully slide the jack leg (Fig. 2A) through the hole in the coupler (Fig. 2B) on the trailer A-frame (Fig. 2C). Fig. 2 Page 3 Rev: 09.23.2016 Standalone Smart Jack OEM Install Manual...
- Page 4 Reattach the foot pad to the jack leg by sliding the foot pad back over the bottom of the jack leg and securing it with the previously-removed clevis pin and hairpin cotter pin. Fig. 4 Page 4 Rev: 09.23.2016 Standalone Smart Jack OEM Install Manual...
- Page 5 Press the down arrow 3 times. On the 3rd time, hold the down arrow for 3-5 seconds. The jack will then begin auto retracting from the hitch height into the fully-stowed position for travel. Page 5 Rev: 09.23.2016 Standalone Smart Jack OEM Install Manual...
- Page 6 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
