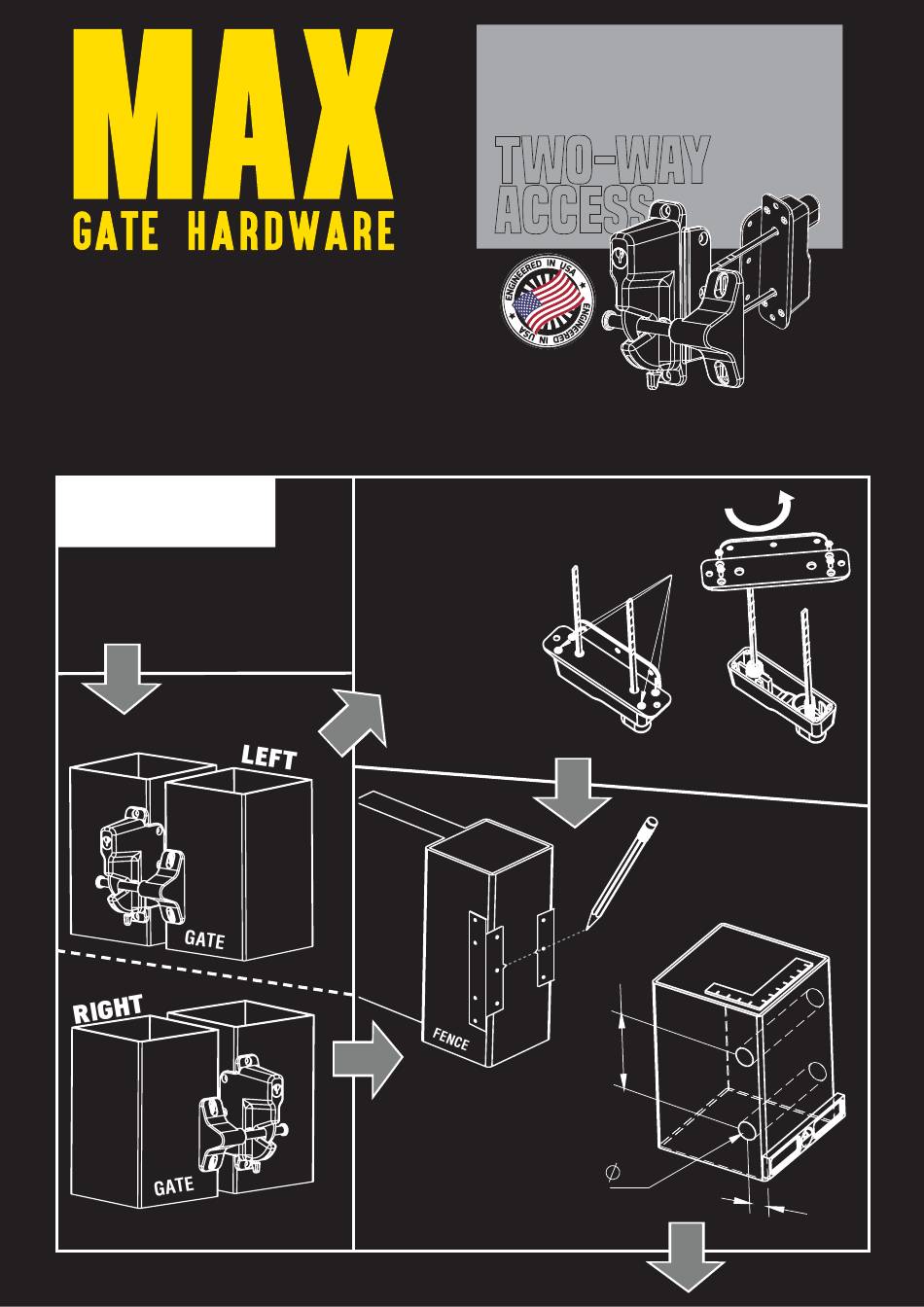

START
The Latch comes ready
Left or
for Right-Handed gates. A
few simple steps and the
Right?
Latch is ready for
Left-Handed gates.
Viewed from
inside the Property
View from inside the Property

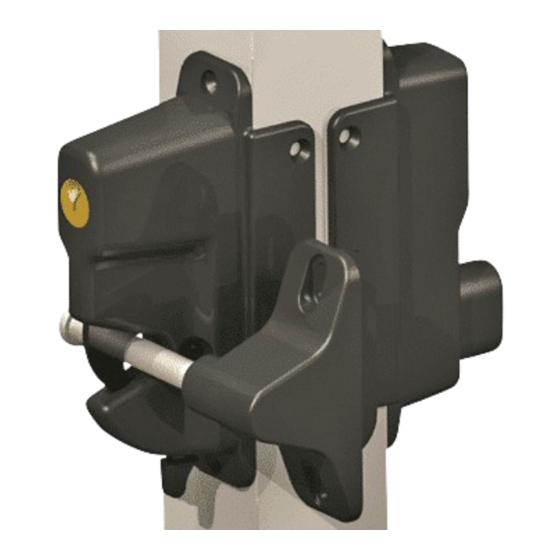

GRAVITY
Latch
Two-Way
Access
- Suits 50 - 125mm Posts
- Lock-unlock either side
- Lock-down mode –
won't open
without key
Make these changes for
Left-Hand Gates.
Rotate the base
180° on both
Latch and the
Button.
IMPORTANT:
Be careful not
to disturb inner
components.
Drill two Ø16mm spindle holes.
Drill all other holes to Ø3mm.
Make sure they're square & level.
won't open
DPG200
without key
180°
Undo
screws
Mark Latch position on
the side of fence post.
Set template point on
pencil line. Mark all holes
on both sides of post.
70
16
16
31/08/16
Advertisement
Related Manuals for Max Keystone Series
Summary of Contents for Max Keystone Series
- Page 1 GRAVITY Latch Two-Way Access - Suits 50 - 125mm Posts - Lock-unlock either side - Lock-down mode – won’t open DPG200 won’t open without key without key START 180° Make these changes for Left-Hand Gates. Undo screws Rotate the base The Latch comes ready Left or 180°...
- Page 2 Continued Trim Spindles Lock Protrudes Button Spindle Button Spindle Protrudes 13mm Use one screw to hold Button body on Trim both Spindles using the trim fence post. marks. POST (mm) TRIM MARK Trim plastic tubes to match post depth and insert. Check both sides are unlocked.
- Page 3 50 to 125...
- Page 4 MANUFACTURER’S WARRANTY NATIONWIDE INDUSTRIES Tampa, Florida 33619 USA Keystone® Series Latches Note: Swimming pool gates, fences and their hardware systems are designed to aid and not subsi tute for adult supervision. To the extent this product is used around a pool, prior to installing, consult local licensing and safety authorii es for approvals and/ or requirements.
