Max DPG200 Quick Start Manual

GRAVITY
Latch
Two-Way
Access
START
The Latch comes ready
Left or
for Right-Handed gates. A
few simple steps and the
Right?
Latch is ready for
Left-Handed gates.
Viewed from
inside the Property
- Suits 50 - 125mm Posts
- Lock-unlock either side
- Lock-down mode –
won't open
without key
16
View from inside the Property
GRAVITY
Latch
Two-Way
Access
- Suits 50 - 125mm Posts
- Lock-unlock either side
- Lock-down mode –
won't open
without key

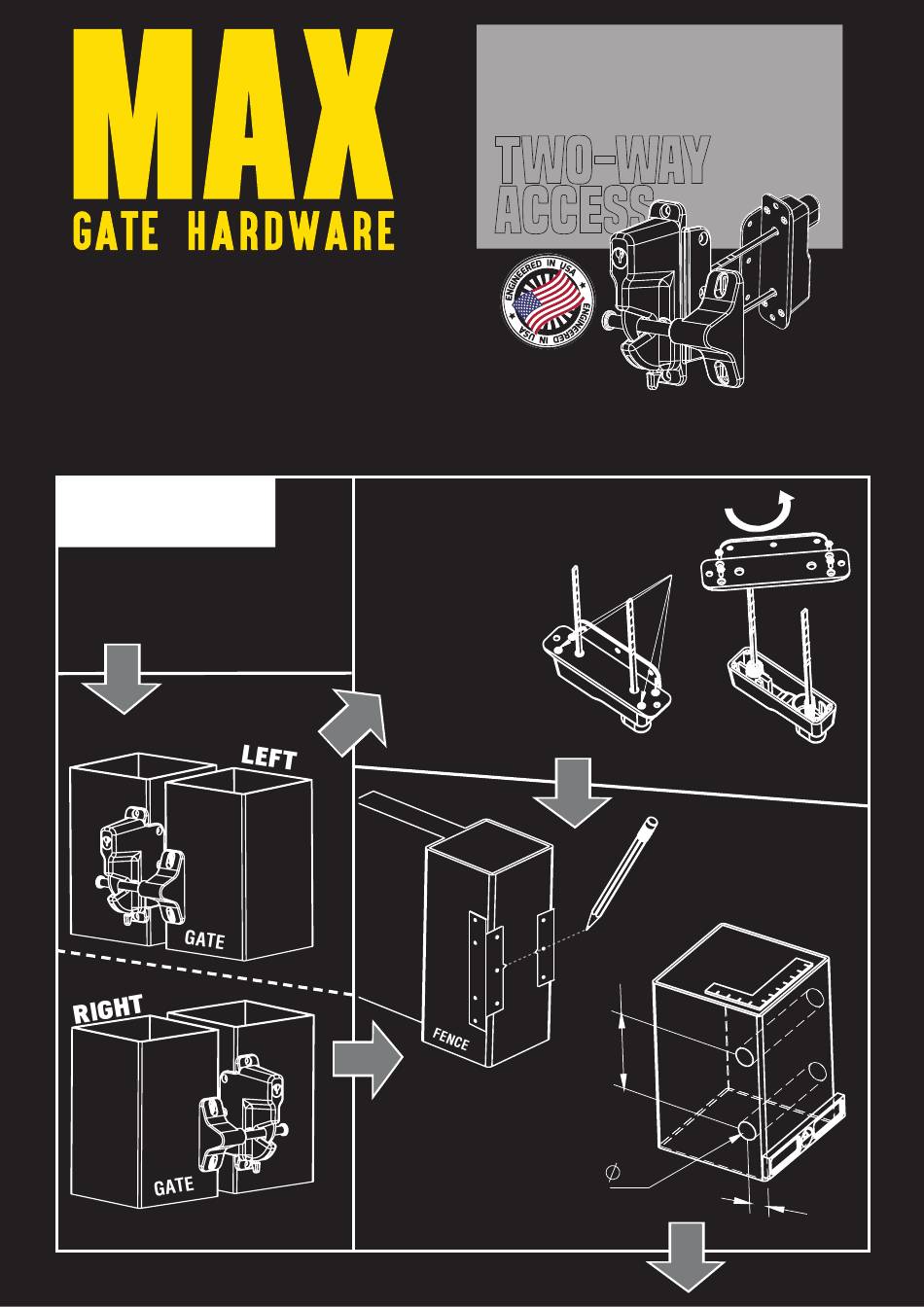

Make these changes for
Left-Hand Gates.
Rotate the base
180° on both
Latch and the
Button.
IMPORTANT:
Be careful not
to disturb inner
components.
DPG200
Drill two Ø16mm spindle holes.
Drill all other holes to Ø3mm.
Make sure they're square & level.
GRAVITY
Latch
Two-Way
Access
- Suits 50 - 125mm Posts
- Lock-unlock either side
- Lock-down mode –
won't open
without key
180°
Undo
screws
Mark Latch position on
the side of fence post.
Set template point on
pencil line. Mark all holes
on both sides of post.
70
16
16
DPG200
DPG200
