Randell PT-W-L Series Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
2016 Gees Mill Road, Suite 200, Conyers, GA 30013
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING R290 flammable refrigerant in use. Improper installation,
adjustment, alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION
MODEL LENGTH
UNIT
PT48-18W-L
48" 33"
PT60-24W-L 60" 33"
PT72-30W-L
72" 33"
PT84-36W-L
84" 33"
DEPTH HEIGHT
OVERALL WITH WORK OVERALL
CUTTING BOARD SURFACE COVER OPEN
36.125" 34.75" 49"
36.125" 34.75" 49"
36.125" 34.75" 49"
36.125" 34.75" 49"
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified
Brands recommends referencing our product line websites, unifiedbrands.net, for the most updated product information
and specifications. © 2018 Unified Brands. All Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover
Corporation.
This manual provides information for:

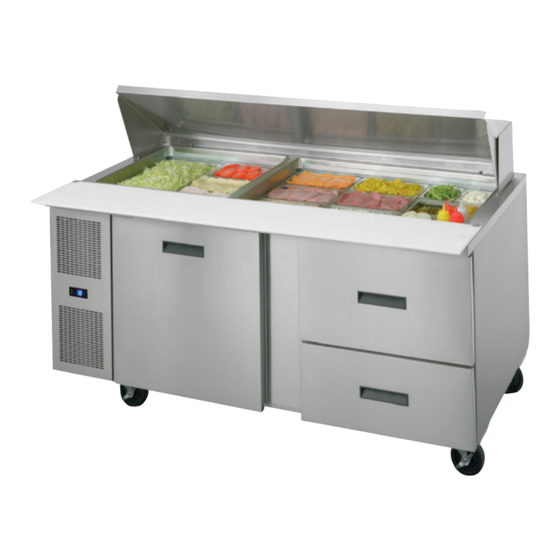

PT-W-L SERIES PREP TABLES
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE: Due to a continuous program of product improvement, Unified Brands
reserves the right to make changes in design and specifications without prior notice.
NOTICE: Please read the entire manual carefully before installation. If certain
recommended procedures are not followed, warranty claims will be denied.
MODEL NUMBER _________________________
SERIAL NUMBER _________________________
INSTALLATION DATE ______________________
The serial number is located in the cabinet left side
or back wall closest to the compressor compartment
under the drawer track. An example is shown here.
PAN
STORAGE
CAPACITY DOORS
CU. FT.
1/6 SIZE
18 (2) 18" 10.1
24 (1) 21", (1) 27" 14.7
30 (2) 27" 19.2
36 (1) 18", (2) 27" 24.15
PART NUMBER PP MNL2105, REV. A (09/21)
VOLT/
HP CYCLE/ AMPS NEMA PLUG
PHASE
1/5 115/60/1 3.5 5-15P
1/4 115/60/1 3.5 5-15P
1/4 115/60/1 3.5 5-15P
1/4 115/60/1 3.5 5-15P
SHIP WT.
411
456
502
565
