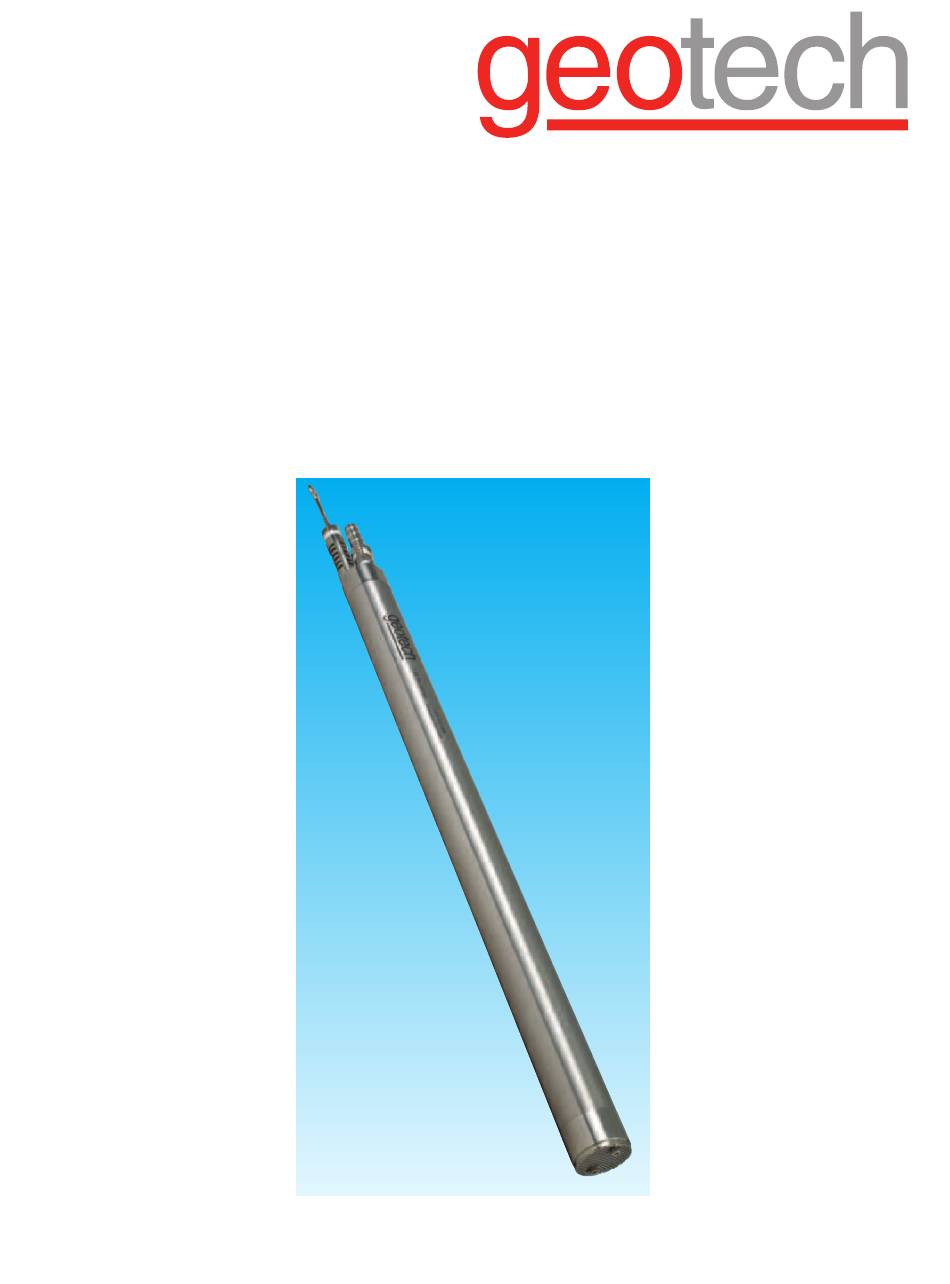

- Page 1 Geotech 1.66 Reclaimer Installation and Operation Manual Rev 06/10/12 Part# 26600222...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CHAPTER 1: SYSTEM DESCRIPTION ..................3 FUNCTION AND THEORY ....................3 CHAPTER 2: SYSTEM INSTALLATION ..................4 CHAPTER 3: SYSTEM OPERATION..................5 CHAPTER 4: SYSTEM MAINTENANCE ..................7 CHAPTER 5: SYSTEM TROUBLESHOOTING ................9 CHAPTER 6: SYSTEM SPECIFICATIONS................10 CHAPTER 7: REPLACEMENT PARTS LIST................12 THE WARRANTY ........................14 EQUIPMENT RETURN POLICY....................14 EQUIPMENT DECONTAMINATION..................14... - Page 3 DOCUMENTATION CONVENTIONS This manual uses the following conventions to present information: An exclamation point icon indicates a WARNING of a situation or condition that could lead to personal injury or death. You should not proceed until you read and thoroughly understand the WARNING message. WARNING A raised hand icon indicates CAUTION information that relates to a situation or condition that could lead to equipment malfunction or damage.
-
Page 4: Chapter 1: System Description
Chapter 1: System Description Function and Theory The Geotech Reclaimer can be configured as a Top fill, Bottom fill, or Top and Bottom fill fixed intake, positive air displacement pump. The Geotech Reclaimer is designed for total fluids, hydrocarbon, leachate, and condensate recovery. The Geotech Reclaimer is designed to with- stand most aggressive down well environments including highly corrosive fluids without fear of material breakdown or failure. -
Page 5: Chapter 2: System Installation
If pump configuration was not assembled as a complete system, please use the following steps: Attach air supply hose to Geotech pneumatic controller air supply fitting. Ensure all hoses are installed properly and securely to the fittings. Attach the safety cable to the support loop using proper crimps or cable clamps. -
Page 6: Chapter 3: System Operation
TOP FILL The Top Fill Reclaimer is placed in a recovery well with the top inlet submerged below static groundwater. Combined with the Geotech Pneumatic Controller, the Reclaimer cyclically fills and empties. Well recharge rate and time sequence settings on the Geotech Pneumatic Controller will affect the maintainable fluid level. - Page 7 Controller To Compressor Product/Liquid Discharge Air Supply Cone of Depression Figure 3 1.66" Reclaimer...
-
Page 8: Chapter 4: System Maintenance
Chapter 4: System Maintenance The Geotech Reclaimer has been designed to be virtually maintenance free. In the event clogging occurs in the pump or trapped particulate in the check ball seats, disassemble the Reclaimer pump and rinse with soapy or clean water to dislodge any matter. The Reclaimer is constructed of 300 series stainless steel and PTFE to provide many years of continued serv- ice with minimal maintenance. - Page 9 Top Fill Bottom Fill Figure 4...
-
Page 10: Chapter 5: System Troubleshooting
Chapter 5: System Troubleshooting Problem: Pump does not discharge fluid to the surface. Solutions: 1. Check controller to ensure it is functioning properly. Consult controller manual. 2. Ensure that the air pressure is adequate enough to overcome the total dynamic head pressure the pump is working against. -
Page 11: Chapter 6: System Specifications
Air Supply ....¼" - ⁄ " Dimensions - in. (cm) Weight Volume/Cycle Max. Flow Rate 1.66 Reclaimer lbs. (kg) gallons (L) GPM (LPM) 24" Top Fill 24 (61) 30.25 (76.8) - Page 12 NOTES...
-
Page 13: Chapter 7: Replacement Parts List
16600217 HOSEBARB, SS6, 1/4 x 1/8 MPT 17200072 HEAD, RECLAIMER, 1.66, CAP, UPPER 26600217 PIPE, CENTER, SS4, 1/4 x 24, 1.66 RECLAIMER 26600213 PIPE, CENTER, SS4, 1/4 x 36,1.66 RECLAIMER 26600214 PIPE CENTER, SS4, 1/4 x 48" 1.66 AR 26600062 HOUSING, RECLAIMER, 1.66, SS4, 24"... - Page 14 System Components Figure 5...
-
Page 15: The Warranty
Geotech agrees to repair or replace, at Geotech’s option, the portion proving defective, or at our option to refund the purchase price thereof. Geotech will have no warranty obligation if the product is subjected to abnormal operating conditions, acci- dent, abuse, misuse, unauthorized modification, alteration, repair, or replacement of wear parts. - Page 16 Geotech Environmental Equipment, Inc. 2650 East 40th Avenue • Denver, Colorado 80205 (303) 320-4764 • (800) 833-7958 • FAX (303) 322-7242 email: sales@geotechenv.com website: www.geotechenv.com...
