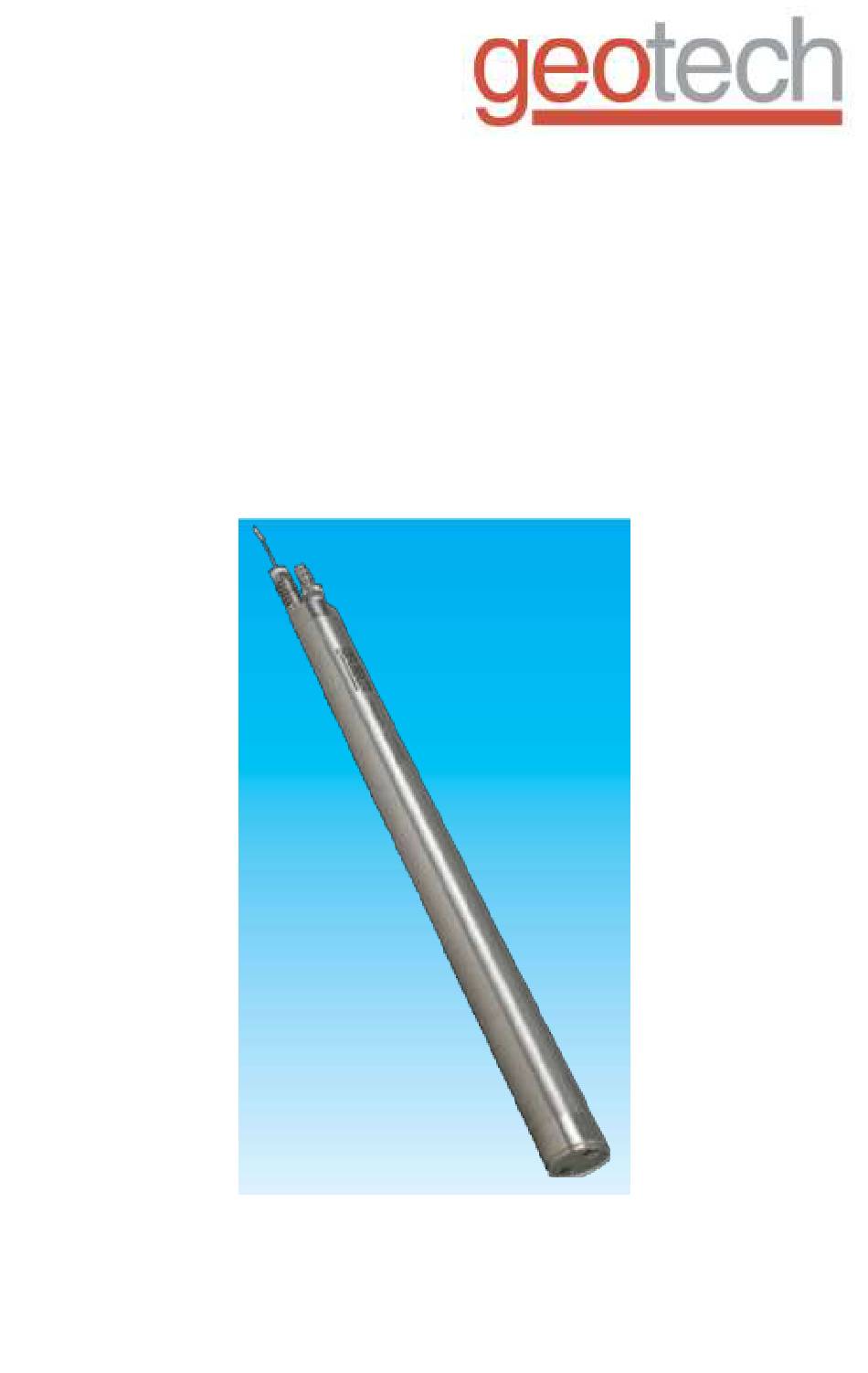

- Page 1 Geotech 1.66 Reclaimer Installation and Operation Manual Rev 2/14/17 Part # 26600222...
-
Page 3: Table Of Contents
Table of Contents DOCUMENTATION CONVENTIONS ..............2 Section 1: System Description ................3 Section 2: System Installation ................4 Section 3: System Operation ................4 Section 4: System Maintenance ................. 5 Section 5: System Troubleshooting ..............7 Section 6: System Specifications ..............8 Section 7: Replacement Parts List .............. -
Page 4: Documentation Conventions
DOCUMENTATION CONVENTIONS This uses the following conventions to present information: An exclamation point icon indicates a WARNING of a situation or condition that could lead to personal injury or death. You should not proceed until you read and thoroughly understand the WARNING message. -
Page 5: Section 1: System Description
Section 1: System Description Function and Theory The Geotech 1.66 Reclaimer can be configured as a Top Fill, Bottom Fill, or Top and Bottom Fill fixed intake, positive air displacement pump. The Geotech 1.66 Reclaimer is designed to withstand the most aggressive down well environments including highly corrosive fluids without fear of material breakdown or failure. -
Page 6: Section 2: System Installation
Attach the safety cable to the support look using proper crimps or cable clamps. The 1.66 Reclaimer can now be lowered into the recovery well. For optimum efficiency, the 1.66 Reclaimer must be positioned in the well with intake adequately submerged. -
Page 7: Section 3: System Operation
30’ (9m) of head would need a minimum of 25 PSI (1.7 bar). Consult a controller manual for air pressure requirements needed. The Top Fill configuration for the 1.66 Reclaimer is placed in a recovery well with the top inlet submerged below static groundwater. Combined with the Geotech Pneumatic Controller, the 1.66 Reclaimer cyclically fills and empties. -
Page 8: Section 4: System Maintenance
Section 4: System Maintenance The Geotech 1.66 Reclaimer has been designed to be virtually maintenance free. In the event clogging occurs in the pump or trapped particulate in the check ball seats, disassemble the 1.66 Reclaimer pump and rinse with clean water to dislodge any matter. -
Page 9: Section 5: System Troubleshooting
Section 5: System Troubleshooting Problem: Pump does not discharge fluid to the surface. Solutions: Check the controller to ensure it is functioning properly. Consult controller manual. Ensure that the air pressure is adequate to overcome the total dynamic head pressure the pump is working against. -
Page 10: Section 6: System Specifications
2” (5cm) Min. Well Inner Diameter Operating Pressure Range 10-300 PSI (.7 - 20.7 bar) Fittings Stainless Steel 1/2" – 3/4" Fluid Discharge 1/4" – 3/8” Air Supply Figure 6-1: 1.66 Reclaimer Specification Diagram *Refer to Table 6-1: 1.66 Reclaimer Specifications... - Page 11 Table 6-1: 1.66 Reclaimer Specifications Max. Flow Dimensions - in. (cm) Weight lbs. Volume/Cycle Rate GPM 1.66 Reclaimer (kg) gallons (L) (LPM) 30.25 24" Top Fill (61) (76.8) (1.8) (.4) (7.6) 27.25 24" Bottom Fill (No (61) (69.2) (1.8) (.4) (7.6)
-
Page 12: Section 7: Replacement Parts List
Section 7: Replacement Parts List... - Page 13 16600217 HOSEBARB, SS6, 1/4 x 1/8 MPT 17200072 HEAD, RECLAIMER, 1.66, CAP, UPPER 26600217 PIPE, CENTER, SS4, 1/4 x 24, 1.66 RECLAIMER 26600213 PIPE, CENTER, SS4, 1/4 x 36,1.66 RECLAIMER 26600214 PIPE CENTER, SS4, 1/4 x 48" 1.66 RECLAIMER 26600215 HOUSING, RECLAIMER, 1.66, SS4, 24"...
- Page 14 EDCF # Description Date Previous Release 6/10/2012 2042 Changed part numbers and descriptions (parts 9, 17, 20) 2/14/2017 changed manual into 5 ½ X 8 ½ format, minor editing. StellaR...
-
Page 15: The Warranty
Geotech agrees to repair or replace, at Geotech’s option, the portion proving defective, or at our option to refund the purchase price thereof. Geotech will have no warranty obligation if the product is subjected to abnormal operating conditions, accident, abuse, misuse, unauthorized modification, alteration, repair, or replacement of wear parts. - Page 16 Geotech Environmental Equipment, Inc. 2650 East 40th Avenue Denver, Colorado 80205 (303) 320-4764 ● (800) 833-7958 ● FAX (303) 322-7242 email: sales@geotechenv.com website: www.geotechenv.com...
