- Page 1 ATLAS DVR/PVR IR/UHF Remote Control Télécommande ATLAS ENP IR/UHF Users Guide Guide d'utilisation...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ..........3 Features and Functions . -
Page 3: Introduction
INTRODUCTION The Atlas DVR/PVR IR/UHF Remote by Universal Electronics is our latest generation universal remote control. Its sophisticated technology allows you to consolidate up to five of your original home entertainment remote controls into one easy-to-use product. Moreover, its packed with advanced features such as: •... -
Page 4: Features And Functions

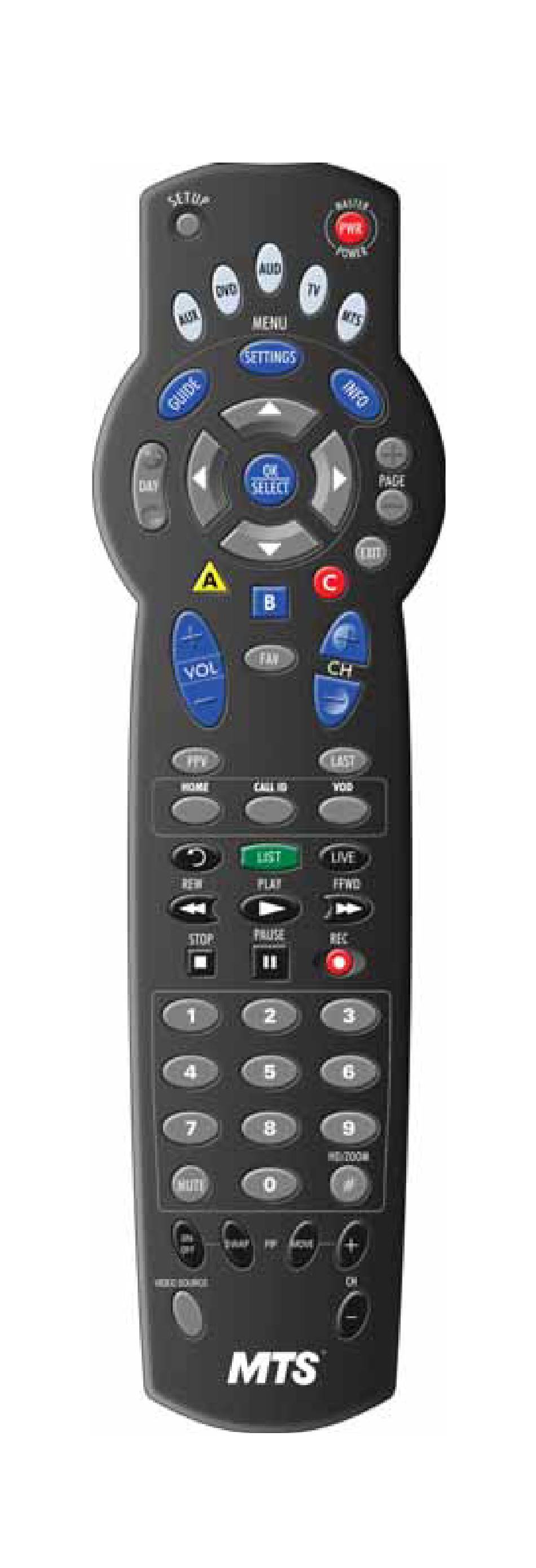

FEATURES AND FUNCTIONS Use the illustration below to locate features on the Atlas DVR/PVR IR/UHF Remote and then study the Key Charts (on the next three pages) to learn how they function. To find out what type of devices can be controlled by each device key after programming, see “Device Table”... -
Page 5: Key Charts
Key Charts Function Use SETUP for all programming sequences. Press PWR once to turn on or off a home entertainment device. For MASTER POWER control, see “Using the Master Power Key” on page 17. Press MTS, TV, DVD, AUD, or AUX once to select a home entertainment device to control. - Page 6 Function Use CH+ (or CH-) to select the next higher (or lower) channel. For DVD players, use these keys to skip forward (or reverse) through chapters. For amplifiers/receivers, use these keys to select the next higher (or lower) preset station. Press MUTE once to turn the sound off or on.
-
Page 7: Device Table
Function Use PIP ON-OFF to switch the Picture- In-Picture feature on or off (if available on your TV). Use PIP SWAP to switch images and sound between the main and window pictures. Use PIP MOVE to move the window picture to different positions in the main picture. -
Page 8: Installing Batteries
INSTALLING BATTERIES ❶ ❷ ❸ On the back of the remote control, push the tab and lift off the battery cover. Locate the two (2) enclosed AA batteries. Match the + and - marks with those in the battery case, then insert them. Align the covers keys with the cases holes and press the cover back into place. -
Page 9: Programming Device Control
PROGRAMMING DEVICE CONTROL The Atlas DVR/PVR IR/UHF Remote is preprogrammed to operate the MTS set-top box, an RCA TV, a Toshiba DVD player, an RCA VCR (as an AUX device), and a Pioneer audio receiver. To control devices other than the default brands, perform the following steps;... -
Page 10: Programming Tv/Vcr Combo Control
Device Type:___________________ DVD Code Device Type:___________________ AUD Code Device Type:___________________ MTS Code Device Type:___________________ TV Code Device Type:___________________ PROGRAMMING TV/VCR COMBO CONTROL If you own a TV/VCR Combo, perform the following instructions to control this device: Turn on your TV/VCR Combo and insert a video cassette. -
Page 11: Searching For Your Code
Aim the remote control at your TV/VCR Combo and press PWR once. The device should turn off. If it does not respond, repeat steps 2 through 3, trying each code listed for your brand until you find one that works. If it still does not respond, try searching for the code (“Searching for Your Code”... -
Page 12: Checking The Codes
To search for the codes of your other devices, repeat steps 1 through 5, but substitute the appropriate key (e.g., AUX, DVD, AUD, or MTS) for the device you are searching for. CHECKING THE CODES If you have set up the Atlas DVR/PVR IR/UHF Remote by searching for your device code (on the previous page), you may need to find out which four-digit code is operating your equipment. -
Page 13: Programming A Learned Key
• Learned keys are mode-specific, so each one can store a unique function for each mode. Do not use the following keys for learning: Device • Keys, SETUP, Record (•), Tune-In Keys. • Learning capacity is approximately 16 to 25 keys, depending on the code being learned. -
Page 14: Deleting A Single Learning Key
Continue holding the key on the original remote until the Atlas DVR/PVR IR/UHF Remote’s LED blinks twice. NOTE: If the LED displays one long blink, a learning error has occurred. Try repeating this step again until a successful capture occurs. If the function is still not captured, press and hold SETUP to exit programming and review the “Learning Precautions”... -
Page 15: Programming Channel Control Lock
PROGRAMMING CHANNEL CONTROL LOCK By default, the remote control’s channel-control capabilities are locked to the set-top box. The affected keys are 1 through 0, CH+, CH-, ENTER, and LAST. This guarantees that you do not inadvertently change a channel on your TV or VCR. However, you can de- activate this feature to allow full access to these keys in the TV and VCR modes. -
Page 16: Unlocking Volume Control For A Single Device
TV, so you can control TV volume while in the AUX, DVD, TV or MTS mode. You can perform Individual Volume Unlock on a selected device to set its volume control for independent operation. NOTE: The audio mode’s (AUD) volume controls are active regardless of Volume Lock settings. -
Page 17: Locking Volume Control To One Mode (Global Volume Lock)
Locking Volume Control To One Mode (Global Volume Lock) NOTE: The audio mode’s volume controls are active regardless of Volume Lock settings. However, if you lock the volume controls to the AUD mode, you control the audio device’s volume in all other modes (i.e., AUX, DVD, TV, or MTS). -
Page 18: Using The Master Power Key
Using the Master Power Key After programming, point the remote control at the devices and press and hold PWR for 1.5 seconds. You see the devices turn on or off according to the programmed sequence. Clearing the Master Power Key On the remote control, press and hold SETUP until the last-selected device key blinks twice. -
Page 19: Checking Your Remote's Id Code
NOTE: Only one device can be assigned to an unused device key at a time. To Re-Assign Perform Key Sequence AUX as 2nd AUX SETUP 9 9 2 AUD AUX AUD key AUX SETUP 9 9 2 TV AUX AUX as 2nd TV key AUX SETUP 9 9 2 MTS AUX AUX as 2nd... -
Page 20: Changing Your Remote's Id Code
CHANGING YOUR REMOTE’S ID CODE In order to use your remote’s RF functions, you may have to change its ID code. The remote’s ID code was set at the factory to 0, which controls the MTS Set-top Box using IR. To change the ID code, perform the following steps: Press MTS once. - Page 21 The MTS key blinks twice. You have successfully changed the gateway ID in your remote. Sending the Gateway ID to the Set-top Box Turn on your television and set-top box. Press MTS once. Then press and hold SETUP until the MTS key blinks twice. Press A.
-
Page 22: Clearing Custom Programming
Checking the Remote’s Gateway ID Your remote can display the gateway ID currently programmed into it. To display the remote’s current gateway ID, perform the following steps: Press MTS once. Then press and hold SETUP until the MTS key blinks twice. Enter 9 5 7. -
Page 23: Troubleshooting
TROUBLESHOOTING PROBLEM: Device key does not blink when you press a key. SOLUTION: Replace the batteries with two (2) new AA alkaline batteries (see “Installing Batteries” on page 8). PROBLEM: Device key blinks when you press a key, but home entertainment device does not respond. SOLUTION: Make sure you are aiming the remote control at your home entertainment device and that you are within 15 feet of the device you are trying to control. -
Page 24: Fcc Notice
FCC NOTICE This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio... -
Page 25: Additional Information
• For help via the Internet, visit us at: www.urcsupport.com ©Copyright 2005 by Universal Electronics Inc. No part of this publication may be reproduced, transmitted, transcribed, stored in any retrieval system, or translated to any language, in any form or by any means,...
