MiniCard (MC) Development Kit
Kit Contents
•
(1) MC-series development kit printed circuit assembly
•
(2) Ultra-wideband 4G dipole swivel terminal antennas
•
(6) RF cables—U.FL micro coaxial cables (3 for Main/AUX/GNSS, 3 spares)
•
(1) U.FL connector push/pull tool
•
(1) USB cable (Type A to micro-B 3.0)
•
(1) AC wall adapter power supply and international plug kit
•
(1) micro-SIM to SIM adapter
•
(2) Thermal pads (1 to install on heat shield, 1 spare). Pad type: 30.5 x 44.0 mm TENNVAC GP5000
•
(3) M2x3 Phillips head module screws (2 to install module, 1 spare)

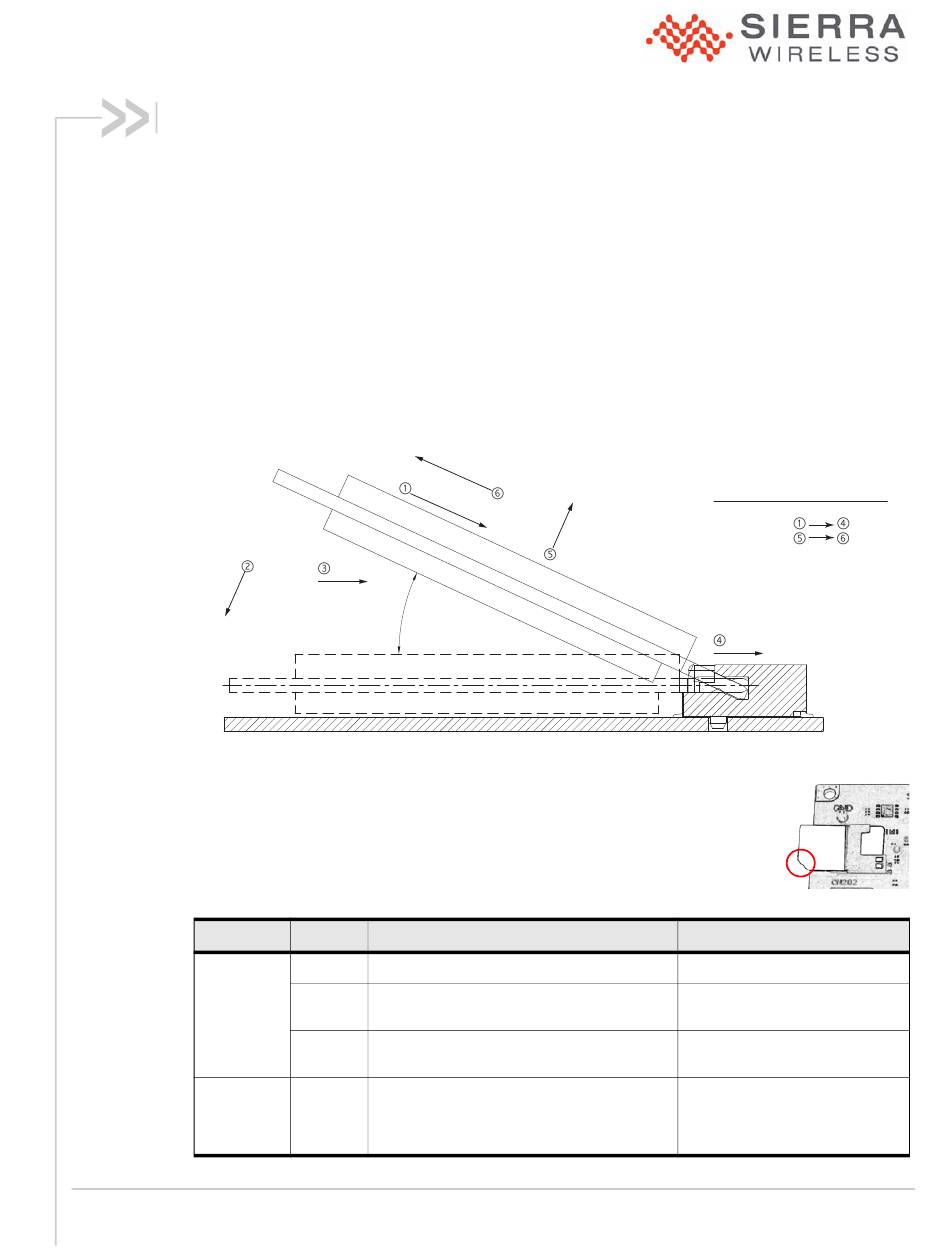

Module Insertion
1.
Remove backing from the thermal pad (both sides), and position the thermal pad on the heat sink.
2.
Insert the module as shown. (Insert at a 31º angle, rotate down, and push fully into the connector.)
3.
Secure the module with two M2 screws.
SIM Card Connection
1.
Slide the SIM card into CN202 (top left corner of the PCB), noting the location
of the notched corner. (If ESIM is enabled, DO NOT use a SIM in CN202.)
2.
If supporting dual SIMs, insert a second SIM card into CN206.
Power Source Selection
Connector
CN101
(PWR IN
SELECT)
CN117
CONNECT
MAIN VCC
© 2015 Sierra Wireless. All rights reserved.
2400432, Rev. 1
LEAD-IN
ROTATE
PUSH
31°
Jump
Pins 1 & 2 Power provided by barrel jack (AC adapter)
Pins 3 & 4 Power provided by banana jack (3.125–4.4VDC)
Disable on-board LDO
Pins 5 & 6 Power provided by USB cable (Default jumper
location)
Pins 1 & 2 Jumper required when selected power type is
AC adapter or USB cable.
Remove the jumper to isolate module power
from other circuits on the board.
EXTRACT
RISE UP
Description
13811 Wireless Way
Richmond, BC
Canada, V6V 3A4
HOW TO MATE (INSTALL) AND EXTRACT
MATE:
EXTRACT:
MATE
Power connector(s) to use
CN103
CN114 (VCC) & CN116, or
CN115 (VCC_MODULE) & CN116
CN105
Main +1 604 231 1100
Fax
+1 604 231 1109
www.sierrawireless.com
Advertisement
Related Manuals for Sierra Wireless MC Series
Summary of Contents for Sierra Wireless MC Series
- Page 1 AC adapter or USB cable. MAIN VCC Remove the jumper to isolate module power from other circuits on the board. © 2015 Sierra Wireless. All rights reserved. 13811 Wireless Way Main +1 604 231 1100 Richmond, BC +1 604 231 1109 2400432, Rev.
- Page 2 Switch Settings Switch Position Default Operation Description SW100 3.0V Select voltage for MC module (When selected power source is barrel jack or USB cable) 3.3V 3.6V 4.2V SW200 W_Disable_N On=Set to logic low; Off=Set to logic high LDO_EN On=Enable on-board bias voltage Off=Disable on-board bias voltage LDO_CODEC_EN On=Enable codec supply voltage Off=Disable codec supply voltage...
