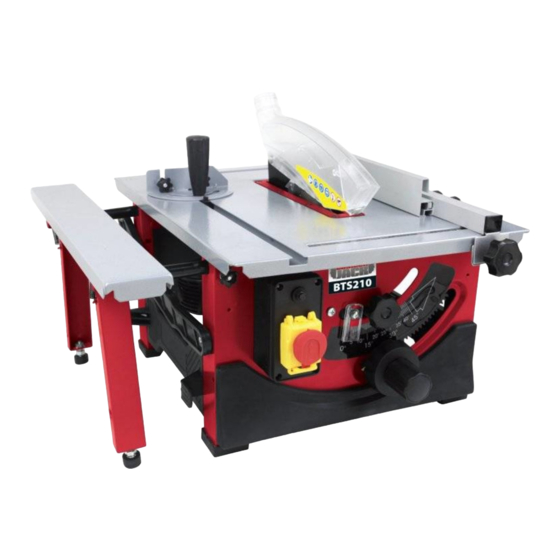

- Page 1 SAFETY AND OPERATING MANUAL Table Saw BTS210 ORIGINAL INSTRUCTIONS 04/06/19 BTS210...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Lumberjack! Dear customer, Congratulations on your purchase. Before using the Product for the first time please be sure to read these instructions for use. They provide you with all information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. BTS210... - Page 4 Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. BTS210...
- Page 5 (e. g. a tunnel blade guard). 7.10. Do not use the machine for cutting slots (Stopped grooves). 7.11 Use the machine only for cutting the materials listed under Intended Use. Otherwise, the machine can be subject to overload. BTS210...
- Page 6 7.18 Store the machine in a safe manner when not being used. The storage location must be dry and lockable. This prevents the machine from storage damage, and from being operated by untrained persons. BTS210...
- Page 7 Any repairs must be carried out by the laser manufacturer or an authorized service agent. 8.11 Do not attempt to repair the laser guide by yourself. 8.12 Do not attempt to change any parts of the laser guide. BTS210...
-
Page 8: Symbols & Cable Rating Chart
Caution! Exposed saw blade. Risk of injury Refer to instruction manual Double insulated Class II product Caution – sharp protective gloves when adjusting sharp blade Use table saw adjustable guard Wear ear protection Do not dispose of in household waste TS254SE BTS210... -
Page 9: Machine Details And Product Features
Rip Fence crossways cuts in wood. The capacity of the Blade Wrench power tool is designed for sawing hardwood and softwood. The power tool is not suitable for cutting aluminium or other non‐ferrous metals or alloys. TS254SE BTS210... -
Page 10: Assembly
– Insert the rip fence (16) in to the groove on bottom of the opening. the table top (1). – Loosen adjustment knob (24) to adjust the angle of the rip fence then retighten once desired angle is set. BTS210... -
Page 11: Operation
– Retighten the knurled knobs to lock the extension in place Setting the Longitudinal Stop (20) The stop has two different guide surfaces which are set up like this: – For thick materials Adjusting the Blade Angle – Loosen locking handle (14). BTS210... -
Page 12: Working Advice
– Do not use the machine for cutting slots (stopped grooves). Protect the saw blade against impact and shock. Do not subject the saw blade to lateral pressure. BTS210... -
Page 13: Maintenance And Service
– Clean both flanges before mounting a new Changing the Blade blade. – Repeat step above in reverse order to mount – Loosen the four screws (21) and flip the saw the new blade. blade cover up. BTS210... - Page 14 (5) moves freely. Cleaning – For safe and proper working, always keep the power tool and its ventilation slots clean. – Remove dust and chips after each working procedure by blowing out with compressed air or with a brush. BTS210...
-
Page 15: Lumberjack Guarantee
1.2.7 The product has not been used for 1.2.3 If asked to do so by lumberjack or hire purposes. its Authorised Dealer, you return the product at your own cost to 1.2.8 The product has been purchased by... - Page 16 2.4 Please note that it is essential that the letter of 2. Claims Procedure claim reaches Lumberjack on the last day of this 2.1 In the first instance please contact the guarantee at the latest. Late claims will not be Authorised Dealer who supplied the product to considered.
-
Page 17: Declaration Of Conformity
BTS210... -
Page 18: Parts List
PARTS LIST BTS210... - Page 19 PARTS LIST BTS210...
- Page 20 PARTS LIST BTS210...
-
Page 21: Parts Diagram
PARTS DIAGRAM PART 1 BTS210... - Page 22 PARTS DIAGRAM PART 2 BTS210...
- Page 23 PARTS DIAGRAM FULL BTS210...
