MODEL CUB5T - MINIATURE ELECTRONIC PRESET TIMER
GENERAL DESCRIPTION
The CUB5T provides the ultimate in timer flexibility, from its complete user
programming to the optional relay output and serial communications capability.
The meter functions as an Elapsed Timer or Preset Timer. It also has a built-in
Cycle Counter. The display can be toggled either manually or automatically
between the Timer and Cycle Counter values. With eight different input
operating modes and 18 selectable timer ranges, the meter can be programmed
for a wide variety of timing applications.
The CUB5T has an LCD display with 0.46" (11.7 mm) high digits. The LCD
is available in two versions, reflective (CUB5TR00) and backlight
(CUB5TB00). The backlight version is user selectable for red or green
backlighting with variable display intensity.
The Timer has two signal inputs and eight input operating modes. These
modes provide level active or edge triggered start/stop operation. A Display
Hold mode will display the elapsed time for one cycle, while the next cycle
continues timing internally. The Timer Reset modes will automatically reset the
timer value when a time start edge is applied to the input. This allows sequential
timing cycles without having to manually reset the Timer.
In addition to the Timer inputs, a programmable User Input is available to
perform a variety of meter functions. All inputs are current sinking (active low)
and accept a variety of logic and open-collector output signal sources. Relay and
switch contacts can also be used as signal sources, when the software input
debounce filter is enabled.
The capability of the CUB5T can be easily expanded with the addition of a
field installable option module. When the CUB5RLY0 relay output module is
added, the meter becomes a Preset Timer. The Setpoint Output can be assigned
to the Timer or Cycle Counter values, and configured to suit a variety of control
and alarm requirements. Serial communications capability for RS232 or RS485
is added with a serial option module (CUB5COM).

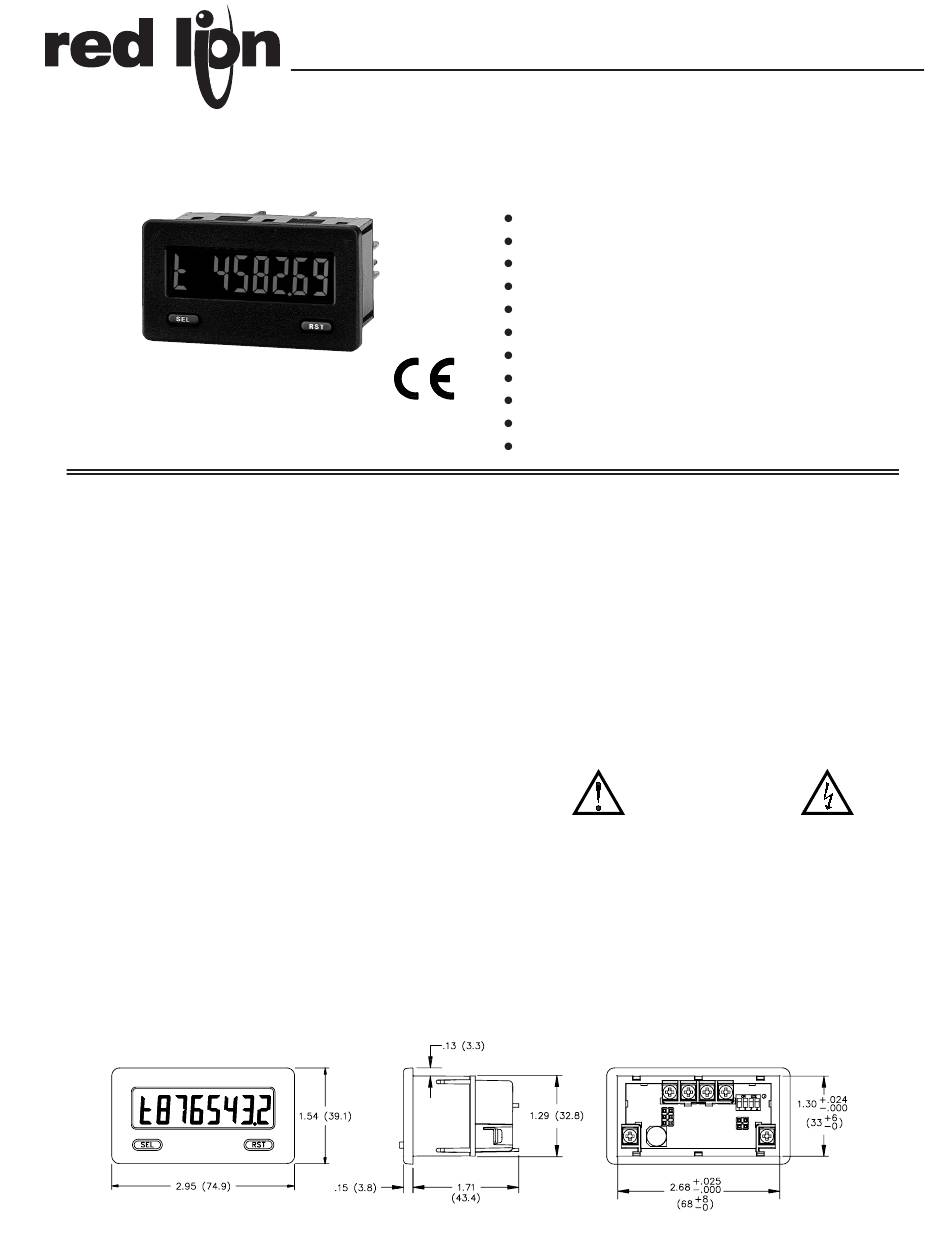

DIMENSIONS In inches (mm)
AND CYCLE COUNTER
LCD, REFLECTIVE OR RED/GREEN LED BACKLIGHTING
0.46" (11.7 mm) HIGH DIGITS
7-DIGIT BI-DIRECTIONAL TIMING CAPABILITY
6-DIGIT CYCLE COUNTING CAPABILITY
OPTIONAL RELAY OUTPUT MODULE
OPTIONAL SERIAL COMMUNICATIONS MODULE (RS232 or RS485)
SELECTABLE TIMER RANGES AND OPERATING MODES
ELAPSED TIMER AND PRESET TIMER FUNCTIONALITY
DISPLAY COLOR CHANGE CAPABILITY AT PRESET OUTPUT
OPERATES FROM 9 TO 28 VDC POWER SOURCE
NEMA 4X/IP65 SEALED FRONT BEZEL
The CUB5T can be powered from an optional Red Lion Micro-Line/Sensor
Power Supply (MLPS1000), which attaches directly to the back of a CUB5T.
The MLPS1 is powered from an 85 to 250 VAC source and provides up to 400
mA to drive the meter and sensors.
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in this
literature or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
Do not use this meter to directly command motors, valves, or other actuators
not equipped with safeguards. To do so can be potentially harmful to persons or
equipment in the event of a fault to the meter.
Read complete instructions prior to
installation and operation of the unit.
Note: Recommended minimum clearance (behind the panel) for mounting clip installation is 2.15" (54.6) H x 3.00" (76.2) W.
1
CAUTION: Risk of Danger.
Bulletin No. CUB5T-X
Drawing No. LP0628
Effective 11/05
CAUTION: Risk of electric shock.
