- Page 1 HDMI® 1x2 S P L I T T E R Ultra Slim Design Part Number: EVSLIM12 HDMI® 1X2 ULTRA SLIM SPLITTER www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 INTRODUCTION The Evolution EVSLIM12 Ultra Slim Splitter sends audio and video from a single source to up to 2 HDMI outputs up to 4K2K (2160p) Ultra High Definition resolution without any loss of quality or resolution. The splitter is capable to switch input signal format according to the displays by utilizing automatic EDID management.
-
Page 4: Specifications
SPECIFICATIONS Input ............... 1 HDMI Input Connector ............1 female type A HDMI 1.4 Output ..............2 HDMI Output Connector ............. 2 female type A HDMI 1.4 Min/ Max Signal Level ..........T.M.D.S. 2.9V~3.3V Impedance ............... Differential 100Ω Max data rate ............10.2Gbit/s Max Resolution ............ -
Page 5: Package Contents

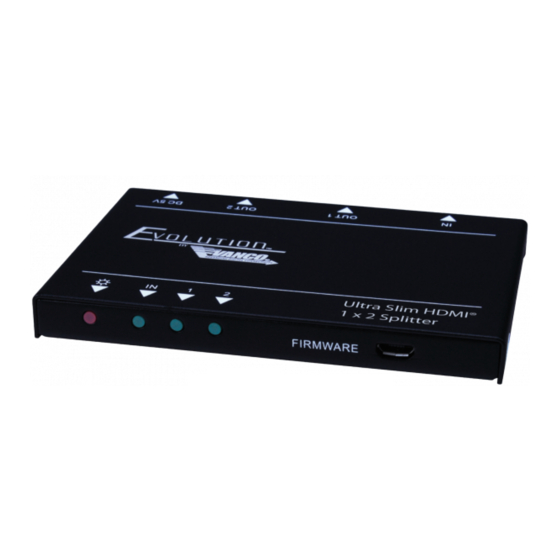

PACKAGE CONTENTS • 1x2 Ultra Slim Splitter EVSLIM12 • Mounting Ears and Screws • 4 Plastic Cushions • 5V/1A DC power supply • Product Manual PANEL DESCRIPTIONS 1. Power indicator: Illuminates red once powered on 2. Input HDCP compliant Indicator: Indicate the HDCP compliant status of the input signal Illuminates green when the input signal carries HDCP Blink green when the input signal is without HDCP Remain off when there is no input signal... -
Page 6: Connection Diagram
CONNECTION DIAGRAM CONNECT AND OPERATE 1. Connect a HDMI/ DVI source device (e.g. Blue-ray DVD) to the HDMI INPUT socket of 4K HDMI Splitter 1x2 with HDMI cable. 2. Connect HDMI displays to HDMI OUTPUT sockets of 4K HDMI Splitter 1x2 with HDMI cable. 3. -
Page 7: Firmware Upgrade
EDID EDID management helps the distribution and routing of signals from the source at the resolution of the first detected display (detecting from output 1~2). For example: when output 1 connects with a 1080p display, 4K HDMI Splitter 1x2 will select 1080p as output resolution and distribute 1080p signal to displays connected to output 1~2. -
Page 8: Troubleshooting
TROUBLE-SHOOTING 1. PROBLEM 1: Color loss or no video signal output in HDMI display CAUSE: The connecting cables may not be connected correctly. SOLUTION: Check whether the cables are connected correctly and in working condition. 2. PROBLEM 2: Color loss or no video signal output in HDMI display CAUSE: The display is not compatible with the present output resolution. -
Page 9: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. -
Page 10: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. -
Page 11: Liability Statement
LIABILITY STATEMENT Every effort has been made to ensure that this product is free of defects. The manufacturer of this product cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for their requirements and that it is installed correctly. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
