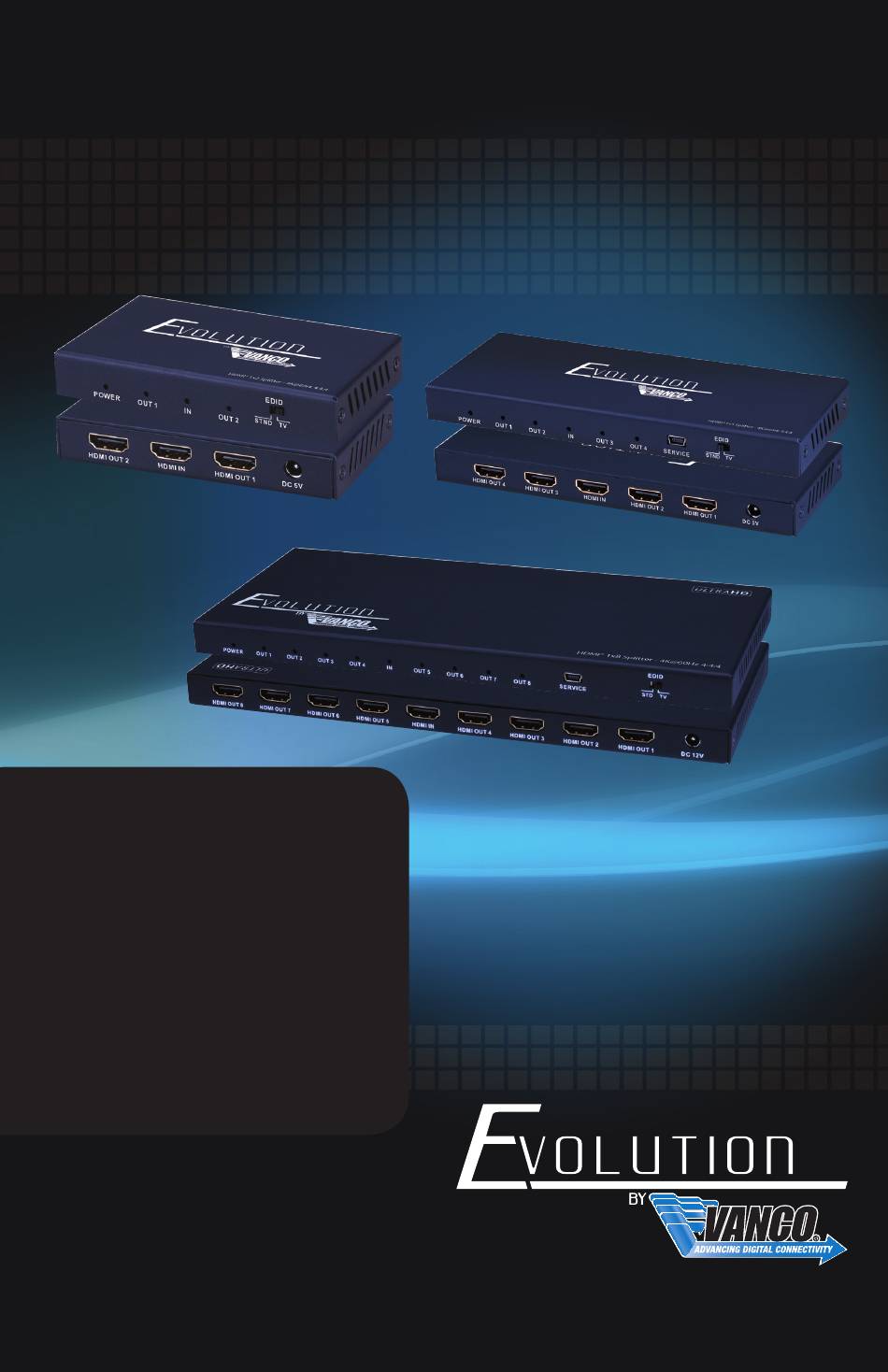

- Page 1 HDMI® S P L I T T E R S 4K HDMI® Splitters Part Numbers: EVSP4K12 1x2 EVSP4K14 1x4 EVSP4K18 1x8 www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
-
Page 3: Package Contents
FEATURES INTRODUCTION The Evolution by Vanco EVSP4K12, EVSP4K14 and EVSP4K18 with HDCP 2.2, 4K/60Hz, and 4:4:4 chroma capability, are the most up to date HDMI splitters that are compliant with HDCP 2.2 displays and sources. Also features EDID management, with different modes to ensure compatibility with source and display combinations. Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio for advanced audio setups. - Page 4 • Features status indicator for connection & input HDCP compliance • Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system • Dimensions: 6.4” W x .6” H x 2.5” D PACKAGE CONTENTS •...
- Page 5 • Features status indicator for connection & input HDCP compliance • Can be cascaded with other Evolution by Vanco products to create additional output options or to create an expanded distribution system • Dimensions: 9.6” W x .6” H x 4.1” D PACKAGE CONTENTS •...
-
Page 6: Specifications
SPECIFICATIONS Video Bandwidth ............600MHz/18Gbps Input Ports ..............1 × HDMI (Female type) Output Ports ............. 2, 4 or 8 × HDMI (Female type), Output Resolution ............480i-1080p@50/60Hz; 2160p@24/30Hz; 2160p@60Hz; VESA Formats up to QSXGA 2560x2048@60Hz ESD Protection ............Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply ............ - Page 7 PANEL DESCRIPTIONS EVSP4K12 1. POWER LED: Illuminates when the splitter is connected to power 2. OUTPUT 1/2 LED: Illuminates when a display is connected to “HDMI OUT 1/2” and is powered on 3. IN LED: Illuminates when the source is connected and is powered on 4.
- Page 8 PANEL DESCRIPTIONS EVSP4K14 1. POWER LED: Illuminates when the splitter is connected to power 2. OUTPUT 1/2/3/4 LED: Illuminates when a display is connected to “HDMI OUT 1/2/3/4” and is powered on 3. IN LED: Illuminates when the source is connected and is powered on 4.
- Page 9 PANEL DESCRIPTIONS EVSP4K18 1. POWER LED: Illuminates when the splitter is connected to power 2. OUTPUT 1/2/3/4/5/6/7/8 LED: Illuminates when a display is connected to “HDMI OUT 1/2/3/4/5/6/7/8” and is powered on 3. IN LED: Illuminates when the source is connected and is powered on 4.
-
Page 10: Edid Management
EDID MANAGEMENT Extended Display Identification Data (EDID) is a data structure provided by a digital display to describe its capabilities to a video source (e.g. graphics card or set-top box). In a nutshell, the display provides its EDID info to the source to send the proper signal format, this is essential for a proper handshake to occur. •... -
Page 11: Connection Diagram
CONNECTION DIAGRAM 800.626.6445... -
Page 12: Connect And Operate
CONNECT AND OPERATE 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input 2. Connect displays such as an HDTV or HD Projector to the HDMI outputs 3. For power, connect the provided power supply At this point the display connected should display the source signal connected to the unit. -
Page 13: Troubleshooting
TROUBLE-SHOOTING Problems Causes Solutions Color loss or no video signal The connecting cables may Check whether the cables are output in HDMI display not be connected correctly or connected correctly and in working it may be broken. condition. The display is not compatible Make sure the resolution of the with the present output display(s) is compatible with the... -
Page 14: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. -
Page 15: Technical Support
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. - Page 16 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
