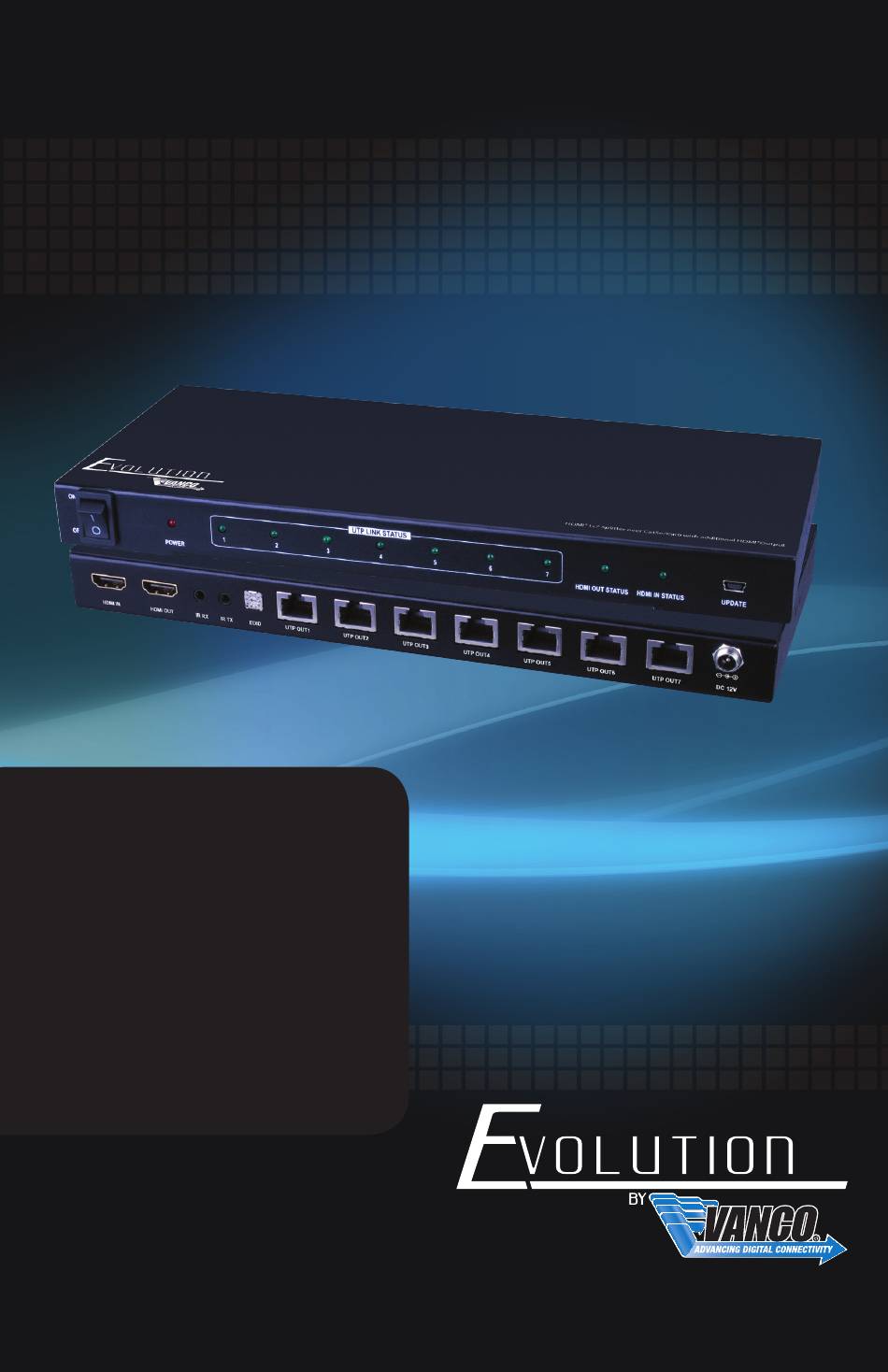

- Page 1 ® HDMI Splitter over Single Cat5e/6 Cable Vanco Part Number: EVSP1017 1X7 HDMI® Splitter over Single Cat5e/6 Cable www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 INTRODUCTION The Evolution by Vanco EVSP1017 1x7 HDMI Splitter over Cat5e/6 with IR and PoE capability, splits a single HDMI signal to seven outputs over Cat5e/6, with a loop-out HDMI port, which can be used for a local display, or to cascade to create additional outputs.
-
Page 4: Specifications
SPECIFICATIONS Power ..............Maximum 18W (includes PoE) Net Weight .............. 1.675 lb. Video Bandwidth ............Maximum TMDS clock frequency 148.5MHZ, 4.95Gbps Resolution and distance ..........164ft/50m Cat5e/6 @ 1080p 60 24bits Audio formats ............8 channel Support, Supports Dolby Tru HD and DTS master formats TMDS input signal ............ -
Page 5: Panel Descriptions

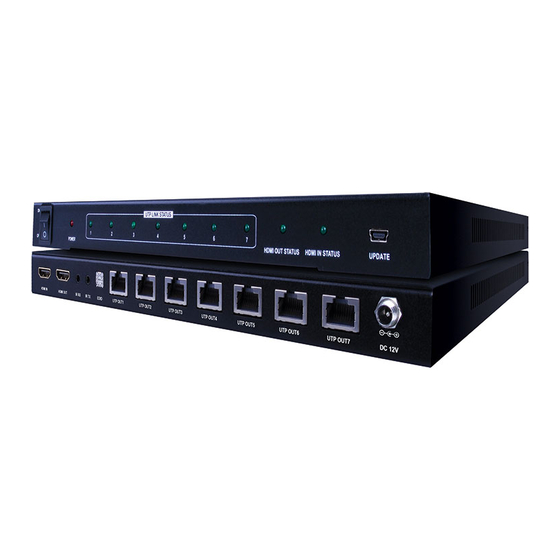

PANEL DESCRIPTIONS 1. POWER SWITCH: Toggle switch that turns the splitter unit ON or OFF 2. POWER LED: Illuminates when the splitter is connected to power 3. UTP LINK STATUS: Illuminates when the UTP outputs are connected to the EVRX2006 or EVWP2006RX receiver units (sold separately) 4. -
Page 6: Edid Management
EDID MANAGEMENT Extended Display Identification Data (EDID) is a data structure provided by a digital display to describe its capabilities to a video source (e.g. graphics card or set-top box). In a nutshell, the display provides its EDID info to the source to send the proper signal format; this is essential for a proper handshake to occur. When making any adjustments to EDID, turn off every component (splitter, source, and all displays), then turn on splitter first, followed by the source, then the main display (HDMI Output 1). -
Page 7: Connection Diagram
CONNECTION DIAGRAM HDTV HDTV HDTV HDMI HDMI Cat5e/6 Use with EVWP2006RX Cat5e/6 or EVRX2006 HDMI (Sold Separately) IR TX Cat5e/6 IR RX Single HDMI Source CONNECT AND OPERATE 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input 2. - Page 8 IR PASS-THROUGH The bi-directional IR system allows you to control the source that is connected to the extender unit, from the display; or the display from the source, not simultaneously. There are two important things to note when setting up the IR system: 1.
- Page 9 IR RECEIVER (RX) • To control the source: Plug IR Receiver into IR RX port of receiver unit; place receiver at or near display. • To control the display: Plug IR Receiver into IR RX port of transmitter unit; place receiver in position where it is able to receive remote signals.
-
Page 10: Troubleshooting
If you are still encountering issues, attempt the “hot-plug concept. With all of the HDMI cables disconnected, turn on the source and plug in the HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. -
Page 11: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
