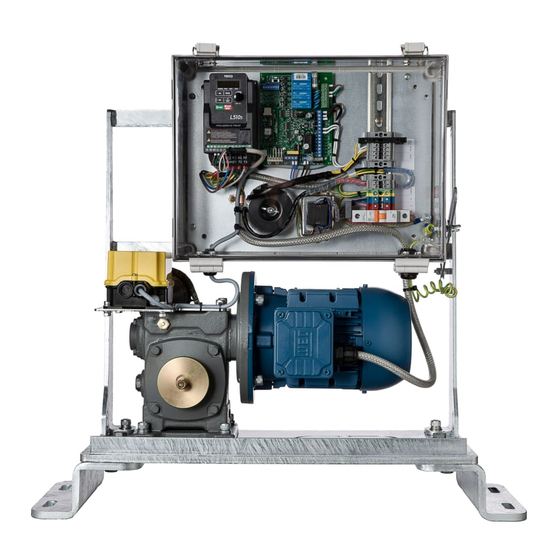

Installation and Maintenance Manual Sliding Gate Operators Inbuilt Models: GDS 450LI & 630LI Range Made in Australia from Australian & quality imported components (DELTA VSD) 10 Bennet Ave Melrose Park SA 5039 8374 3466 June 2019 V1.00...
Quick start instructions (For those who don't have time!) S l i d i n g G a t e O p e r a t o r s GDS 450, 630 “LI” Range Made in Australia from Australian & quality imported components Place operator in correct position (Pinion wheel to be parallel to the gate and stepped out to allow for width of rack once it is mounted onto the gate frame).
Page 3
To commission the gate, move the gate to approximately the half way position, tighten the knurled wheel (Clockwise) engaging the clutch just enough to drive but will still slip if the gate hits something while travelling at high speed. The clutch must be tightened up fully after commissioning. Press the OPN button located under the dip switches to begin opening cycle.
AFETY RECAUTIONS WARNING! FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS AND INSTALLATION INSTRUCTIONS COULD RESULT IN INJURY OR DEATH AND OR DAMAGE TO PROPERTY AND EQUIPMENT Appropriately licensed and competent personnel only should install the automation equipment. The operators are designed specifically to open and close sliding gates or doors and should not be used for any ...
IRING EQUIREMENTS Single phase 240v 10A earth leakage protected power supply to where operator is mounted. If nuisance tripping of the RCD occurs, this is due to the fact that VSD drive units inherently allow minimal earth leakage current to flow originating from its internal power filtering which can sometimes be enough to trip a standard RCD device.
Page 8
CB-6 BOARD LAYOUT FOR INVERTER CONTROLS Mode Selection and Adjustment 17. Electric Lock Control Terminals Protection Fuse 18. Terminals for 24vAC Supply for Inverter Input Terminals Control Logic Motor 1 Drive Output Terminals for Inverter 19. Plug in Receiver Antenna Terminals Motor 2 Drive Output Terminals for Inverter With Optional Shield Motor 1 Limit Switch Inputs...
Control Inputs / Mode Settings Control Inputs The P.E, OPN and STP inputs require a normally closed switch contact and therefore should be shorted to the COM terminal if not used. This is done via bridging links already on the circuit board (bottom left corner) The CLS, OSC and PED inputs require a normally open switch contact and therefore should be left unconnected if not used.
Page 10
Position 6 P.E STOPS CLOSE CYCLE OFF - Activating the P.E input while motors are closing causes the motors to reverse. ON - Activating the P.E input while motors are closing causes the motors to stop but not reverse. Position 7 P.E STOPS OPEN CYCLE OFF - Activating the P.E input while motors are opening is ignored by the controller.
Page 11
DELTA PARAMETER SET-UP FOR 3 WIRE CONTROL (V1.00 14.6.19) Press mode button to get to setting mode, so go to “U”. Press enter to get into parameters, scroll to select parameter group required, press enter to select, then scroll up to get to required parameter number. Press enter to select. Scroll up or down to select new value, then press enter to enter new value.
OMMISSIONING Check that the limit switches are the correct way around by observing that the M1 op and cl indicator LED`s go out when the corresponding limit switch is activated. If they are the wrong way around, swap over the M1 op and cl limit wires. They can be roughly set so they activate approx.
Page 13
DELTA VDF-EL ATA CB-6 Gate Drive Systems Australia ATA CB-6 DELTA VDF-EL DELTA VDF-EL Gate Drive Systems Australia...
ANUAL ELEASE NSTRUCTIONS Place key in door lock, turn clockwise till released and pull door open Turn knurled knob anticlockwise approx. ½ a turn to release Gate can now be opened by hand. To re-engage the clutch, move the gate by hand Into approx.
AINTENANCE ETAILS WARNING! Failure to maintain equipment may result in injury or death and/or damage to property and equipment Recommended maintenance to be performed on the operator and gate are as follows: Operator performs over 150 cycles a day each month Operator performs between 100-150 cycles a day every 2 month Operator performs between 50-99 cycles a day...
Page 16
All goods must be returned to Nice Australia or its representative for inspection or testing to assess if a claim is justified. It is the responsibility and at the cost of the Customer, to remove & return the goods for inspection and freight costs are the responsibility of the Customer.
