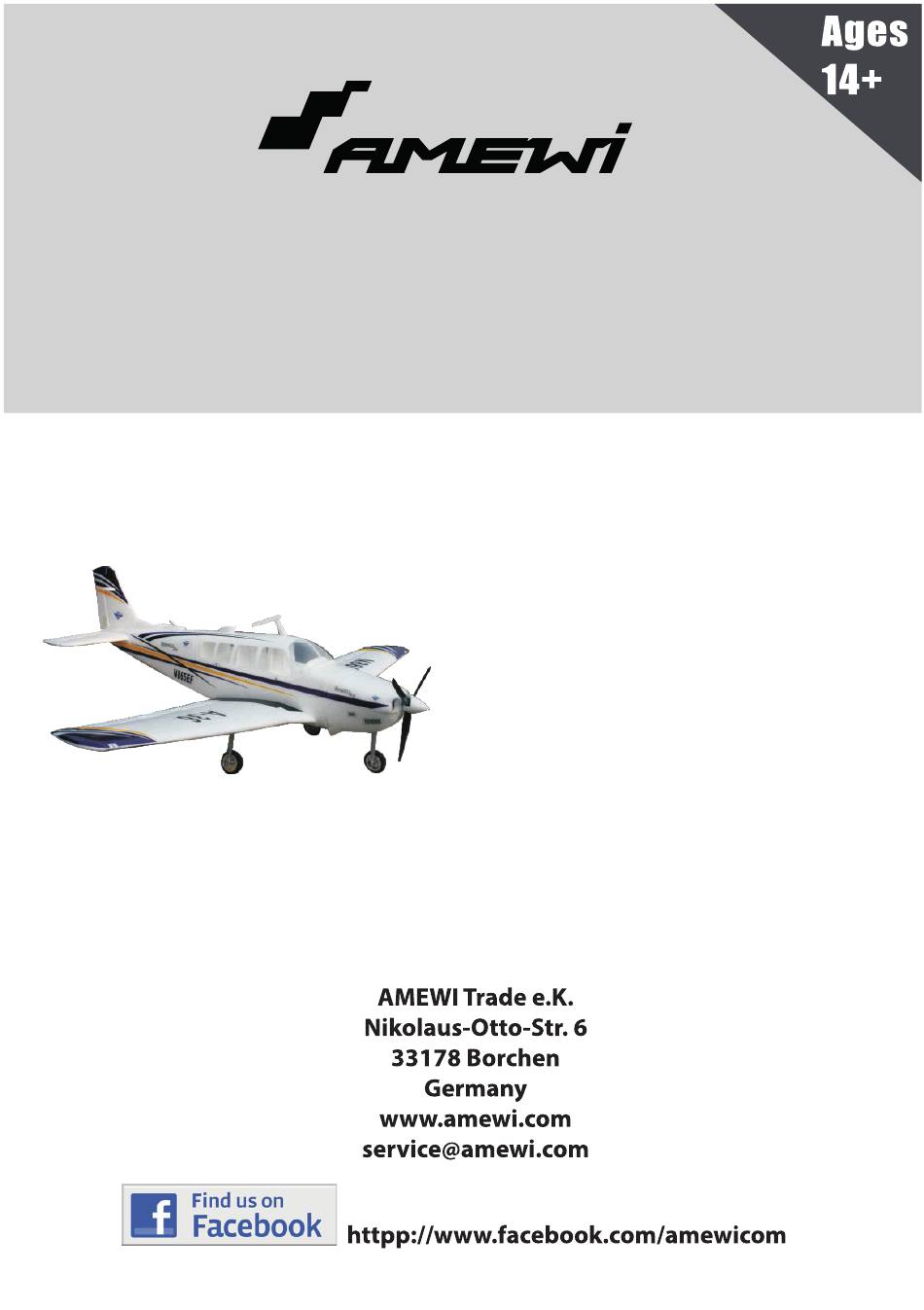

Beechcraft Bonanza A36 ST
Before commencing assembly, pleass read instruction thoroughly
Item No. 24068
Assembly Instructions
A36ST Technical data:
Specification:
Wingspan: 1280mm
Length: 1030mm
Weight: 1384g / 1442g
Configuration
Radio: 6CHanneL 2.4G radio
Motor: 3715 980KV
ESC: 30A / 50A
Battery: 11.1V 2200mA 20C lipo / 14.8V 2200mA 20C lipo
Servo: 9g * 1PCS + 17g * 3PCS / 9g * 2PCS + 17g * 3PCS
Charger: 3S lipo balancer and adapter / 4S lipo balancer
and 3A adapter
Propeller: 1070 3blades

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bonanza A36 ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Amewi Bonanza A36 ST

  • Page 1 Assembly Instructions Beechcraft Bonanza A36 ST Before commencing assembly, pleass read instruction thoroughly Item No. 24068 A36ST Technical data: Specification: Wingspan: 1280mm Length: 1030mm Weight: 1384g / 1442g Configuration Radio: 6CHanneL 2.4G radio Motor: 3715 980KV ESC: 30A / 50A Battery: 11.1V 2200mA 20C lipo / 14.8V 2200mA 20C lipo...
  • Page 2 Our distribution network contains over 450 specialist dealers and online shops. AMEWI Trade e.K. is an Wholesale Company. We only distribute our goods to retailers. IF you are an End-Customer who is buying AMEWI-Products , you contract with your retailer. In case of warranty please always contact your retailer.
  • Page 3: Security Notice

    Warranty or Damages Claim because of inappropriate usage, normal wearout, or lacks that influence the worth of the product only a minimum. In the form of interventions from not authorized AMEWI retailers and usage of not original spare parts and parts the warranty expires.
  • Page 4: Hinweise Zur Konformität

    Supermärkten an der Kasse) entsorgen. Sie dürfen nicht in den Rest- bzw. Hausmüll. Die Firma AMEWI Trade e.K. beteiligt sich am Dualen System für Verkaufsverpackungen über die Firma Landbell AG. Die verwendeten Verpackungen werden von Partner-Unternehmen (Entsorgern) bei den privaten Endverbrauchern (Haushalten, „Gelber Sack“, „Gelbe Tonne“) abgeholt, sor ert und ordnungsgemäß...
  • Page 5: Declaration Of Conformity

    They are not allowed to be put into local household garbage. AMEWI Trade e.K. is involved in the dual system for boxing over the company Firma Landbell AG. All used boxes are collected from partner companies (waste disposal contractor) at private customers (local household), sorted and properly u .
  • Page 6: Battery And Charging

    1. This RC model is not a toy. The owner / pilot is responsible for any damage to persons or propety that results from the use of this producer 2. It is very important to follow All instructions for setting up and debugging the model before attempting to flight 3.
  • Page 7 4. Do not fly or launch the model towards people’s faces. 5. Do not fly in strong winds or rain or thunderstorms. 6. Keep your hands and face away from the propeller.
  • Page 8 Pictures of Battery Charging The Use of Tools...
  • Page 9 Component Fuselage, Main wing, Elevator, Rudder, Transmitter, Adapter, Balancer, Manual, Propeller, Propeller spinner, Battery, Control rod, Accessories package, Canopy and decoration Assembly Instructions 3x15mm Rod adjuster...
  • Page 10 Main wing servos assembly Assembly the aileron servo and flaps servo to the indication position by glue as picture Servo protector assembly Apply glue to the protector then fix it to the appointed place as picture Clevis assembly Turn the clevis clockwise into the control rod as picture shown Main wing control wire assembly First insert the (z) end of the control wire into the servo arm, then fix the servo arm to the servo by screw as picture...
  • Page 11 Main landing gear assembly Fix the laning gear to the appointed place on the main wing by screw as picture S cr e w Tail assembly Apply the glue to the interface then fix together as picture shown...
  • Page 12 Install the adjustable horn of tail wing as picture shown 4x15mm Rod adjuster Tail wing assembly (A36) Install rudder and elevator to the fuselage tail then fix them with screw provided S crew 3 x6 0 m m...
  • Page 13 (A36) Elevator servo / Steering servo assembly(as picture shown) (A36) Elevator control wire / Rudder canopy decortion assembly as picture shown E le va tor R udd er...
  • Page 14 (V35) V tail assembly 1. Apply the glue to the interface then fix both parts together as picture shown 2. Install the V-tail horn as picture shown 4x15mm Rod adjuster 3. Install the V-tail to the fusealge and fix it by screw provided as picture shown...
  • Page 15 Screw 3x60mm Screw 3x60mm S c re w 3 x 6 0 m m (V35) V-tail servo assembly as pictures shown V-tail Control wire assembly as pictures shown Elevator...
  • Page 16 Motor assembly Fix the to the motor mount with screw provided as pictures shown S c r e w 3 X 1 0 m m Front landing gear assembly Fix the to the motor mount with screw provided as pictures shown Steering servo assembly Apply the glue to the servo interface and fix it to the appointed in front of fuselage, then control wire as picture shown...
  • Page 17 Propeller assembly Fix the propeller adapter to the motor shaft, finally install the propeller spinner as pictures shown Main wing assembly First, put the carbon fibre through the fuselage, then connect the two halves togetger and fix it to the fuselage with screw provided as pictures shown Canopy decoration assembly Apply the glue to the canopy and fuselage appointed insterface, then fix the decoration to as pictures shown...
  • Page 18 Receiver assembly Connect all wires into the channels, then apart the mask and fix it as picture shown Radio power battery assembly Install the transmitter battery, be sure that the throttle is in the off position. Then turn on the power and check controls. Battery assembly Connect the battery to the ESC and fix it into the place appointed, then put the canopy back to the fuselage as pictures shown...
  • Page 19 Water Float Assembling Instructions Float servo assembly Apply the glue to the servo and fix it into the place appointed as pictures shown Control rod and servo protector of float assembly Float assembly Put the two aluminum frame to the float and fix them by screw procided as pictures shown...
  • Page 20 Float installation Fix the float to the underside of fuselage with screw provided as pictures shown...
  • Page 21 Circuit Connection Graph...
  • Page 22: Spare Parts

    Spare Parts Fuselage Mainwing Elevator Rudder Cowl V-TAIL set Float set Propeller Spinner Balancer Motor...
  • Page 23 Spare Parts Adapter Lipo battery 9g servo 17g servo Radio Landing gear Connect wire Carbon fibre Glue Canopy Canopy...
