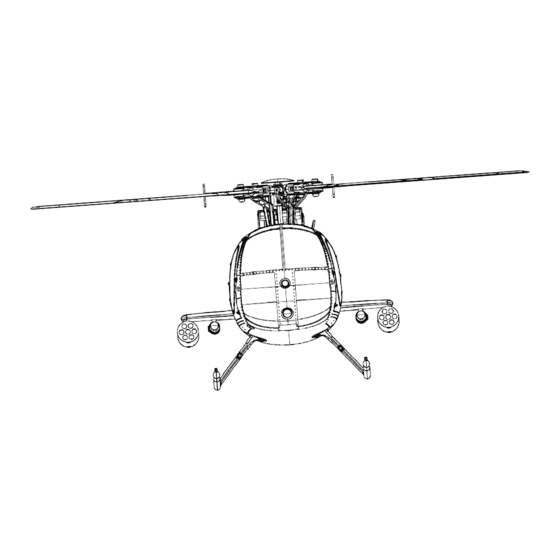

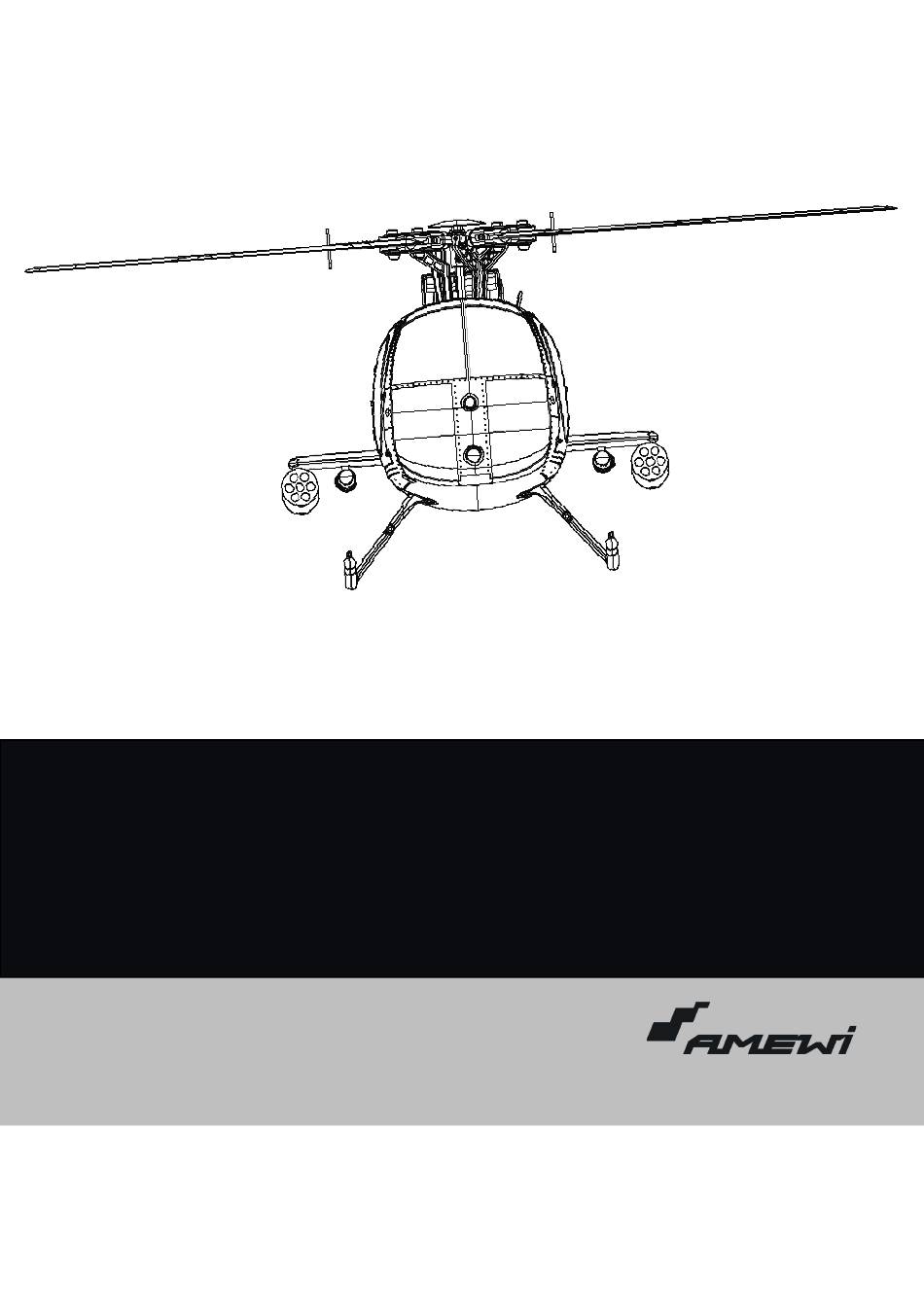

- Page 1 AFX MD500E HELIKOPTER 6G RTF 25334, 25336 JUST REMOTE-CONTROLLED BEDIENUNGSANLEITUNG OPERATION MANUAL...
- Page 3 Welcome to AMEWI The Amewi Trade GmbH is an international import- and wholesale company for R/C models, toys and creative items, located in Borchen near Paderborn, Germany. Our product range includes over 10,000 items. Above all, this includes remote-controlled car, helicopter, boat, and tank models as well as a wide range of accessories and all necessary spare parts.
-
Page 4: Sicherheits- Und Gefahrenhinweise
This product has been manufactured according to actual technical standards. The product is matching the requirements of the existing European and national guidelines. The Declaration of Conformity has been proofed. AMEWI Trade GmbH declares that this product is matching the basic requirements and remaining regulations of the guideline 2014/53/EU {RED). The declarations and documents are stored at the manufacturer and can be requested and applied there. - Page 5 Improper use such as short-circuiting, or overcharging may result in explosion or fire. Keep the battery in a safe place that babies or children cannot reach. The above indicates the danger of using the battery. The user assumes full responsibility for the outcome of using the battery. amewi.com...
- Page 6 DISPOSAL ENTSORGUNGSHINWEISE / Die Firma AMEWI Trade GmbH ist unter der Batt-Reg.-Nr. DE 77735153 sowie der WEEE-Reg.-Nr. 93834722 bei der Stiftung EAR angemeldet und recycelt alle gebrauchten elektronischen Bauteile ordnungsgemäß. Elektrische und elektronische Geräte dürfen nicht in den Hausmüll. Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß...
- Page 7 Vielen Dank für den Kauf des Amewi AFX MD500E Helikopters. Bitte lesen Sie die Bedienungsanleitung aufmerksam durch und bewahren Sie sie für spätere Fragen auf. Thank you for purchasing the Amewi AFX MD500E Helicopter. Please read the instruction manual carefully and keep it for future reference.
-
Page 8: Wichtige Hinweise
Sendemasten. Orten mit aktiven Funkwellen. Near crowds or in public places. Near rivers, ponds or lakes. Near electricity pylons or other Near a radio tower, mobile phone transmission towers. masts or other places with active radio waves. amewi.com... - Page 9 Da das Produkt kleinteile enthält, auf öffentlichen Straßen oder halten Sie es von kleinen Kindern fern. überfüllten Plätzen. As the product contains small parts, Do not operate the model on keep it away from small children. public roads or crowded places. amewi.com...
-
Page 10: Spezifikationen
SPECIFICATIONS SPEZIFIKATIONEN / Länge 355mm Length Höhe 126mm Height Gewicht 228g Weight Rotordurchmesser 320mm Rotor diameter Akku 7,4V 1200mAh Battery Flugzeit 15-17min. Flying time Ladezeit 90min. Charging time Hauptmotor 1807 Main motor Heckmotor 1103 Tail motor 320mm 335mm 126mm amewi.com... -
Page 11: Packaging List
6. Ersatzrotoren / Spare rotor 7. Anleitung / Instruction manual THE HELICOPTER DER HELIKOPTER / Rotorkopf Rotor Head Rotorblatthalterung Rotor Rotor Clip Taumelscheibe Heckrotor Rotorwelle Swash Plate Tail Rotor Rotor Shaft Heckmotor Akkuschacht Tail Motor Battery Compartment Landegestell Landing Gear amewi.com... -
Page 12: Die Fernsteuerung
Mode 1 / Mode 2 (press and hold, switch on remote control) INSTALL BATTERY AKKU EINLEGEN / Nehmen Sie die Haube ab und schieben Sie den Akku in das Akkufach. Open the hatch and place the battery into the battery compartment. amewi.com... - Page 13 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL MODELLBEZEICHNUNG 2. Positionieren Sie den Akku. Position the battery 3. Schieben Sie den Verschlussknopf nach rechts, um den Akku zu fixieren. Slide the locking knob to the right to fix the battery. amewi.com...
-
Page 14: Batterien Einlegen
Then connect the battery to the USB-C connector. Die LED leuchtet während des Ladevorgangs. Ist dieser beendet, erlischt die LED. The LED lights up during the charging process. When the charging process is finished, the LED goes out. amewi.com... -
Page 15: Installation Of The Antenna
Sie je eine Kufe Back Vorne mit zwei Schrauben. Front Align the landing gear with the corresponding holes on the fuselage and attach one skid to each with two screws. INSTALLATION OF THE ANTENNA MONTAGE DES ANTENNE / amewi.com... - Page 16 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL MODELLBEZEICHNUNG INSTALLATION OF THE WEAPONS (25336 ONLY) MONTAGE DER WAFFEN (NUR 25336) / amewi.com...
- Page 17 4. In emergency situations the motors of the helicopter can be switched off. Press the stop button for three seconds. The motors will then switch off immediately. Please note that the helicopter will crash and may be damaged. STOPP STOP amewi.com...
-
Page 18: Bedienung
Hebel hoch / Stick up Hebel runter / Stick down Rechter Richtungshebel / Right direction stick Nach links rollen Nach rechts rollen Roll to the left Roll to the right Hebel links / Stick left Hebel rechts / Stick right amewi.com... - Page 19 If you want to land the helicopter manually, pull the throttle all the way down and hold it. Once the helicopter has landed and the engines are off, you can release the lever. Alternatively, you can also land the helicopter using the "Auto landing button". Schritt 1 / Step 1 Schritt 2 / Step 2 Schritt 2 C / Step 2 C amewi.com...
- Page 20 Forward/Backward direction of the arrow Entsprechend der Pfeilrichtung trimmen Links/Rechts Gieren Trim according to the Left/Right Yaw direction of the arrow Entsprechend der Seitlich Gieren / Pfeilrichtung trimmen Side Fly Yaw Trim according to the direction of the arrow amewi.com...
-
Page 21: Gyro Calibration
RECEIVER DIAGRAM EMPFÄNGERDIAGRAMM / Querruderservo hinten/ Back Aileron Servo Querruderservo links / Left Aileron Servo Querruderservo rechts / Right Aileron Servo Optischer Sensor / Optical Sensor Heckleuchte / Tail Light Scheinwerfer / Front Light An-/Aus Schalter Power Switch FRONT FRONT amewi.com... -
Page 22: Fehlerbehebung
Prüfen Sie die Taumelscheibe Prüfen Sie, ob sich das Gestänge gelöst hat. The helicopter has a serious yaw Problems with a servo Check if the servos are working correctly. Problems with the linkage Check the swashplate. Check if the linkage has loosened. amewi.com... - Page 24 amewi.com...
