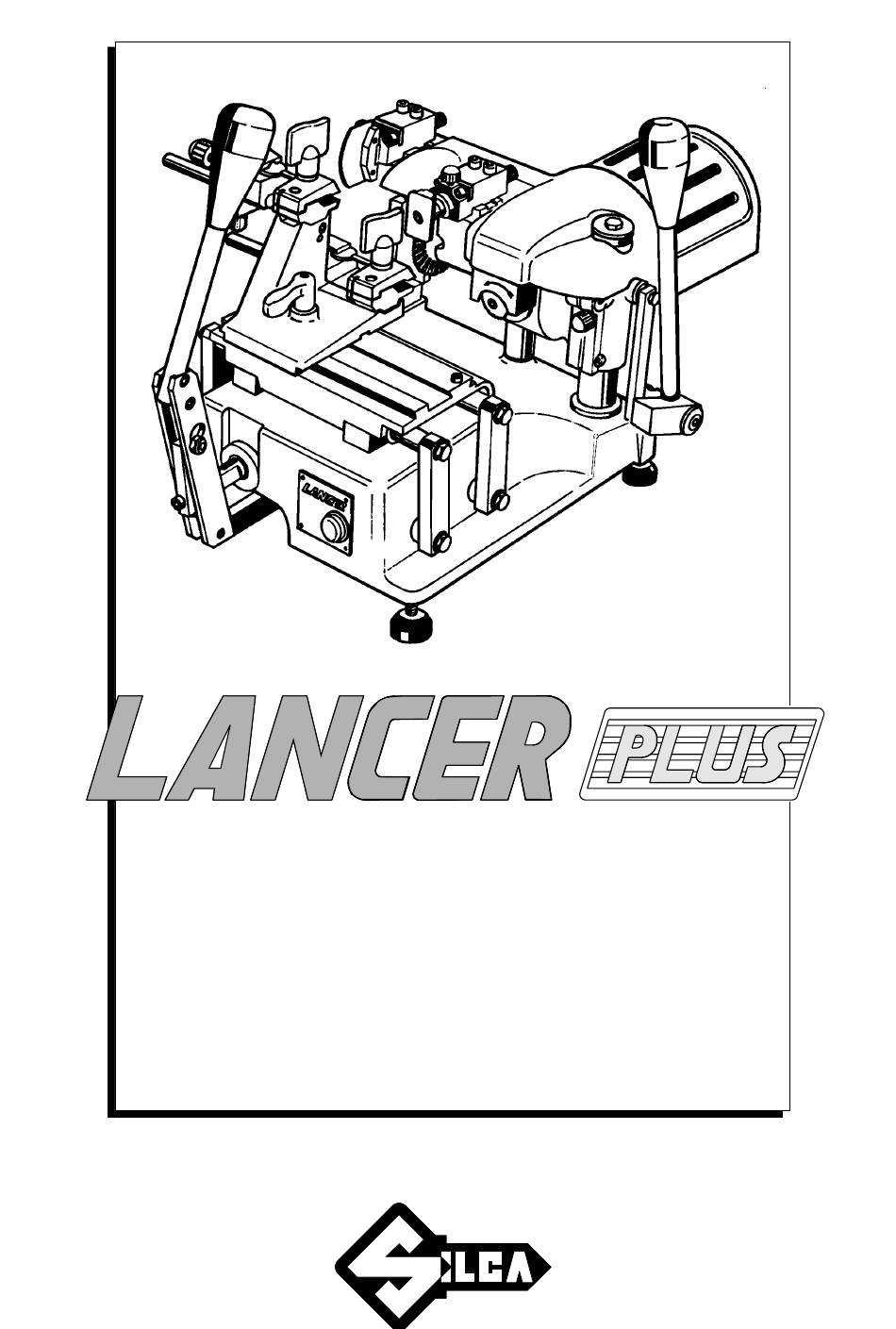

  • Page 1 Operating manual D411202XA vers. ®...
  • Page 2 (c) 1995 SILCA S.p.A. - Vittorio Veneto This manual has been drawn up by SILCA S.p.A. All rights reserved. No part of this publication may be reproduced or used in any form or by any means (photocopying, microfilm or other) without the permission of SILCA S.p.A.
  • Page 3: Table Of Contents

    LANCER PLUS Operating manual CONTENTS GUIDE TO THE MANUAL ..................1 GENERAL INSTRUCTIONS ................. 2 TRANSPORT ....................3 Packing ....................3 Transport ..................... 4 Opening the packing ................4 Handling the machine ................4 KEY CUTTING MACHINE DESCRIPTION ............ 5 Working parts ..................
  • Page 5: Guide To The Manual

    Operating manual GUIDE TO THE MANUAL This manual has been produced to serve as a guide for users of the LANCER PLUS key-cutting machine. Read it carefully; it is essential if you wish to operate your machine safely and efficiently.
  • Page 6: General Instructions

    The LANCER PLUS must be installed and used in the way laid down by the manufacturer. If the key-cutting machine is used differently or for purposes different from those described in this manual, the customer will forego any rights he may have over Silca S.p.A.
  • Page 7: Transport

    The packed machine can be carried by two persons. Packing The packing used for the LANCER PLUS guarantees that the machine will travel safely without danger of damage to it or its components. The packing comprises: 1 pallet, 1 cardboard box, straps and supports in expanded plastic in the machine is wrapped.
  • Page 8: Transport

    - 1connecting wire. Handling the machine When the LANCER PLUS has been unpacked, place it directly on its workbench. This operation can be carried out by two persons, firmly holding the base, and no other part, to lift and carry the machine.
  • Page 9: Key Cutting Machine Description

    Operating manual KEY CUTTING MACHINE DESCRIPTION The LANCER PLUS is a modern, high performance, key cutting machine, with the ability to cut many different type of keys without the use of specific jaws or carriages. A sliding carriage offers you the possibility to cut many types of keys.
  • Page 10 LANCER PLUS Operating manual The high quality of components parts guarantees precise duplication with the LANCER PLUS: • MOVEMENTS on the X and Y axes: on guides. on the Z axis: grinding and tempered column. • JAWS Reversible jaws permit sure locking of both radiused lever cuts keys and flat steel keys.
  • Page 11: Working Parts

    LANCER PLUS Operating manual Working parts Fig. 6 A - reversible jaws B - locking jaw handle C - headclamp D - main carriage E - main carriage locking lever F - lever (X and Y axes) G - lever (Z axis)
  • Page 12: Technical Data

    Noise pressure: Lp (A) = 86,15 dB (A) Noise potential: Lw (A) = 98,98 dB (A) Electrical circuit The main parts of the electrical circuit on the LANCER PLUS are listed below: Mains inlet houses the two rapid fuses which protect the two phases from short circuits.
  • Page 13: Accessories Provided

    LANCER PLUS Operating manual ACCESSORIES PROVIDED A set of accessories is supplied for use with the machine or for servicing (tools, Allen keys etc.) code D401198ZZ code D402302BA TOOLS WALLET STEEL TIP STOP BAR 1 pcs 2 pcs. code D400754BA...
  • Page 14: Machine Installation And Preparation

    Notwithstanding, it is always advisable to check that the machine has not suffered any damage. Atmospheric conditions To ensure that the best use is made of the LANCER PLUS key-cutting machine, certain parameters must be borne in mind: damp, badly ventilated sites should be avoided.
  • Page 15: Checking Calibration

    LANCER PLUS Operating manual CHECKING CALIBRATION The LANCER PLUS is calibrated in the Silca factory before dispatch but it’s recommended to check before operating. It’ also recommended to carry out these operations when fitting new cutters or tracer points. Checking AXIAL CALIBRATION AXIAL CALIBRATION for LEVER CUTS Position the main carriage on the left hand side (position 1 - fig.
  • Page 16: Checking Depth Calibration

    LANCER PLUS Operating manual Checking DEPTH CALIBRATION DEPTH CALIBRATION for lever cuts (ø 80 mm cutter) Position the main carriage on the left hand side (position 1 - fig. 12 on page 13) and install the setting tools (X) into the jaws.
  • Page 17: Machine Regulation And Positioning Of Keys

    LANCER PLUS Operating manual MACHINE REGULATION AND POSITIONING OF KEYS Main carriage Depending on the type of cut to be made the main carriage must be located in: position 1: to the left for flat, radiused lever cuts and flat steel keys;...
  • Page 18: Tracers

    LANCER PLUS Operating manual Tracers With the tracer (N) positioned as shown in fig. 14 you can make the side ward cuts. Loosening the locking screw (L) you can rotate the tracer and into the position shown in fig. 15 allowing you to cut bullet wards.
  • Page 19: Cutting Operations

    LANCER PLUS Operating manual CUTTING OPERATIONS • Cutting of keys with radiused lever cuts (CHUBB type) • Cutting of keys with flat lever cuts • Cutting of flat steel keys • Cutting of keys with side and bullet wards IMPORTANT! For complete safety during the cutting operations, take the following precautions: •...
  • Page 20: Cutting Of Keys Flat Lever Cuts

    LANCER PLUS Operating manual Cutting of keys FLAT LEVER CUTS Install the keys and duplicate as follows: 1) lowering the motor carriage using the lever (G1) until the original bit is aligned with the center mark on the tracer (fig. 19, page 15) and lock using knob (H) (fig. 6, page 7).
  • Page 21: Cutting Of Keys With Side And Bullet Wards

    LANCER PLUS Operating manual Cutting of keys with SIDE and BULLET WARDS Install the keys and position the main carriage on the right hand side (position 2 - fig. 12). SIDE WARDS 1) position the tracer as shown in fig. 22 and...
  • Page 22 LANCER PLUS Operating manual BULLET WARDS 1) position the tracer as shown in fig. 24 and operate as follows: 2) locate the tracer into the bullet ward using lever (F) and (G) while operating the switch in the handle, then sliding the main carriage from left to right you will reproduce the bullet ward.
  • Page 23: Maintenance

    ATTENTION: for repairs or replacement of parts for maintenance, the ‘CE’ mark is guaranteed only if original spare parts provided by the manufacturer are used. Although the LANCER PLUS key-cutting machine does not require special maintenance, it is advisable to check and, if necessary, replace the parts subject to wear, such as: cutter, tracer and fuses.
  • Page 24: Replacement Of Fuses

    Fuses must always be replaced with others of the same type (rapid or delayed) and with the same Amps, as shown in the manual. The LANCER PLUS key-cutting machine has two fuses (for both phases): 5 Amps rapid for machines with 220 Volt placed in the inlet socket on the back, to protect the key-cutting machine from sudden changes in voltage or short circuits.
  • Page 25: Waste Disposal

    Re-cycling is a recommended ecological practice. Packing The LANCER PLUS is consigned in a cardboard packing box which can be re-used if undamaged. When it is to be thrown away it is classified as solid urban waste and should be placed in the special paper collecting bins.
  • Page 26: Assistance

    10.1 How to request service The guarantee attached to LANCER PLUS key-cutting machine ensures free repairs or replacements of faulty parts within 24 months of purchase. All other service calls must be arranged by the customer with Silca or with Silca Service Centre.
  • Page 27 European Union DIRECTIVE 2006/95/CE (Low Voltage) and with the EN 60204-1 ( sections 20.2 – 20.3 – 20.4 ) Standards Claudio Tomasella of the Silca S.p.A. Research & Development Division is authorized to create a Technical File. General Manager Basic Production Center...
  • Page 28 Hong Kong plc@plc.com.hk 23 Man Lock Street +36-1-3290692 Hungary Kaba Elzett Megyeri út 51 Budapest 1044 +36-1-3501011 info@elzett.hu Minda Silca Engineering +91-987-397630 +91-120-2351301 India Plot No. 37, Toy City Greater Noida 201308 Ltd. +91-987-397631 info@mindasilca.in No.73 Stakhr. St - Emam...
  • Page 29 +381-11-3290017 Serbia Silkon D.O.O. 29, Novembra 70 Belgrade 11000 +381-11-2080200 silkon@ptt.yu 21 Toh Guan Rd. East +65-6316-4470 Singapore Silca Soxxi Pte. Ltd. Singapore 608609 +65-6316-8100 #01-12 Toh Guan Centre info@silca.sg +421-2-6252-0032 +421-2-6252-0034 Slovakia H&B Slovakia s.r.o. Ovsistske Nam. 1 Bratislava...
  • Page 30 SILCA S.p.A. Via Podgora, 20 (Z.I.) 31029 VITTORIO VENETO (TV) Tel. 0438 9136 Fax 0438 913800 E-mail: silca@silca.it www.silca.biz Members of the Kaba Group...
