- Page 1 NSTALLATION UIDE SCSI C 39320 DAPTEC...
- Page 2 NTRODUCTION The Adaptec SCSI Card 39320 enables you to connect up to 30 SCSI devices—such as very large arrays of high-performance hard disk drives, external storage subsystems, Ultra320/160 hard disk drives, scanners, and CD-ROM drives—to any Intel-based computer with 64- or 32-bit PCI/PCI-X expansion slots.
- Page 3 If you have single-ended Ultra SCSI and earlier SCSI devices, Adaptec recommends that you connect them together on one channel of the Adaptec SCSI Card 39320 and that you connect newer Ultra320/160 SCSI and Ultra2 devices to the other channel. This allows the Adaptec SCSI Card 39320 to dedicate...
- Page 4 Locate an unused 64-bit PCI/PCI-X expansion slot and remove the expansion slot cover. If the computer does not have a 64-bit slot, you can install the card in a 32-bit PCI slot. The Adaptec SCSI Card 39320 supports both 5V and 3.3V 64-bit slots. (The expansion slot must be compliant with PCI Rev.
-
Page 5: Setting U Pscsi Devices
Insert the Adaptec SCSI Card 39320 in the 64-bit (or 32-bit) PCI or PCI-X expansion slot; press down firmly until the card clicks into place, then replace the slot cover screw. When installed properly, the card should appear level with the expansion slot, as shown below. -
Page 6: Terminate The Ends

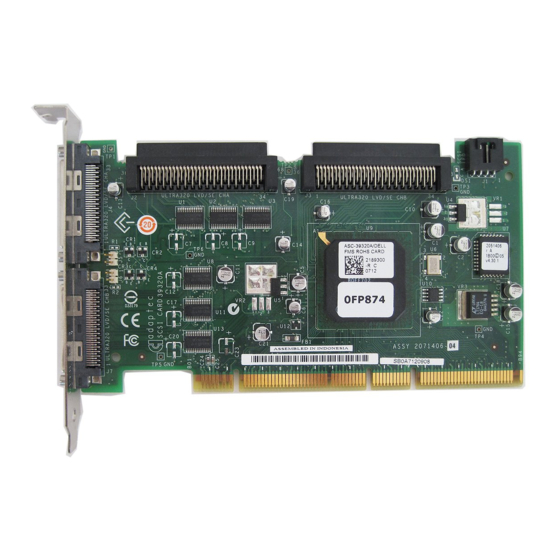

The Adaptec SCSI Card 39320 is preset to ID 7 for each channel and should not be changed. If you boot from a SCSI hard disk, make sure the hard disk SCSI ID is set to 0. (Most SCSI hard disks are preset to SCSI ID 0 at the factory.) The SCSI IDs for internal... - Page 7 The Adaptec SCSI Card 39320 has two separate Ultra320/160 SCSI channels, as shown in the figure on page 1. Both channels have an internal LVD/SE connector to which you can connect internal SCSI devices. Adaptec recommends that you keep your Ultra320/160 and Ultra2 SCSI devices on a separate SCSI channel from your Ultra SCSI devices.
- Page 8 Plug the nonterminated end of the cable(s) to one of the internal LVD/SE connector. Plug the internal Ultra320/160 and Ultra2 SCSI devices to the other cable connectors, starting with the connector at the terminated end of the cable. Plug first device to this connector Internal Ultra320/160 and Ultra2 SCSI devices come from the factory with termination disabled and cannot be...
-
Page 9: Connecting External Scsi Devices
We recommend that you do not combine older SCSI devices with the newer Ultra320/160 and Ultra2 SCSI devices on the same SCSI channel of the Adaptec SCSI Card 39320. Follow these steps to connect your external SCSI devices: Connect one end of an external SCSI cable to the external Ultra320/160 connector on the Adaptec SCSI Card 39320. - Page 10 Connect the other external SCSI devices by linking each device to the previous one, as shown below. Terminate only the device at the end of the chain. Terminated SCSI device Connect power cables to all external device(s) and to the computer.
-
Page 11: Troubleshooting
Adaptec SCSI Card 39320. Preloaded Adaptec Drivers If the Adaptec SCSI Card 39320 was included as part of a computer system you purchased, the system already has the appropriate Adaptec driver preinstalled by the computer manufacturer. - Page 12 Copyright © 2002 Adaptec, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.
- Page 13 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Adaptec, Inc. Tested to Comply With FCC Standards...
- Page 14 © 2002 Adaptec, Inc. All rights reserved Part Number: 513280-06, Ver. AA JG 08/02...
