- Page 1 NSTALLATION UIDE SCSI C 29320LP DAPTEC...

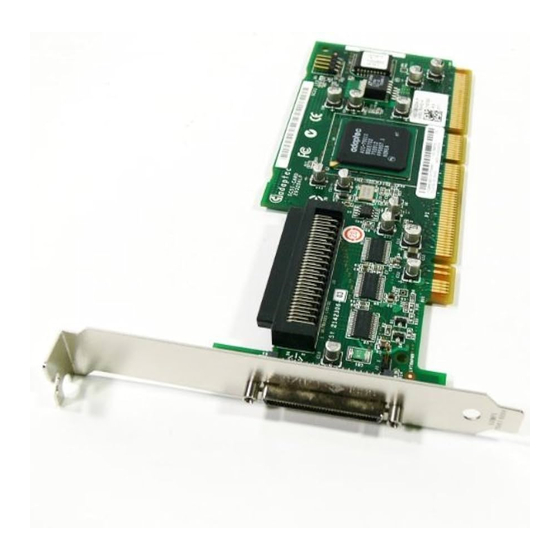

- Page 2 NTRODUCTION The Adaptec SCSI Card 29320LP enables you to connect up to 15 SCSI devices—such as very large arrays of high-performance hard disk drives, external storage subsystems, Ultra320/160 hard disk drives, scanners, and CD-ROM drives—to any Intel-based computer with 64- or 32-bit PCI/PCI-X expansion slots.
- Page 3 Locate an unused 64-bit PCI/PCI-X expansion slot and remove the expansion slot cover. If the computer does not have a 64-bit slot, you can install the card in a 32-bit PCI slot. The Adaptec SCSI Card 29320LP supports both 5V and 3.3V 64-bit slots. (The expansion slot must be compliant with PCI Rev.
- Page 4 29320LP in a PCI slot. Some 32-bit slots will not accommodate it, and the card may break if you force it into the slot. Insert the Adaptec SCSI Card 29320LP in the 64-bit (or 32-bit) PCI or PCI-X expansion slot; press down firmly until the card clicks into place, then replace the slot cover screw.
-
Page 5: Setting U Pscsi Devices
SCSI ID number ranging from 0 to 15. No two devices on the SCSI channel can have the same SCSI ID. The Adaptec SCSI Card 29320LP is preset to ID 7 and should not be changed. If you boot from a SCSI hard disk, make sure the hard disk SCSI ID is set to 0. -
Page 6: Connecting Scsi Devices
SCSI D ONNECTING You can connect a total of 15 SCSI devices to the Adaptec SCSI Card 29320LP. Before connecting devices, be sure to review Setting Up SCSI Devices on page 4. Connecting Internal Ultra320/160 and Ultra2 Devices A special 68-pin internal LVD cable is needed to connect internal Ultra320/160 or Ultra2 SCSI devices. - Page 7 Plug the nonterminated end of the cable(s) to the internal LVD/SE connector. Plug the internal Ultra320/160 and Ultra2 SCSI devices to the other cable connectors, starting with the connector at the terminated end of the cable. Plug first device to this connector Internal Ultra320/160 and Ultra2 SCSI devices come from the factory with termination disabled and cannot be changed.
-
Page 8: Connecting External Scsi Devices
68-pin VHDCI external LVD SCSI cable. Follow these steps to connect your external SCSI devices: Connect one end of an external SCSI cable to the external Ultra320/160 connector on the Adaptec SCSI Card 29320LP. 68-pin external LVD/VHDCI SCSI... - Page 9 Connect the other external SCSI devices by linking each device to the previous one, as shown below. Terminate only the device at the end of the chain. Terminated SCSI device Connect power cables to all external device(s) and to the computer.
-
Page 10: Troubleshooting
Adaptec SCSI Card 29320LP. Preloaded Adaptec Drivers If the Adaptec SCSI Card 29320LP was included as part of a computer system you purchased, the system already has the appropriate Adaptec driver preinstalled by the computer manufacturer. - Page 11 Copyright © 2002 Adaptec, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.
- Page 12 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Adaptec, Inc. Tested to Comply With FCC Standards...
- Page 13 © 2002 Adaptec, Inc. All rights reserved Part Number: 513327-06, Ver. AA JG 08/02...
