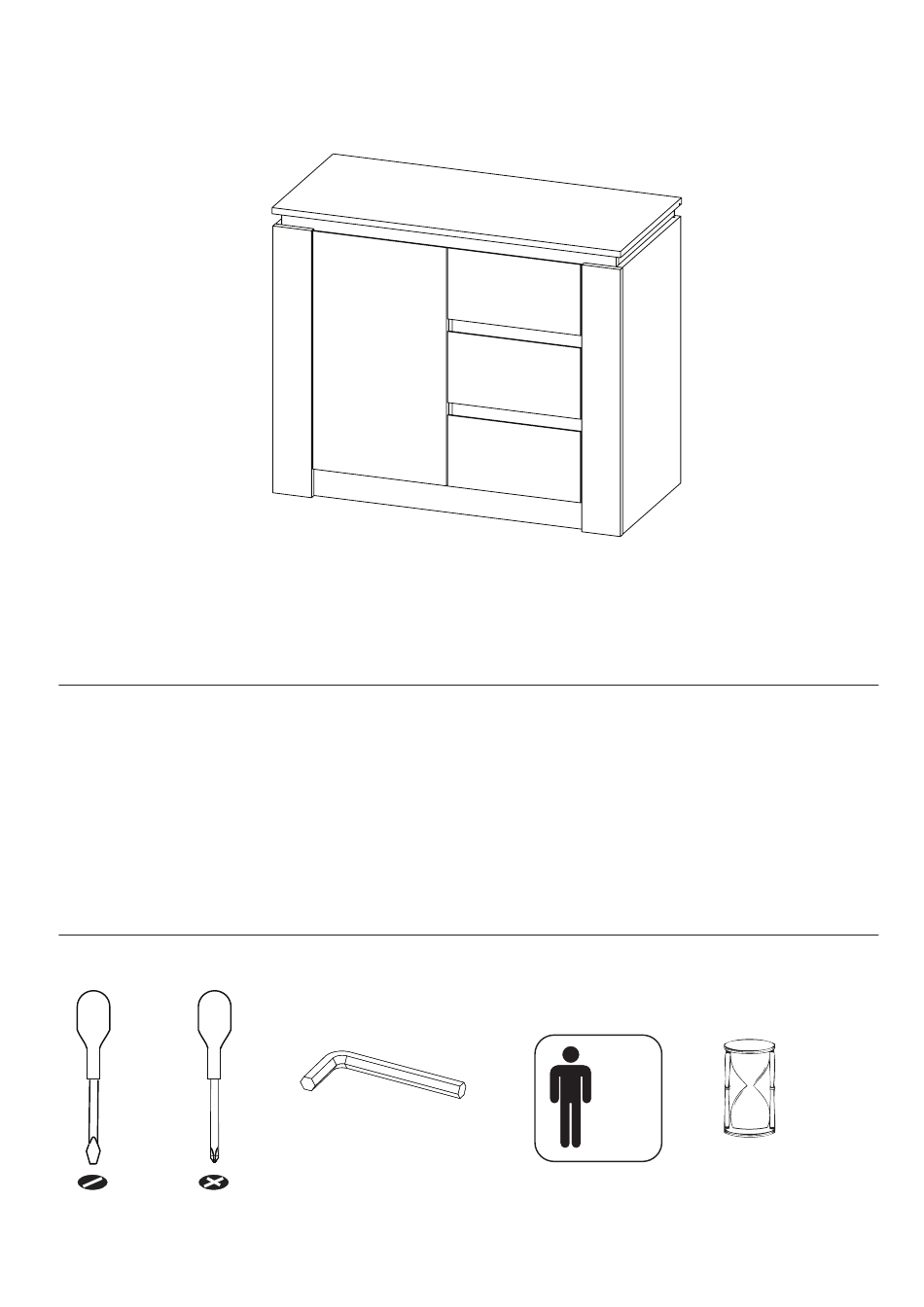

CANYON MULTI UNIT ASSEMBLY INSTRUCTIONS
Thank you for purchasing this versatile multi storage unit.
Please read the instructions carefully to ensure safe operation of this product.
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking.
Tools Required
Size:
8
5
5 .
x
3
9
6 .
Colour:
Dark Oak
Version 1 - 210818
PO No : _____
Page 1 of 16
x
7
0
c
m
(WDH)
x2
1.5 Hour
Set Up
