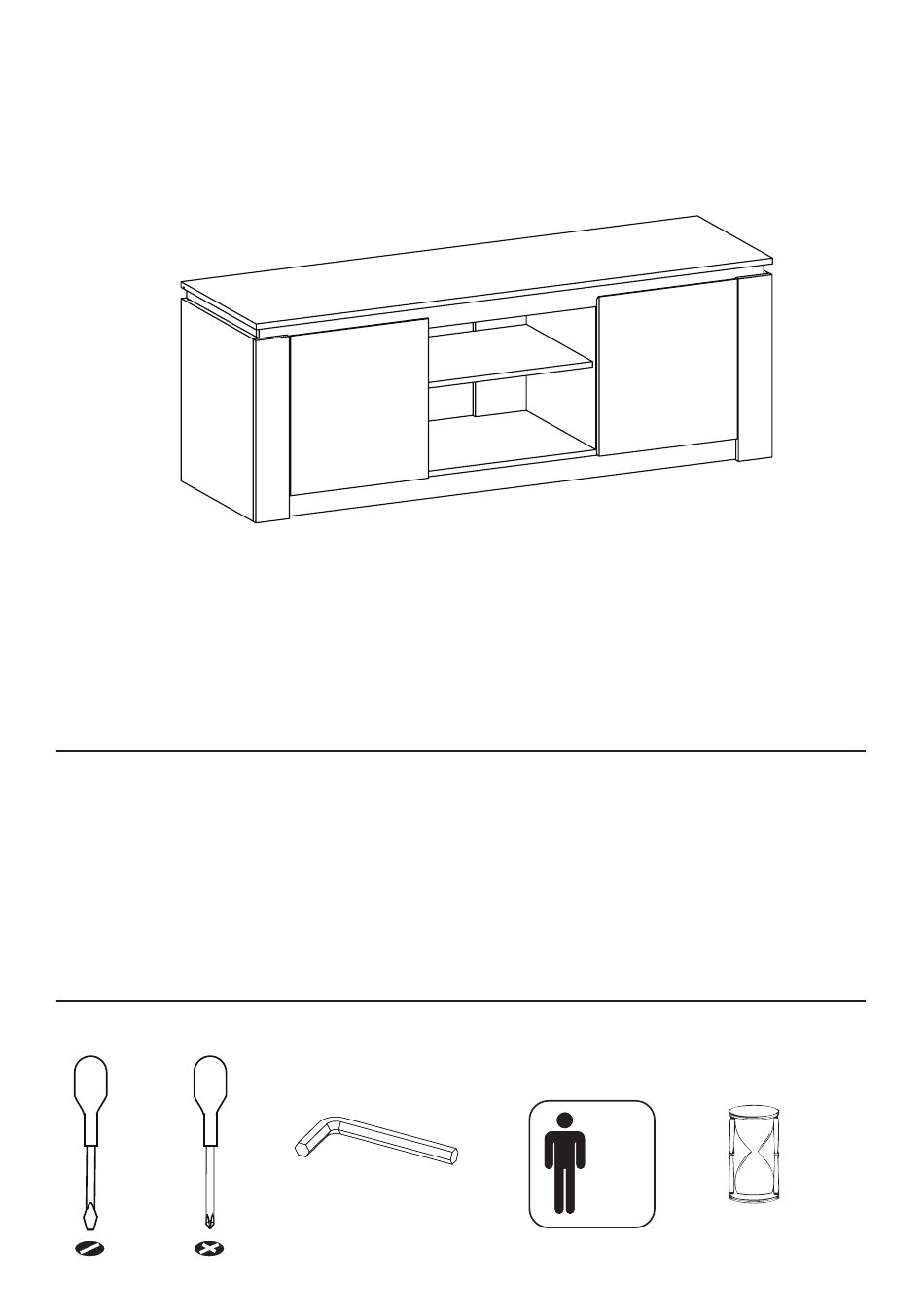

CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS
Thank you for purchasing the Canyon Oak TV Unit.
Please read the instructions carefully to ensure safe operation of this product.
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking.
Size: 147 x 45 x 60 cm (WDH)
Colours: Canyon Oak
Finish: Paper Veneer
Tools Required
Batch No. 221511
Page 1 of 12
Number of people
x2
1 Hour
Set Up

Advertisement

loading
Need help?

Need help?

Do you have a question about the CANYON OAK and is the answer not in the manual?

Questions and answers

Summary of Contents for GFW CANYON OAK

  • Page 1 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS Thank you for purchasing the Canyon Oak TV Unit. Please read the instructions carefully to ensure safe operation of this product. Size: 147 x 45 x 60 cm (WDH) Colours: Canyon Oak Finish: Paper Veneer PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
  • Page 2: Care Information

    CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is designed to support a maximum weight of 15 kg. Do not exceed this weight. We recommend that this unit is assembled in the room intended for use.
  • Page 3 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. Batch No. 221511...
  • Page 4 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS All parts are packed in one carton Description: Cross Plinth Description: Plinth Description: Base Panel Qty: 2 Qty: 2 Qty: 1 Carton No: 1/1 Carton No: 1/1 Carton No: 1/1 Description: RH Side Panel...
  • Page 5: General Hints & Tips

    CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS Fittings (to scale) Dimensions Cam Lock Cam Bolt Dowel (8x30mm) Connection Screw (M6x25mm) Screw for fitting Hinge (4x14mm) (not to scale) Dimensions Allen Key 4mm Hinge General Hints & Tips 24mm Stop when level Tighten Batch No.
  • Page 6 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS STEP 1 For this step: 1 x2 Tools required 2 x2 Fittings required B x4 D x26 STEP 2 For this step: Tools required Tighten Fittings required A x4 B x4 D x4 Batch No. 221511...
  • Page 7 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS STEP 3 For this step: Tools required Fittings required A x4 Tighten B x4 D x12 STEP 4 For this step: 9 x2 Tools required Fittings required Tighten A x4 D x8 Batch No. 221511...
  • Page 8 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS STEP 5 Tools required Fittings required Tighten A x6 B x6 STEP 6 Tools required Tighten Fittings required A x2 B x2 D x8 Batch No. 221511 Page 8 of 12...
  • Page 9 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS STEP 7 Tools required Fittings required E x6 STEP 8 Tools required Fittings required F x4 G x8 Batch No. 221511 Page 9 of 12...
  • Page 10 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS STEP 9 Tools required Fittings required G x8 Batch No. 221511 Page 10 of 12...
  • Page 11 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS STEP 10 Tools required Fittings required A x11 Tighten B x11 Batch No. 221511 Page 11 of 12...
  • Page 12 CANYON OAK TV UNIT ASSEMBLY INSTRUCTIONS Assembly Completed Your Canyon Oak TV Unit is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure.
