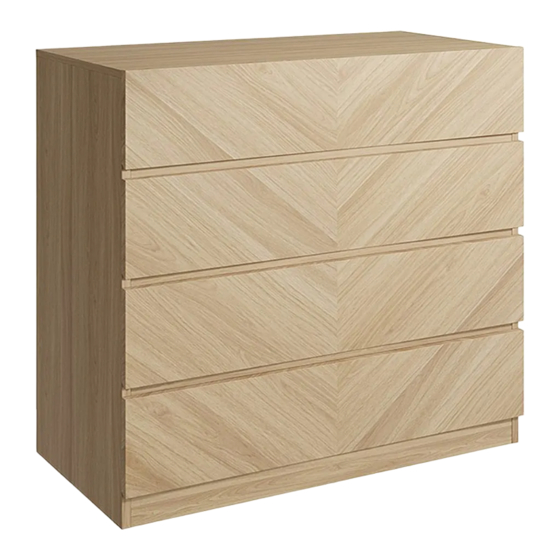

Thank you for purchasing the CATANIA 4 DRAWER CHEST. Please read the instructions
carefully to ensure safe operation of the product.
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking hazards.
Tools Required
CATANIA 4 DRAWER CHEST
ASSEMBLY INSTRUCTIONS
Size: 770 x 395 x 890mm
Person Required
3.5m/12'
x 2
V1 2022.07
Page 1 of 16
Approximate
Assembly Time
1 Hour
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GFW CATANIA 4 DRAWER CHEST
Summary of Contents for GFW CATANIA 4 DRAWER CHEST
- Page 1 CATANIA 4 DRAWER CHEST ASSEMBLY INSTRUCTIONS Thank you for purchasing the CATANIA 4 DRAWER CHEST. Please read the instructions carefully to ensure safe operation of the product. Size: 770 x 395 x 890mm PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
-
Page 2: Care Information
IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION � Due to the size of this product we recommend that it is assembled in the room intended for use. � When you are ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly. - Page 3 Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children. Parts CODE PART NAME DIMENSION CODE PART NAME QTY DIMENSION Side Panel - L 15 x 380 x 870mm...
- Page 4 Fixings (to scale) 4 cm 3 cm 2 cm 1 cm 0 cm M3.5 x 15mm M4 x 38mm EU 24 Dia. 8 x 30mm #10 x 16mm CSK Screw CSK Screw Minifix Bolt Wooden Dowel Tapping Screw 2 cm 1 cm 0 cm M6 x 8mm...
- Page 5 Layout Parts on Soft Surface V1 2022.07 Page 5 of 16...
- Page 6 STEP 1 16 x FRONT BACK SECOND HOLE PLEASE ENSURE TO FIX THE SCREWS AS PER ABOVE POINTED HOLES INSTRUCTION TO AVOID DISTORTION OF OVERALL LOOK OF PRODUCTS STEP 2 18 x V1 2022.07 Page 6 of 16...
- Page 7 STEP 3 (3x) STEP 4 (3x) STEP 5 V1 2022.07 Page 7 of 16...
- Page 8 STEP 6 30 x STEP 7 12 x V1 2022.07 Page 8 of 16...
- Page 9 STEP 8 STEP 9 V1 2022.07 Page 9 of 16...
- Page 10 STEP 10 Do not tighten STEP 11 V1 2022.07 Page 10 of 16...
- Page 11 STEP 12 STEP 13 14 x V1 2022.07 Page 11 of 16...
- Page 12 STEP 14 NOTE : Wall fixing are not supplied with this product as different wall materials require different types of fixing devices (such as Rawl plugs on brick work). You must use fixing devices suitable for the type of wall you intend to mount this product to. Please ensure that the head of any screw used has a diameter greater that the diameter of the mounting hole on the product and that the fixing is safe and...
- Page 13 STEP 15 (4x) STEP 16 32 x (4x) STEP 17 (4x) V1 2022.07 Page 13 of 16...
- Page 14 STEP 18 (4x) STEP 19 16 x (4x) V1 2022.07 Page 14 of 16...
- Page 15 STEP 20 16 x LAST THIRD HOLE BACK THIRD HOLE (4x) FRONT STEP 21 V1 2022.07 Page 15 of 16...
-
Page 16: Complete Assembly
Complete Assembly Your CATANIA 4 DRAWER CHEST is now completely assembled. Periodically check to ensure that the components are in proper position, free from damage. Also, make sure the connectors are tight and secure. Keep instructions for future reference V1 2022.07...
