- Page 1 User’s Manual...

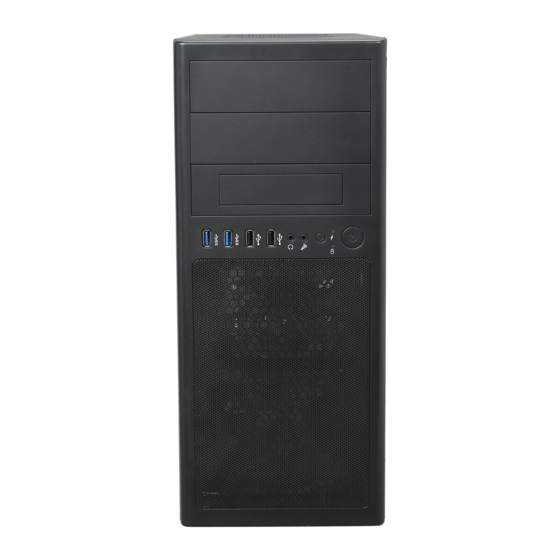

- Page 2 Product Overview Disassemble Chart Accessory Box Installation Guide Opening Chassis Installing Power Supply Installing Motherboard Installing Add On Card P.7~8 Installing External 5.25" Device Installing External 3.5" Device P.7~8 Installing 3.5”/2.5” HDD/SSD Information P.10 © All rights reserved by Rosewill...
-
Page 3: Disassemble Chart
FPOUT~R NO PIN RET~L FPOUT~L NO PIN USB2.0 CONNECTOR HD CONNECTOR USB+5V USB+5V AUD GND PORT1L PRESENCE# PORT1R SENSE1 RETURN PORT2R NO PIN SENSE SEND NO PIN SENSE2 RETURN PORT2L NO PIN NO PIN © All rights reserved by Rosewill... -
Page 4: Accessory Box
3.5” device 6 x MB stand-off Motherboard PCI card 11 x Screw C 2 x PCI cover PCI slot 1 x PC SPEAKER Motherboard 5 x Cable tie Cables Motherboard 1 x Stand-off socket Stand-off © All rights reserved by Rosewill... - Page 5 Place the power supply from the left side into the chassis and secure with screw-D. NOTICE : -If your power supply is equipped with single fan (120mm, 135mm or 140mm), please have the fan face to the bottom. © All rights reserved by Rosewill...
- Page 6 User's Manual Motherboard stand-off position M = Micro-ATX A = ATX -Install motherboard stand-offs according to your motherboard’s form factor. -Place the motherboard onto stand-offs and secure with screw-A. * Install/Uninstall stand-offs by stand-off socket. © All rights reserved by Rosewill...
- Page 7 CASE LINE User's Manual -Bend to remove the PCI slot cover. -Install the add-on card into its position. -Secure with screw-D. © All rights reserved by Rosewill...
- Page 8 CASE LINE User's Manual Pull from the bottom to remove the front panel. Confirm which bay(s) you want to install device(s) then remove the bay cover. © All rights reserved by Rosewill...
- Page 9 LINE User's Manual -Put external 3.5” device onto the 5.25” to 3.5” adapter then secure with screw-B. -Insert external 5.25” & 3.5 “ devices into position then secure with tool-less kits(or screw-B). UNLOCK LOCK © All rights reserved by Rosewill...
- Page 10 2.5” HDD/SSD 3.5” HDD -Insert it into its slot and secure with tool-less kits(or screw-A). 2.5” HDD/SSD -Install 2.5” HDD/SSD onto adapter with screw-B. -Insert it into its slot and secure with tool-less kits(or screw-A). © All rights reserved by Rosewill...
- Page 11 Please register your product at : http://www.rosewill.com for complete warranty information and future support for your product. If you have any question while using our products, please visit our website : www.rosewill.com for latest driver & user manual or feel free to contact us.
- Page 12 www.rosewill.com...
