Summary of Contents for Elsteam KT Series

  • Page 1 KT Series Immersed electrode humidifiers...
  • Page 2: Table Of Contents

    6. ELECTRICAL CONNECTIONS ......................18 6.1 Before starting .............................18 6.2 Connection best practices ........................18 6.2.1 Wiring best practices ..........................18 6.2.2 Replacing fuses - Fuse holder ........................20 6.2.3 Replacing fuses - Control board .......................21 924KTE4.01 - KT series humidifiers | 2 | 05/2021...
  • Page 3 12.1 Models KT3 ............................33 12.2 Models KT5-400 ..........................34 12.3 Models KT10-230 ..........................35 12.4 Models KT10-400 / KT20-400 ......................36 12.5 Models KT20-230 ..........................37 12.6 Models KT30-400 ..........................38 12.7 Models KT40-400 / KT60-400 ......................39 924KTE4.01 - KT series humidifiers | 3 | 05/2021...
  • Page 4: Important Information

    IMPORTANT INFORMATION Liability and residual risks ELSTEAM assumes no liability for any damage caused by the following (by way of example; this is not an exhaustive list): •  I nstallation/useforpurposesotherthanthosespecifiedand,inparticular,notadheringtothesafetyprovisionssetout by current regulations in the country in which the product is installed and/or contained in this manual;...
  • Page 5: Important Safety Information

    NOTICE indicates a situation not related to physical injuries but which,ifnotavoided, could damage the equipment. N.B.: T hemaintenance,repair,installationanduseoftheequipmentmustonlybeentrustedtoqualifiedpersonnel. QUALIFIED PERSONNEL Only suitably trained and experienced personnel capable of understanding the content of this manual and all documentation regardingtheproductareauthorisedtoworkonandwiththisequipment.Furthermore,thepersonnelmusthavecompleted coursesinsafetyandmustbeabletorecogniseandpreventtheimplieddangers.Thepersonnelmusthavesuitabletraining, knowledgeandexperienceatatechnicallevel,andbecapableofanticipatinganddetectingpotentialriskscausedbyusing theproduct,aswellaschangingthesettingsandmodifyingthemechanical,electricandelectronicequipmentfortheentire systeminwhichtheproductisused.Allpersonnelworkingonandwiththeproductmustbeentirelyfamiliarwiththerelevant standardsanddirectives,aswellassafetyregulations. 924KTE4.01 - KT series humidifiers | 5 | 05/2021...
  • Page 6: Safety Information Relating To The Product

    • Do not connect wires to unused terminals and/or to terminals labelled “No connection “(N.C.)”. Thehumidifierproducessteamat100°C(212°F)anddischargeswaterwithatemperatureofapproximately98°C(208.4°F). WARNING HOT STEAM Do not touch the equipment when it is in operation. WARNING RISK OF BURNS Beforecarryingoutanyworkonthesystem,disconnectthehumidifierandwaituntilithascooleddown(<50°C(122°F)). WARNING REGULATORY NON-COMPLIANCE Makesurealltheequipmentusedandthedesignedsystemscomplywithcurrentlocal,regionalandnationalregulationsand standards. 924KTE4.01 - KT series humidifiers | 6 | 05/2021...
  • Page 7: Introduction

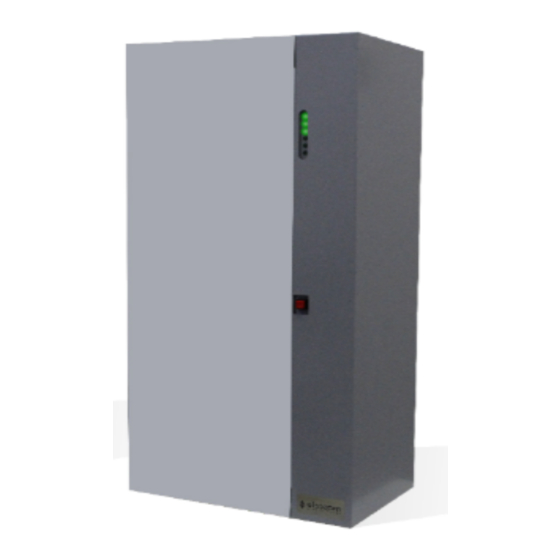

    1. INTRODUCTION 1.1 Description The KT series is a range of immersed electrode humidifiers by ELSTEAM. The humidifiers in the KT series generate humidity (steam) when a current is applied to two or more electrodes immersed in tap water,causingthewatertoboil. Thesteamiscontrolledbymodulatingtheintensityofthecurrenttransferredtothewaterbytheimmersedelectrodes,soby indirectly controlling the boiling water.
  • Page 8: Accessories

    1.4 Accessories The following accessories are available for the immersed electrode humidifiers in the KT series: Description EHSD040 Linearsteamdistributor,400mm(15.75in.) EHSD060 Linearsteamdistributor,600mm(23.62in.) EHSD080 Linearsteamdistributor,800mm(31.49in.) EHSD100 Linearsteamdistributor,1000mm(3.28ft) EHSD130 Linearsteamdistributor,1300mm(4.26ft) EHSD160 Linearsteamdistributor,1600mm(5.25ft) EHSD200 Linearsteamdistributor,2000mm(6.56ft) EHSDSP0 Linearsteamdistributor,lengthonrequest EHSDY00 Yfitting,diameter38mm EHSR0107 Steam blower for room...
  • Page 9: Technical Data

    Water drain external dimensions mm (in.) 42 (1.65) General characteristics Dimensions mm (in.) See "4.1 DIMENSIONS" ON PAGE 11 Weight Hydraulic unit IP protection Regulation Type of controller Built-in Command signal Proportional(0-10V)orON-OFF Compliance CE certification √ 924KTE4.01 - KT series humidifiers |9| 05/2021...
  • Page 10: Delivery Of Product

    (accept the goods subject to inspection). 3.1.1 Opening the packaging • Movethepackagingtowherethehumidifieristobeinstalled; • Openthecardboardpackagingandremovetheprotectivepolystyrenecorners; • Pullthehumidifierout. 3.1.2 Checking the contents Thepackagingcontains: • KT serieshumidifier; • Operation and maintenance manual; • Pipefittingthatfeedswaterfromthemainstothehumidifier’swaterloadsolenoidvalve; • Hexkeytoopenthecabinet. 924KTE4.01 - KT series humidifiers | 10 | 05/2021...
  • Page 11: Dimensions And Mechanical Assembly

    • Install all the equipment in accordance with the technical specifications given in the respective documentation. mm (in.) 300 (11.81) 300 (11.81) 300 (11.81) 300 (11.81) KT40 400 KT10 ...KT5 KT60 400 KT10...KT3 Fig. 2. Minimum installation distances 924KTE4.01 - KT series humidifiers | 11 | 05/2021...
  • Page 12: Installation

    N.B.: Installation of models KT40 / KT60 is the same as above. 4.3.1 Installation instructions DANGER RISK OF ELECTRIC SHOCK, EXPLOSION OR ELECTRIC ARC Makesuretheequipmentisproperlyearthed. NOTICE IRREGULAR INSTALLATION Usebracketswithaminimumload-bearingcapacityof80kgwheninstallingthehumidifier. • OpenthepanelsofthehumidifierbyremovingtheheadlessscrewswiththeSW2.5hexkey; • Removethepanelsoneatatime,pullingthemtowardsyoufromthebottomandliftingthemup; • Removethehumidifierfromthepolystyrene; •  H ookthehumidifierontothebracketsonthewallusingtheslotsattherearofthehumidifier. 924KTE4.01 - KT series humidifiers | 12 | 05/2021...
  • Page 13: Installation

    MALFUNCTIONING OF THE EQUIPMENT • Do not use softened water. • Oncethehumidifierhasbeeninstalled,flushthepipeswiththeremainingwatertopreventblockingthefilter. • Checkallthepartsofthehumidifierareintact. • Ifevenonepartofthehumidifierisdamaged,suspendinstallation. 5.3 Water discharge system Asthishumidifierhasanautomaticboilercleaningfunction,thewateroutletmusthaveacapacityofatleast10litresinafew seconds (maximum 1 l/s). NOTICE MALFUNCTIONING OF THE EQUIPMENT Sizetheoutletpipetopreventobstructionsorblockagesduringtheautomaticcleaningcycle. 924KTE4.01 - KT series humidifiers | 13 | 05/2021...
  • Page 14: Characteristics Of Fitting

    • Minimum average slope of 45° with no siphons. Ifthesecharacteristicscannotberespected,abasinmust be placed at the bottom of the humidifier to collect water and limescale (p/n VI) (contact ELSTEAM’s sales office for more information). Features of basin • Drainage pipe with siphon to collect limescale.
  • Page 15: Permitted Positioning Of The Distributor In The Duct

    5.4.1 Permitted positioning of the distributor in the duct Horizontal installation Fig. 5. Horizontal installation - 1 distributor Fig. 6. Horizontal installation - 2 distributors Vertical installation Fig. 7. Vertical installation - 1-2 distributors 924KTE4.01 - KT series humidifiers | 15 | 05/2021...
  • Page 16: Examples Of Distributor Installation In The Duct

    Distributor is installed in a vertical duct. Direction of air flow is not relevant. Installation example no. 3 Distributorisinstalledverticallyinahorizontalduct, positioned higher than the humidifier. Direction of air flow corresponds to the slope of the ramp. 924KTE4.01 - KT series humidifiers | 16 | 05/2021...
  • Page 17: Distributing Steam In The Room

    Do not touch the equipment when it is in operation. Itmustbepositionedatleastonemetrefromtheceiling(3.28ft.). Steam blower power supply Steam blowers: • Single-phase 230 Vac models: Powered directly by the fuse holder. • Three-phase models: Powered directly by the 230 Vac mains voltage. 924KTE4.01 - KT series humidifiers | 17 | 05/2021...
  • Page 18: Electrical Connections

    • Minimise the length of the connections as much as possible and avoid winding the cables around electrically connected parts. • Beforeapplyingthepowersupply,checkallthewiringconnections. • Do not connect cables to unused terminals and/or to terminals labelled “No connection “(N.C.)”. 924KTE4.01 - KT series humidifiers |18| 05/2021...
  • Page 19 No. of conductors 3 (35) + 1 (25) Fig. 15. Suitable wiring for power supply - KT60 N.B.: For models KT3 / KT5 / KT10 / KT10 230 / KT20wiringisdirectlyatthefuseholder,whilefortheothermodelsitis directly at the disconnector. 924KTE4.01 - KT series humidifiers |19| 05/2021...
  • Page 20: Replacing Fuses - Fuse Holder

    10x38 10x38 10x38 10x38 10x38 Fig. 16. Overload protection devices according to model 6.2.2 Replacing fuses - Fuse holder Fig. 17. Overload protection devices N.B.: Only for models KT3/KT5/KT10/KT10 230/KT20 400. 924KTE4.01 - KT series humidifiers | 20 | 05/2021...
  • Page 21: Replacing Fuses - Control Board

    6.2.3 Replacing fuses - Control board Fig. 18. Protection devices on the control board Reference Function Description Terminal block M1 ProtectionagainstoverloadofauxiliaryterminalblockM1 Transformer Protection against overload of amperometric transformer 924KTE4.01 - KT series humidifiers | 21 | 05/2021...
  • Page 22: Wiring Diagrams

    No connection (N.C.) Connection with humidistat analogue output (+) Connection with humidistat analogue output (-) Short-circuiting The humidifier has an analogue input 0...12 Vdc. Contact the ELSTEAM sales office for other configurations. 924KTE4.01 - KT series humidifiers | 22 | 05/2021...
  • Page 23: Connection With Humidistat With Resistive Output

    WIRING DIAGRAMS" ON PAGE 22) Connection with contactor AUX output Connection with contactor AUX output This connection should only be made with humidifiers in centralised and ducted ventilation systems. It interrupts steam productionwheneverairventilationintheductsceases.Ifitwerenotinterrupted,steamwouldbuildupintheducts,causing irregularcondensateand,asaresult,watermayleakout. 924KTE4.01 - KT series humidifiers | 23 | 05/2021...
  • Page 24: User Interface And Initialisation

    This comes on when the contactor is active. It goes off when the contactor is deactivated. If it stays on but the contactor is not activated (upon request): 1)FuseF2hasblown; L6 Red Contactor 2)Thecontactorcoilisnotworking; 3)Thevoltagetransformerisnotworking; 4)Theelectronicboardisnotworking. 924KTE4.01 - KT series humidifiers | 24 | 05/2021...
  • Page 25: Switching On And Starting Up

    • Closethepanelsofthehumidifier; • Activatethedisconnectorinstalledontheoutsideofthehumidifierandopenthewater; • PresstheON/OFFkeyonthefrontofthehumidifiertostartitup; • Setthehumidityrequestsetpointto100%,LEDs1and2willcomeon; •  T hehumidifierwillstartawaterfeedcycle(LED4willcomeonwhenfeeding)andadischargecycle(LED6willcomeon when discharging); • Whenitisfullydischarged(LED6willgooff),setthehumidityrequestsetpointasrequired; •  U ponreceivingthehumidityrequest,thehumidifierbeginsfeedingwaterintotheboileruntilitreachestheminimum level that guarantees rapid steam production. •  T hehumidifierregularlydischargesallthewaterandrefillsagain,performingawashingcycletoensureoptimal operating conditions. 924KTE4.01 - KT series humidifiers | 25 | 05/2021...
  • Page 26: Operation

    N.B.: The potentiometers are calibratedin the factory. Please contact ELSTEAM customer service for custom calibration. This can only be done by personnel authorised by ELSTEAM. ELSTEAM shall not be liable for any effects caused by non- authorised personnel tampering with the potentiometers.
  • Page 27: Maintenance

    RISK OF BURNS Beforecarryingoutanyworkonthesystem,disconnectthehumidifierandwaituntilithascooleddown(<50°C(122°F)). 9.1 Introduction The humidifiers in the KT series are designed to operate with the "5.2.1 CHARACTERISTICS OF WATER" ON PAGE 13. Iftheyaredifferentorifthewaterbecomesincreasinglyhard,approachingthemaximumvalueof50°f,thehumidifierwill require more regular maintenance. The boiler supplied should be serviced and cleaned every season in the following conditions:...
  • Page 28: Periodical Cleaning Of The Product And Parts

    RISK OF ELECTRIC SHOCK, EXPLOSION OR ELECTRIC ARC • Beforecarryingoutanyworkonthehumidifier,includinganykindofmaintenance,itmustbedisconnectedfromthepower supply. • Ifwaterbeginsleakingfromtheboiler,disconnectthehumidifierimmediatelyfromthemains. •  I fanythingunusualorirregularhappenswhichisnotdescribedinthismanual,servicetheboilerand/orreplaceit. Contact ELSTEAM Customer Service for advice and instructions; DANGER RISK OF ELECTRIC SHOCK, EXPLOSION OR ELECTRIC ARC Ifanythingunusualorirregularhappens,disconnectthehumidifierimmediatelyfromthemains. •  A fterextendedoperationand/orduetothewaterused,limescalecanbuildupinsidetheboiler,bringingtheelectrodes closertogetherortothewallsoftheboiler.Theycanpotentiallybecomeelectricalconductorswhich,whenthereisno waterintheboiler,cancausethetemperaturetorise(andthesurfaceoftheboilertobecomeblack)andtheboilerwall tomelt(withelectricallychargedwaterleakingout);...
  • Page 29: Cleaning The Boiler

    Fig. 26. Passing the cable through the AT 9.6 Installing the boiler • Place the boiler on its supports; • Connectthesolenoidvalvetofeedthewaterandscrewthetwoscrewsonthetopofthehumidifiertight; • Insert the inspection cap and tighten the tie; • Insertthepanelsofthehumidifierasdescribed"4.3 INSTALLATION" ON PAGE 12 924KTE4.01 - KT series humidifiers |29| 05/2021...
  • Page 30: Spare Parts

    10. SPARE PARTS 10.1 Hydraulics Fig. 27. Spare parts KT series - Hydraulics Ref. Description Ref. Description BKT3 Boiler for KT3 and KT5 KT0K03 Solenoidvalvekittofeedwater BKT10 Boiler for KT10 BKTK05 Sealkit BKT20 Boiler for KT20 and KT40 KT0K05 BrowncablekitforKT20andKT40 BKT30...
  • Page 31: Electrics

    10.2 Electrics KT3 / KT10 / KT10 230 / KT20 230 / KT30 / KT40 / KT20 / KT5 KT 60 Fig. 28. Spare parts KT series - Electrics Ref. Description KT0K12 Control board 0209310001 Contactor for models KT3/KT5/KT10 0209310002 Contactor for models KT20...
  • Page 32: What To Do If

    This means that the water has not been changed properly. • Checktherearenoproblemswithwaterfeeding:filtersblocked,incompletewateropening,etc...; •  C heckthesiphondrainisnotblocked:disconnectthepower,opentheplug(10)andremoveanyobstructions. 4. Duringoperation,thehumidifiermaysignalitisoverproducing(signal5on)andawaterchangestartsup. • CheckpotentiometerP5isintherightpositionandturnitclockwise; • ReducethehumidistatrequestbyturningpotentiometerP2anticlockwise. 5. Duringoperation,thehumidifierfeedswaterintotheverticalsiphonhose(7). • Reduce the humidistat request (P2) and manually empty the vertical hose. 924KTE4.01 - KT series humidifiers | 32 | 05/2021...
  • Page 33: Wiring Diagrams

    12. WIRING DIAGRAMS 12.1 Models KT3 DOOR SAFETY ON/OFF SYPHON Fig. 29. Wiring diagram models KT3 924KTE4.01 - KT series humidifiers | 33 | 05/2021...
  • Page 34: Models Kt5-400

    12.2 Models KT5-400 DOOR SAFETY ON/OFF SYPHON Fig. 30. Wiring diagram models KT5-400 924KTE4.01 - KT series humidifiers | 34 | 05/2021...
  • Page 35: Models Kt10-230

    12.3 Models KT10-230 Power Supply 230 Vac ON/OFF DOOR SAFETY SYPHON Fig. 31. Wiring diagram models KT10-230 924KTE4.01 - KT series humidifiers | 35 | 05/2021...
  • Page 36: Models Kt10-400 / Kt20-400

    12.4 Models KT10-400 / KT20-400 Power Supply 400 Vac ON/OFF DOOR SAFETY SYPHON Fig. 32. Wiring diagram models KT10-400 / KT20-400 924KTE4.01 - KT series humidifiers | 36 | 05/2021...
  • Page 37: Models Kt20-230

    12.5 Models KT20-230 Power Supply 230 Vac ON/OFF DOOR SAFETY SYPHON Fig. 33. Wiring diagram models KT20-230 924KTE4.01 - KT series humidifiers | 37 | 05/2021...
  • Page 38: Models Kt30-400

    12.6 Models KT30-400 Power Supply 400 Vac DOOR SAFETY ON/OFF SYPHON Fig. 34. Wiring diagram models KT30-400 924KTE4.01 - KT series humidifiers |38| 05/2021...
  • Page 39: Models Kt40-400 / Kt60-400

    12.7 Models KT40-400 / KT60-400 Power Supply 400 Vac ON/OFF DOOR SAFETY SYPHON Fig. 35. Wiring diagram models KT40-400 / KT60-400 924KTE4.01 - KT series humidifiers |39| 05/2021...
  • Page 40 The customer (manufacturer, installer or end user) assumes all responsibility for the configuration of the device. ELSTEAM accepts no liability for any possible errors in this document and reserves the right to make any changes at any time without prejudice to the essential functional and safety features of the equipment.
