- Page 1 Ionizing Air Blower Aerostat ® User’s Manual...
- Page 2 Simco-Ion Technology Group is a division of Illinois Tool Works (ITW), located in Alameda, California. For more information about Simco-Ion visit www.simco-ion.com (Technology Group) or call +1 800-367-2452. Simco-Ion is ISO 9001-2008 Certified.
- Page 3 Important Safety Information Carefully read the following safety information before installing or operating the equipment. Failure to follow these safety warnings could result in damage to your ionization system and/or voiding the product warranty. This unit is supplied with a 3-prong grounding plug, which must be inserted in an appropriate, properly wired, and grounded receptacle.
- Page 4 Informations de Sécurité Importantes Lisez attentivement les consignes de sécurité suivantes avant d'installer ou d'utiliser l'équipement. Le non-respect de ces avertissements peut entraîner des dommages à votre système d'ionisation et/ou d'annuler la garantie du produit. Cette unité est fournie avec un 3-broches fiche de mise à la terre, qui doit être insérée dans un approprié, correctement câblé...
-
Page 5: Table Of Contents
Contents 1 Description ................1 1.1 Aerostat® XC Ionizing Air Blower ............2 1.2 Aerostat XC Identification ................ 4 2 Installation ................5 2.1 Unpacking ....................6 2.2 Location ....................7 2.3 Electrical ....................8 3 Operation ................9 3.1 Controls & Indicators................10 4 Maintenance .............. -
Page 6: Description
Description 1.1 Aerostat® XC Ionizing Air Blower 1.2 Aerostat XC Identification Aerostat XC Heater 5100550-M Rev 7... -
Page 7: Aerostat® Xc Ionizing Air Blower

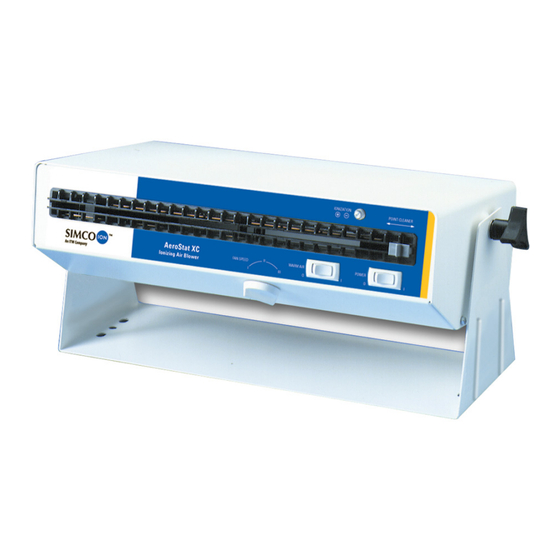

1.1 Aerostat XC Ionizing Air Blower ® Simco-Ion's Aerostat XC was designed for use with sensitive electronic components where electrostatic discharge (ESD) is a problem. It can be applied in inspection, testing, and assembly environments. The Aerostat XC can also be used where static electricity causes problems such as attraction of dirt to product, misalignment of small parts due to electrostatic "jumping", and undesirable adhesion of plastic films due to electrostatic charge. - Page 8 The high voltage AC is applied to a row of stainless steel emitter pins, which results in an intense alternating electric field at the tip of the emitters. It is this intense electric field that introduces alternating polarity ions into the air flow. The shaped air flow exiting the Aerostat XC carries these ions over a broad area for control of electrostatic charge.
-
Page 9: Aerostat Xc Identification
1.2 Aerostat XC Identification Figure 2. Aerostat XC Identification Aerostat XC Heater 5100550-M Rev 7... -
Page 10: Installation
Installation 2.1 Unpacking 2.2 Location 2.3 Electrical Aerostat XC Heater 5100550-M Rev 7... -
Page 11: Unpacking
2.1 Unpacking Carefully remove the equipment from the carton and inspect all contents. Empty the carton to insure that small parts are not discarded. If any damage has occurred during the shipment, notify the local carrier immediately. A report should also be forwarded to Simco-Ion Technology Group email address at salesservices@simco-ion.com. -
Page 12: Location
2.2 Location The Aerostat XC is designed for free or fixed position operation on a table top or work bench surface. Each unit includes an adjustable, skid resistant stand intended for placement onto the selected surface. Holes in the base of the stand are provided for securing the unit in a fixed location using 5/16 diameter screw hardware (not provided). -
Page 13: Electrical
2.3 Electrical Depending on the ordering part number, the Aerostat XC requires the following electrical power for proper operation. Part Number Voltage Power Cord 4002612 120 VAC/60 Hz North America 4002667 230 VAC/50 Hz EUR (Schuko) 4009044 230 VAC/50 Hz 4015593 230 VAC/50Hz China... -
Page 14: Operation
Operation 3.1 Controls & Indicators Aerostat XC Heater 5100550-M Rev 7... -
Page 15: Controls & Indicators
3.1 Controls & Indicators Activate the XC by setting the POWER switch to the ON position. The ionization indicator will illuminate to indicate the presence of ionized air. Set the air flow as desired by adjusting the FAN SPEED to low ( I ), medium ( I I ), or high ( I I I ). If warm air is desired for operator comfort, set the HEATER switch to the ON (I) position. - Page 16 When using the Aerostat XC in an electronics assembly area, the ionized air stream should cover as much of the work area as possible. The constant flow of ionized air will prevent items such as work surfaces, tools, materials and components from developing a static charge.
-
Page 17: Maintenance
Maintenance 4.1 Cleaning & Adjustments 4.2 Emitter Cleaning 4.3 Air Inlet & Outlet Cleaning 4.4 Optional Air Filter Cleaning 4.5 Ion Output Check 4.6 Ion Balance Check 4.7 Calibration Aerostat XC Heater 5100550-M Rev 7... -
Page 18: Cleaning & Adjustments
4.1 Cleaning & Adjustments The Aerostat XC has been designed with low maintenance in mind. The only regular maintenance suggested is emitter point cleaning, ion balance checking and ion output checking. Emitter point cleaning takes only seconds with Simco-Ion's built-in point cleaner. The Aerostat XC contains a balancing circuit that is inherently self balancing. -
Page 19: Emitter Cleaning
4.2 Emitter Cleaning To clean the ion emitters, simply sweep the emitter cleaner back and forth once across the ionized air outlet. Recommended frequency of cleaning is once a week. Aerostat XC Heater 5100550-M Rev 7... -
Page 20: Air Inlet & Outlet Cleaning
4.3 Air Inlet & Outlet Cleaning The air inlet grille on the rear of the unit and the ionized air outlet should remain clean to prevent restriction of air flow. They can be cleaned with a soft brush or vacuum. Aerostat XC Heater 5100550-M Rev 7... -
Page 21: Optional Air Filter Cleaning
4.4 Optional Air Filter Cleaning Remove the air filter from the rear of the unit by sliding the aluminum frame of the filter towards the rear of the unit. Rinse the filter in plain water while gently squeezing. If the dirt is stubborn, wash the filter in mild soap and water then rinse. -
Page 22: Ion Output Check
4.5 Ion Output Check To test the unit for ion output, the use of a charge plate monitor is recommended. Discharge times can be measured and checked against the Discharge Specification in Section 5. If a charge plate monitor is not available, but a static meter such as a Simco-Ion handheld electrostatic fieldmeter is available, ion output may be checked with the following procedure. -
Page 23: Ion Balance Check
4.6 Ion Balance Check To test the unit for ion balance, the use of a charge plate monitor is recommended. Offset voltage should be measured and checked against the Balance Specification in Section 5. If a charge plate monitor is not available you may use a Simco-Ion brand electrostatic fieldmeter equipped with a removable test plate. -
Page 24: Calibration
4.7 Calibration The Aerostat XC's ion output is inherently balanced by design, so there are no calibration adjustments. If after checking the ion balance as outlined above, an unbalance or offset voltage exists in excess of 0±5 volts, contact Simco-Ion Technical Support at 510- 217-0470 or email techsupport@simco-ion.com. -
Page 25: Specifications
Specifications 5.1 Specifications 5.2 Parts & Accessories 5.3 Dimensional Drawing Aerostat XC Heater 5100550-M Rev 7... - Page 26 5.1 Specifications 120 VAC, 60 Hz, 0.6-3.6A (heater on) Input Voltage 230 VAC, 50 Hz, 0.3-1.8A (heater off) Discharge* 1 ft 2 ft 3 ft 4 ft Fan High 5/1.5 5.5/2.5 6.5/4 8.5/5.5 12”/Center Fan Medium 6/1.7 7/3.5 11/7 12”/Center Fan Low 10/7 12/9...
- Page 27 5.2 Parts & Accessories Part No. Description 4343230 Chassis 4108398 Lid Assembly 4710066 3-Speed Blower, 120 VAC 4710077 3-Speed Blower, 230 VAC 4108537 HV Transformer with Leads, 100 VAC 4108538 HV Transformer with Leads, 120 VAC 4108540 HV Transformer with Leads, 230 VAC 4103939 Ionizer Duct Assembly, 120 VAC (with Heater) 4104036...
- Page 28 4610699 Illuminated Rocker Switch, 120 VAC 4610729 Illuminated Rocker Switch, 230 VAC 4610700 3-Position Rotary Switch and Knob 4670063 Lock Knob (2 required per unit) 4103942 Stand Assembly 5050282 Pedestal Mount (includes hardware) 5051321 Air Filter Kit (includes filter, mounting brackets, hardware) 4470059 Air Filter 4104354...
- Page 29 5.3 Dimensional Drawing Aerostat XC Heater 5100550-M Rev 7...
-
Page 30: Warranty & Service
Warranty & Service Simco-Ion provides a limited warranty for the Aerostat XC Ionizing Blower. New products manufactured or sold by Simco-Ion are guaranteed to be free from defects in material or manufacture for a period of two (2) years from date of initial shipment. Simco-Ion liability under its new product warranty is limited to servicing (evaluating, repairing, or replacing) any unit returned to Simco-Ion that has not been subjected to misuse, neglect, lack of routine... - Page 31 Technology Group 1141 Harbor Bay Pkwy, Ste 201 Alameda, CA USA 94502 Toll free: +1 800-367-2452 Sales services: +1 510-217-0460 Tech support: +1 510-217-0470 Fax: +1 510-217-0484 salesservices@simco-ion.com techsupport@simco-ion.com www.simco-ion.com Aerostat XC Heater 5100550-M Rev 7...
