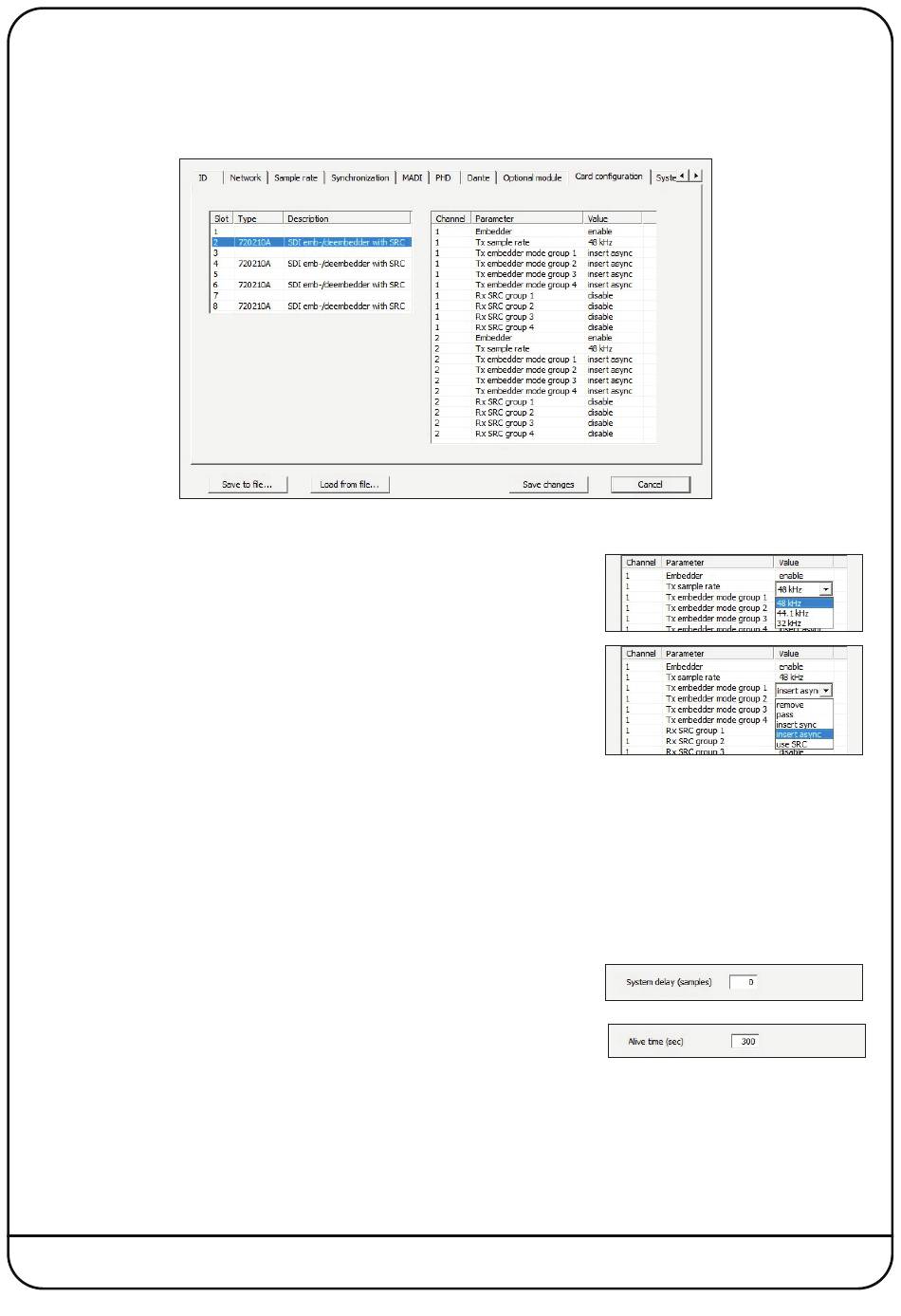

Card Configuration

This settings tab provides the configuration control for each of the four, 2-channel SDI interface cards.
The left window is used to select the interface pairs and changes are made in the value column of the right window.
Double-click in the appropriate field to alter settings.
➭ Embedder – Each channel can be enabled or disabled.
➭ TX Sample Rate can be set to 48kHz, 44.1kHz or 32kHz.
➭ Tx Embedder Mode Group 1–4 controls the signal parameters for each group
through the card:
• Remove – Drops the audio completely
• Pass – Disables the embedder for that group
• Insert Sync – Use when Audio and Video references are synchronous
• Insert Async – Use when Audio and Video references have the same
sample rate but are asynchronous
• Use SRC – Transmitter SRC can be enabled or disabled for each of the
audio groups
➭ Rx SRC Group 1–4 – Receive Sample rate conversion can be enabled or
disabled for each of the audio groups.

System Delay

Not currently implemented.

Alive Time

Not currently implemented.
Page 14 SDI – User Guide
