Other Settings; Network - Solid State Logic SSL SDI User Manual

Individual (Mono) Route Selection
O S
THer eTTINGS
Other settings on specific SDI units are accessed via the
window. Each of the tabs is described in the following section.
Configuration changes can be saved from any of the page tabs.
Note that saving any changes will require a restart of the unit.
ID
➭ Name – A text field available for naming individual units. The name will be
displayed in the Device Selection pane of SDI Manager.
➭ ID can be set for user identification of units which have the same name.

Network

A repeat of the information shown in the "Change Network Settings..." pop-up
but including the MAC address.
SDI – User Guide

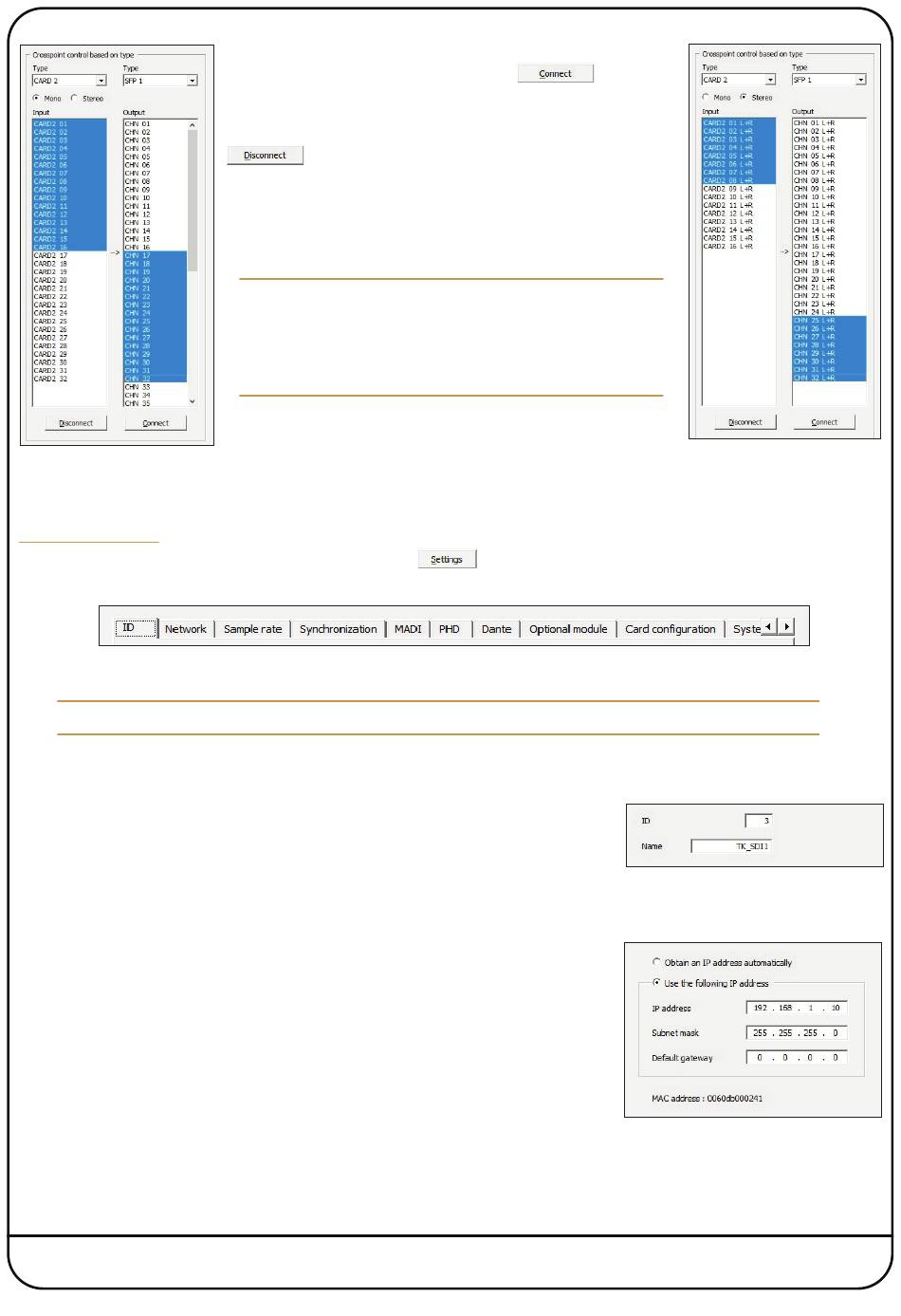

Routes are connected by highlighting sources and destinations
in their respective columns and clicking
The selected routes will now be added to the existing routes
shown in the crosspoint status window.
can also be used in this pane of the software to
remove routes based on the destination(s) selected.
When stereo signals are available in adjacent odd/even pairs,
these may be routed together by selecting the Stereo button
below the card type selector.
It is possible to perform one-to-many routing (i.e.
distribution) or simultaneous one-to-one routing. If a
differing number of sources or destination is selected then
the number of routes made will be equal to the lower number
of I/O selected in either column.
.
button at the lower centre of the left pane in the software
Stereo Route Selection
