Phd; Dante; Optional Module (Madi Sfp Fibre) - Solid State Logic SSL SDI User Manual

PHD

For future use.

Dante

It is recommended that these settings are managed using the Dante controller application only and not via SDI Manager.
The information relating to the interface is included for clarity. See page16 for information relating to Dante Controller.

Optional Module (MADI SFP Fibre)

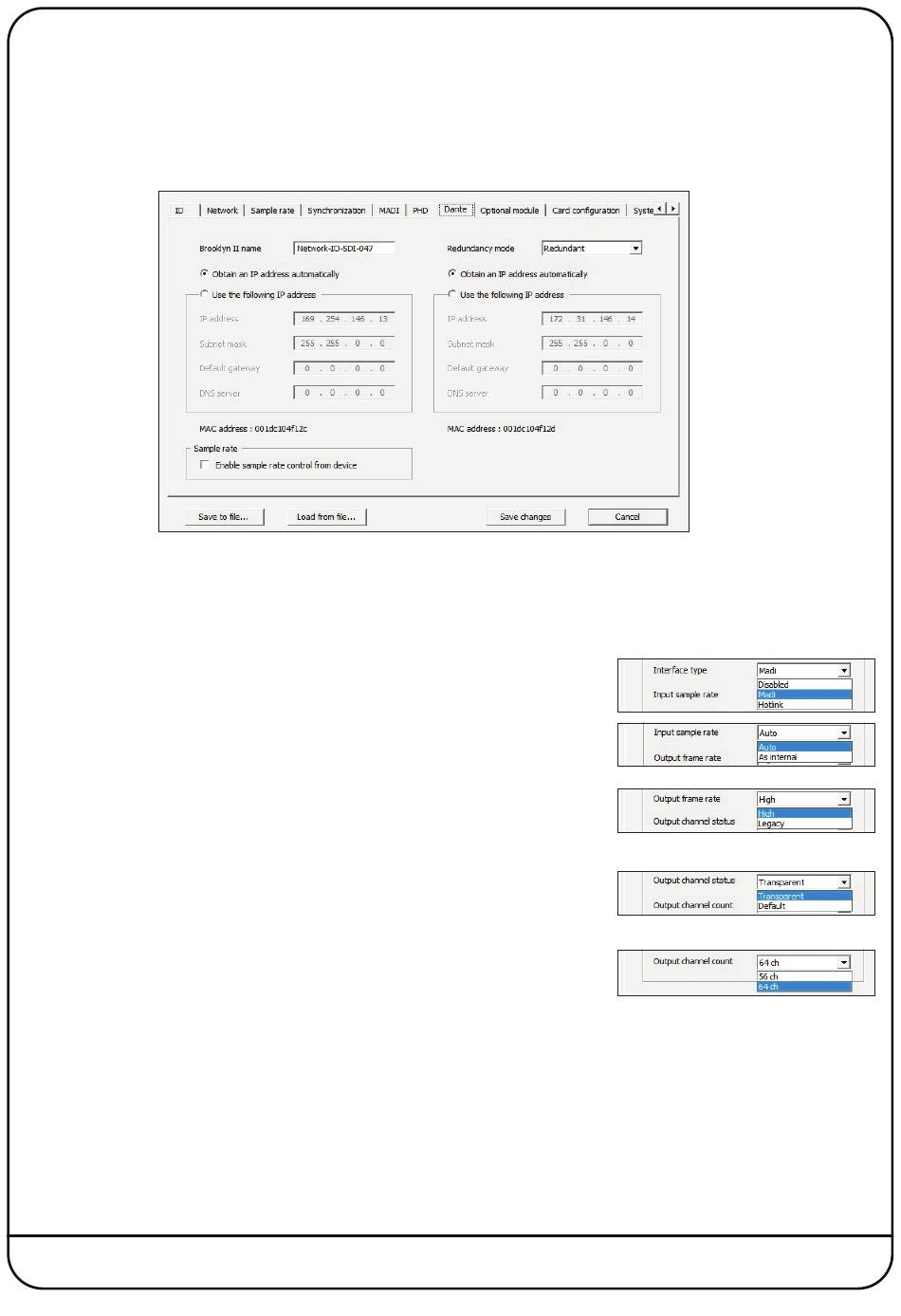

Each of the SFP fibre MADI interfaces, SFP 1 and SFP 2, has its own settings pane.
➭ Interface Type should be set to Madi – hotlink is not supported.
➭ Input Sample Rate can be determined automatically from the incoming
signal or locked to the internal clock.
➭ Output Frame Rate sets the frame rate of the MADI signal (for use at 96kHz):
• High – 96kHz framing pattern
• Legacy – 48kHz framing pattern
➭ Output Channel Status controls user-bit data handling:
• Transparent – Provides pass-through of user bits
• Default – Removes user bits
➭ Output Channel Count – Select 56- or 64-channels.
SDI – User Guide Page 13
