Summary of Contents for uAvionix ping200XR

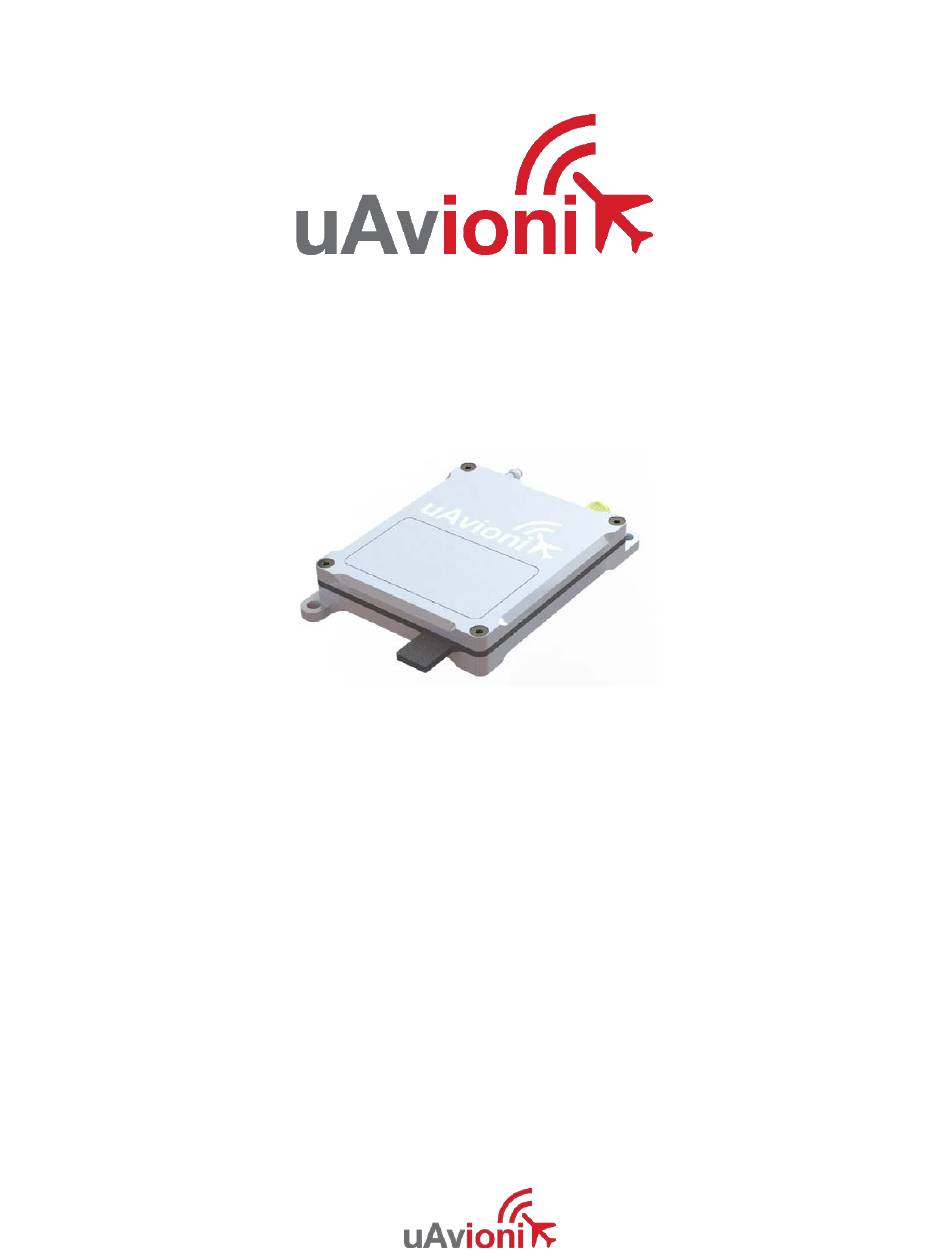

- Page 1 User and Installation Guide UAV-1004178-001 Rev A ECCN 7A994 Page 1 | 28...
- Page 2 retained.
-
Page 3: Revision History
1 Revision History Revision Date Comments 5/14/2020 Initial Release UAV-1004178-001 Rev A ECCN 7A994 Page 3 | 28... -
Page 4: Warnings / Disclaimers
2 Warnings / Disclaimers All device operational procedures must be learned on the ground. uAvionix is not liable for damages arising from the use or misuse of this product. This equipment has received a FAA transmit license for manned aircraft and a license for unmanned aircraft operating above 500ft AGL. -
Page 5: Limited Warranty
For the duration of the warranty period, uAvionix, at its sole option, will repair or replace any product which fails in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost. -
Page 6: Table Of Contents
4 Contents Revision History ................... 3 Warnings / Disclaimers ................ 4 Limited Warranty .................. 5 Contents ....................6 System Information ................8 Certification Applicability ............... 8 TSO Performance ................. 8 Applicable P/Ns ................9 System Functions ................. 9 Intended TSO Deviations .............. 9 FCC ID .................. - Page 7 Connections ................19 Wiring Diagram ................19 Cooling Requirements ..............20 Antenna Installation ..............20 Configuration ..................22 ICAO Address ................24 Aircraft Maximum Speed ............. 24 Aircraft Stall Speed ..............24 Aircraft Length / Width ..............24 Aircraft Registration ..............25 GPS Antenna Lateral / Longitudinal Offset ........
-
Page 8: System Information
5.1 Certification Applicability This installation manual provides mechanical and electrical information necessary to install ping200XR. It is not equivalent to a regulator approved, airframe-specific maintenance manual, installation design drawing, or installation data package. The content of this manual assumes use by... -
Page 9: Applicable P/Ns
Altitude Encoder 5.5 Intended TSO Deviations The following deviations from TSO requirements, on this non-TSO device, are noted. These deviations will be applied for on the TSO-certified ping200XR. Deviation C112e From TSO-C112e paragraphs 3.e and 6.f to use DO-178C instead of DO-178B C112e Anticipating DO-181F for a Level 2 “Basic Transponder”, UM... -
Page 10: Fcc Id
C145e From TSO-C145e Paragraph 3.g to use RTCA/DO-160G in place of RTCA/DO-160E. TSO-C145e Class Beta 1 functionality is incomplete. ping200XR does not implement LNAV approach mode, instead operating in En Route/Terminal mode only, as appropriate for ADS-B Out applications. 5.6 FCC ID... -
Page 11: Device Marking
5.7 Device Marking 5.8 Environmental Qualification Form Conditions 160G Description of Conducted Tests Temperature and Altitude Equipment tested to Category B2 Low temperature ground survival 4.5.1 -55°C Low Temperature Short-Time 4.5.1 -45°C Operating Low Temperature Operating 4.5.2 -45°C High Temperature Operating 4.5.4 +70°C High Temperature Short-Time... -
Page 12: Continued Airworthiness
Equipment identified as Category X – no test 5.9 Continued Airworthiness Maintenance of the ping200XR is "on condition" only. For regulatory periodic functional checks, refer to the approved aircraft maintenance manuals or manual supplements. The aircraft must be returned to service in a means acceptable to the appropriate aviation authority. -
Page 13: System Specifications
6 System Specifications ping200XR is a Mode S, Level 2els, Class 1 transponder with support for ADS-B extended squitter, elementary surveillance and SI codes. The ping200XR has a nominal power output of 250W and meets the power output requirements for Class 1. The ADS-B function meets DO-260B class B1S. -
Page 14: Nano Control Head
Note 1: Inrush and internal short-circuit protection is internally current limited to 1A. Note 2: Reply Transmission Peak Current Mode Incremental Peak Recovery Current @ 14V ATCRBS “7777” Reply 70mA 65us Mode S Short 312mA 5.7ms Mode S Long 312mA 9.4ms 1090ES DF17 312mA... - Page 15 UAV-1004178-001 Rev A ECCN 7A994 Page 15 | 28...
-
Page 16: Nano Control Head Operation
6.2.1 nano Control Head Operation STBY Standby and Programming Mode MODE ADS-B and Mode S Active, altitude (Mode C) reporting disabled ADS-B and Mode S Active, altitude reporting enabled ADSB Mode S disabled, ADS-B active (Development Only) Mode S Activity Flashing –... -
Page 17: Interfaces
6.3 Interfaces The ping200XR has a single SMA antenna connection and a 4-wire power and data interface. A MMCX connection provides connectivity to an external GPS antenna, and the baro port provides connection to the pitot- static system if available. -
Page 18: Installation
7.3 Mounting The ping200XR is designed to be mounted in any convenient location in the cockpit, the cabin, or an avionics bay. The following installation procedure should be followed, taking care to allow adequate space for installation of cables and connectors. -
Page 19: Connections
Powering the transponder without an attached load will result in damage to the device not covered under warranty. 7.5 Wiring Diagram Control Input CONTROL and CONFIGURATION (Control Head or Autopilot) ANTENNA Ping200XR ping200XR POWER (9-30.3V) ANTENNA Control Interface Type Physical Rate Black... -
Page 20: Cooling Requirements
7.6 Cooling Requirements ping200XR is designed to meet all applicable TSO requirements without forced-air cooling. Attention should, however, be given to the incorporation of cooling provisions to limit the maximum operating temperature if ping200XR is installed in close proximity to other avionics. The reliability of equipment operating in close proximity in an avionics bay can be degraded if adequate cooling is not provided. - Page 21 • Where practical, plan the antenna location to keep the cable lengths as short as possible and avoid sharp bends in the cable to minimize the Voltage Standing Wave Ratio (VSWR) (i.e. Return Loss). • Electrical connection to the antenna should be protected to avoid loss of efficiency due to exposure to liquids and moisture.
-
Page 22: Configuration
8 Configuration The transponder system should be configured during initial system installation. The configuration items list below should be used to document the system installation for future reference. The following parameters are permanently stored in the ping200XR. Configuration Item Default Configured... - Page 23 Connect the ping200XR to a PC running the Configuration and Control application via the USB COM port adapter. CONFIGURATION Adapter ANTENNA Ping200X ping200XR POWER (9-30.3V) ANTENNA Make sure that the COM settings on the control tab match the serial port...
-
Page 24: Icao Address
These addresses are usually written as a 6-digit hexadecimal number, although you may also encounter one written as an 8-digit octal number. The ping200XR understands the hexadecimal format. An octal number must be converted to hexadecimal format before entering. -
Page 25: Aircraft Registration
8.5 Aircraft Registration The Aircraft Registration can be up to an 8 alpha-numeric code that corresponds to the tail number of the aircraft. (0-9, A-F). Note: This is typically your aircraft N-number, unless otherwise advised by the FAA or ATC. 8.6 GPS Antenna Lateral / Longitudinal Offset The GPS antenna offset is used in conjunction with the length and width to manage taxiway conflicts. -
Page 26: Ads-B In Capability
1090MHz ADS-B receiver, a UAT ADS-B receiver, or both. This data is used to transmit ADS-R or TIS-B broadcasts to your aircraft if conditions indicate. ping200XR does not include an ADS- B receiver. Only select these items if you have a separate ADS-B receiver on-board. -
Page 27: Baro Altitude Resolution
8.14 Baro Altitude Resolution The baro altitude resolution default is 25 (ft). 8.15 In / Out Protocols The default In/Out protocols are UCP. 8.16 Control The Control tab allows the installer to exercise and verify the transponder’s operation. UAV-1004178-001 Rev A ECCN 7A994 Page 27 | 28... -
Page 28: Post Installation Checks
STEP CHECK Launch the PC Ping20XSControl application Set Port to the USB or serial port connected to the ping200XR Set the App Baud to 57600 Set Protocol to UCP Connect the Antenna Apply power from a minimum of a 11V, 1A power source Confirm that the Green LED comes on after power-up ‘Pkts:’...
