4.7 W&M Calibration
Weights and Measures (W&M) approved Multi Scan NXA83B are required to display the
approval status of all parameters displayed on screen. Data for tanks that are not approved
will be displayed with a '#' symbol.
The W&M Calibration screens allows tanks to be marked as approved and also to mark the
individual parameters on those tanks. These parameters comprise:
• Product Level
• Product Temperature
• Water Level
• Density
• Vapour Pressure
• Vapour Temperature
The W&M Calibration screens are available as part of the Multi Scan NXA83B Configurator,
via the menu option Configuration → W&M Calibrate.

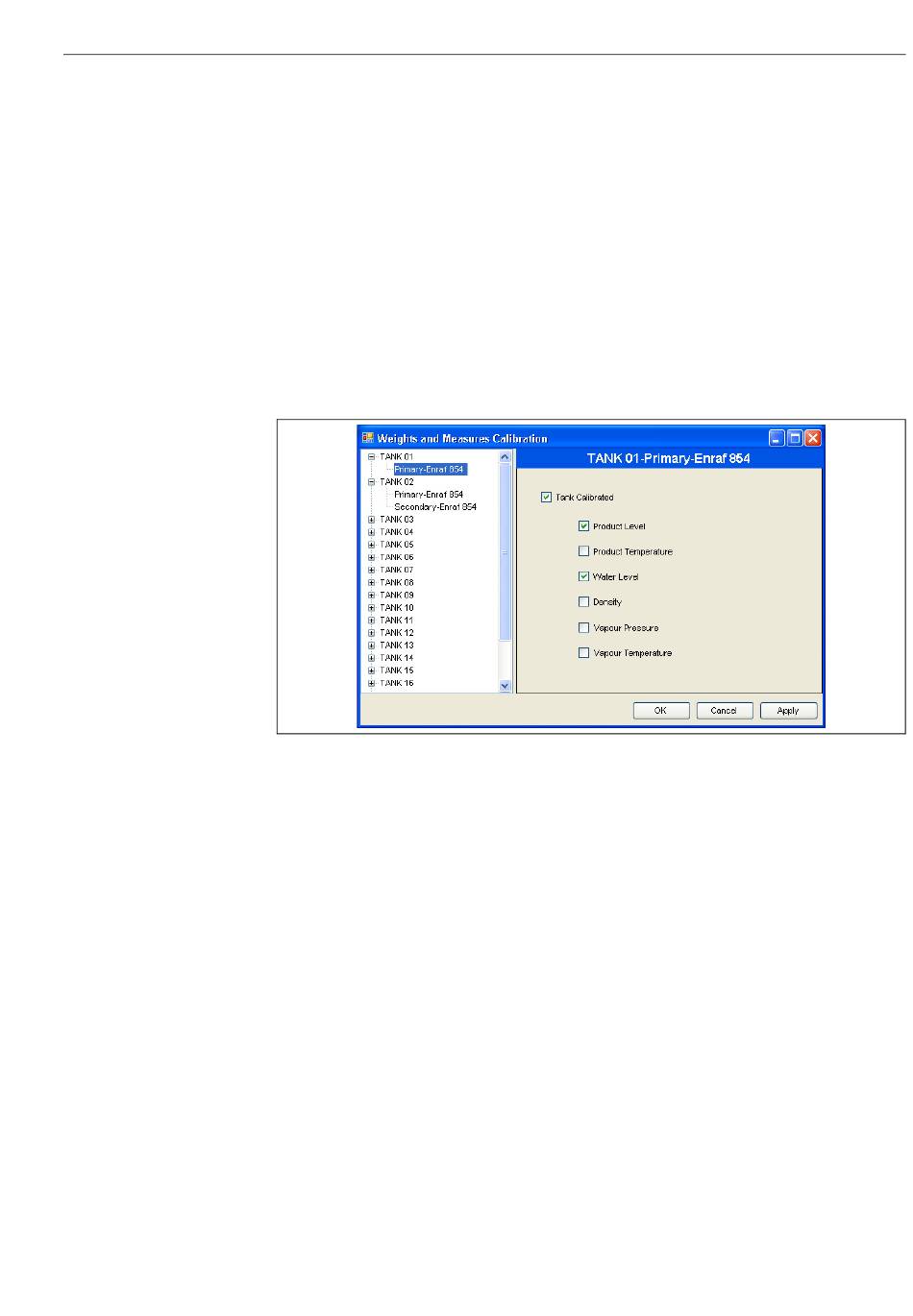

In order to adjust the calibration status of a gauge, it must first be selected. Choose the tank
containing the Gauge from the list on the left of the screen. Expand the tank and choose the
gauge from those available. The individual calibration status boxes will be grayed out and
marked as not calibrated (unticked) until the Tank Calibrated field is ticked. Once the Tank
Calibrated field is ticked the individual parameters may be ticked to show their calibration
status.
