Endress+Hauser Tankvision Multi Scan NXA83B Operating Instructions Manual page 12

W&M Functionality
12
1

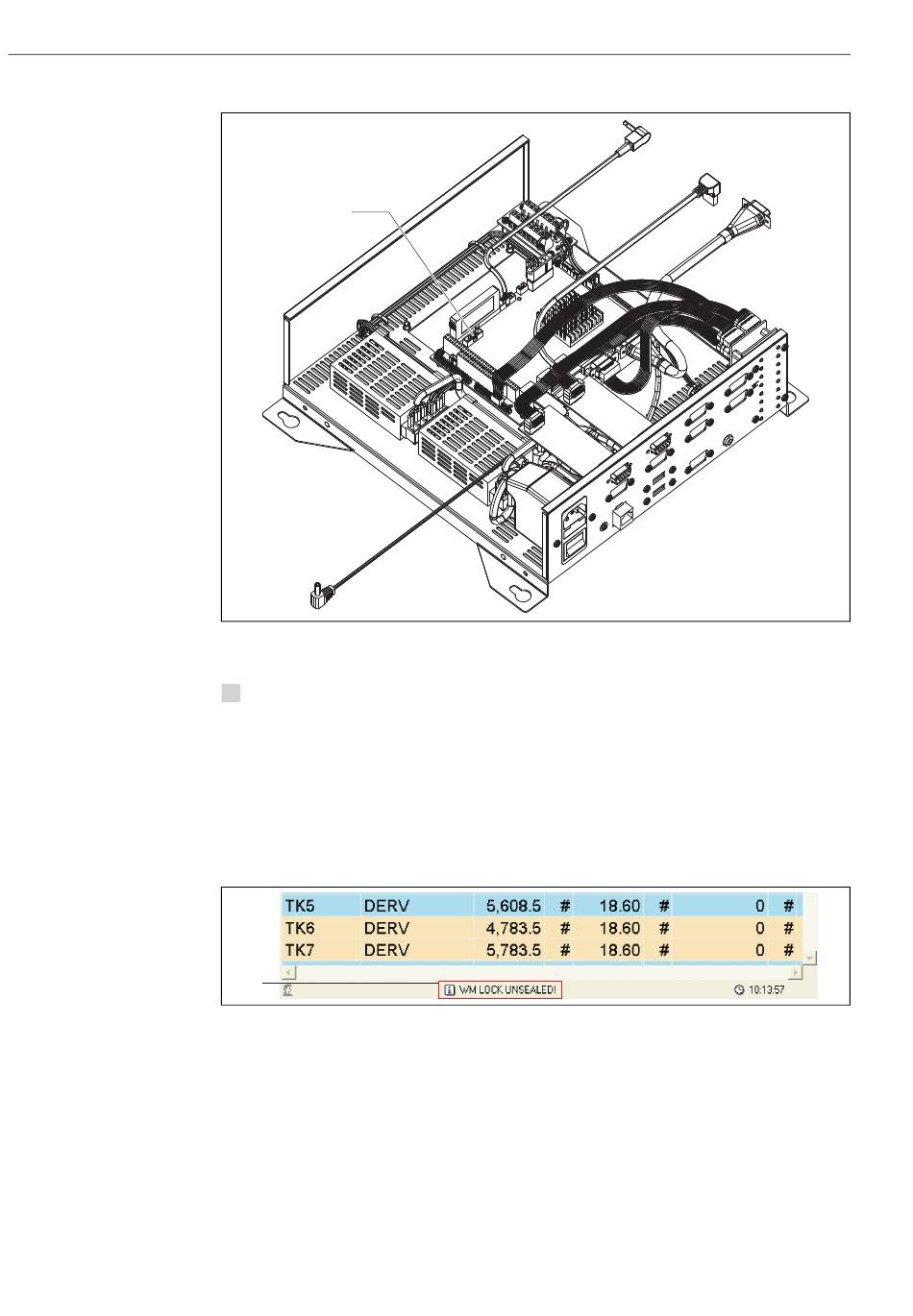

1 W&M Lock, CN14
Reboot the system.
4.
The system will remain locked for approximately 1 minute following the reboot. After this
time all of the standard configuration activities may be carried out, such as downloading a
modified database from a configurator PC. However the USB ports will not recognize a
mouse or keyboard even if unlocked.
The tankgauging display on the NXA83B will show a message at the bottom of the screen,
to indicate the lock has been removed and the system is no longer W&M approved.
1
1 Indicator: W&M Lock unsealed
Tankvision Multi Scan NXA83B
NXA83_Wall-Mount_CN14
NXA83_Grid-View_WM-Lock-Unsealed
Endress+Hauser
