Weights and measures additions

Hide thumbs Also See for Tankvision Multi Scan NXA83B:

Table of Contents

W&M Functionality

4.4

Rear access panel

There is a removable panel on the underside of the Multi Scan NXA83B, which is used to

gain access to the underside of the LX2 motherboard so that the internal flash memory drive

may be replaced.

This is not an operation that should normally be required, therefore this panel should be

locked at the time of commissioning. It does not need to be unlocked to carry out any

database modifications etc.

The rear panel will be fixed with four screws capable of being lockwired.

To lock the panel, insert a lockwire through the four screws and apply a seal to the lockwire.

If access is required to the rear of the LX2 motherboard remove the seal and remove the

panel, but once finished the seal should be re-applied.

Tankvision Multi Scan NXA83B

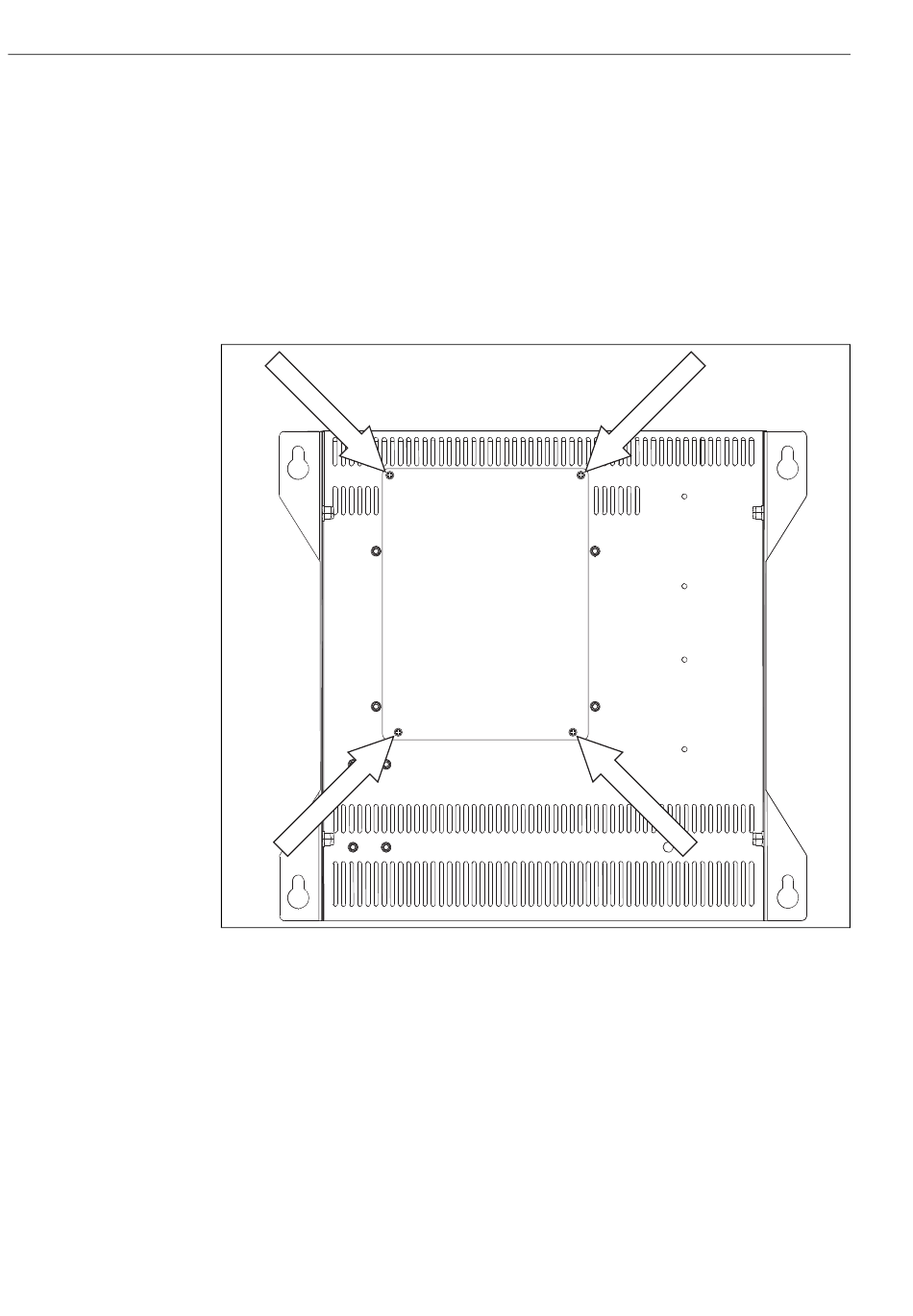

NXA83_WallMount_Rear-Access-Cover
